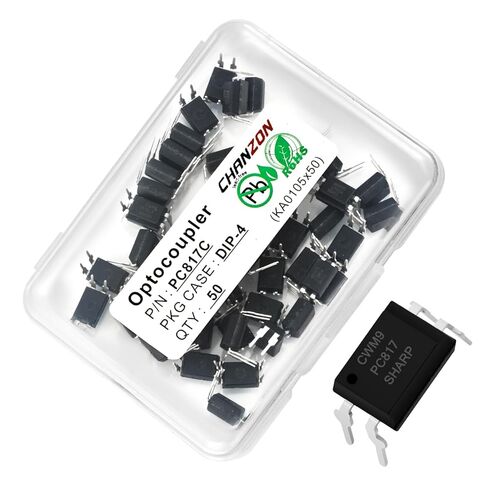

Chanzon 50pcs PC817 Optocoupler PC817C DIP Installation DIP-4 50%-600% Transfer Ratio 4pin Optocouple Compatible with EL817C/LTV817C/FL817C/el817 Optical Isolator

KWD 3.500
Brand
CHANZON
Weight
18 g
– 1 +

Special Features

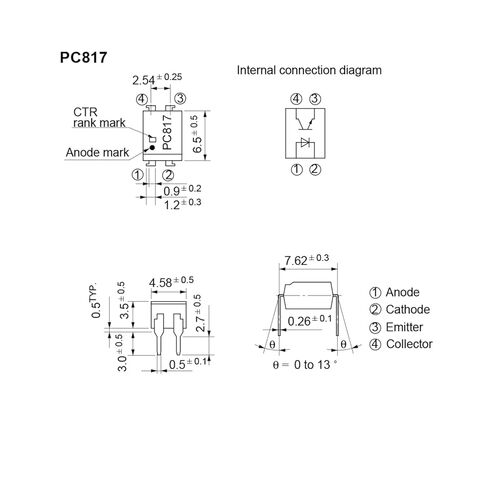

  • Spec: 1-channel type, Transfer Ratio CTR Min.CTR 50% Max 600% (IF = 5mA, V = 5V),Isoration Voltage: 5000Vrms, Please see pic3-pic5 for detail parameters.
  • Number of Pins: 4 pin(dip-4), Through Hole
  • Package quantity: 50 pieces, packed in a durable and resealable plastic bag.
  • Compatible with: EL817C/LTV817C/FL817C Optocouplers
  • Used for: Opto isolator breakout circuit board, breadboard,arduino DIY, coupler replacement.

Description

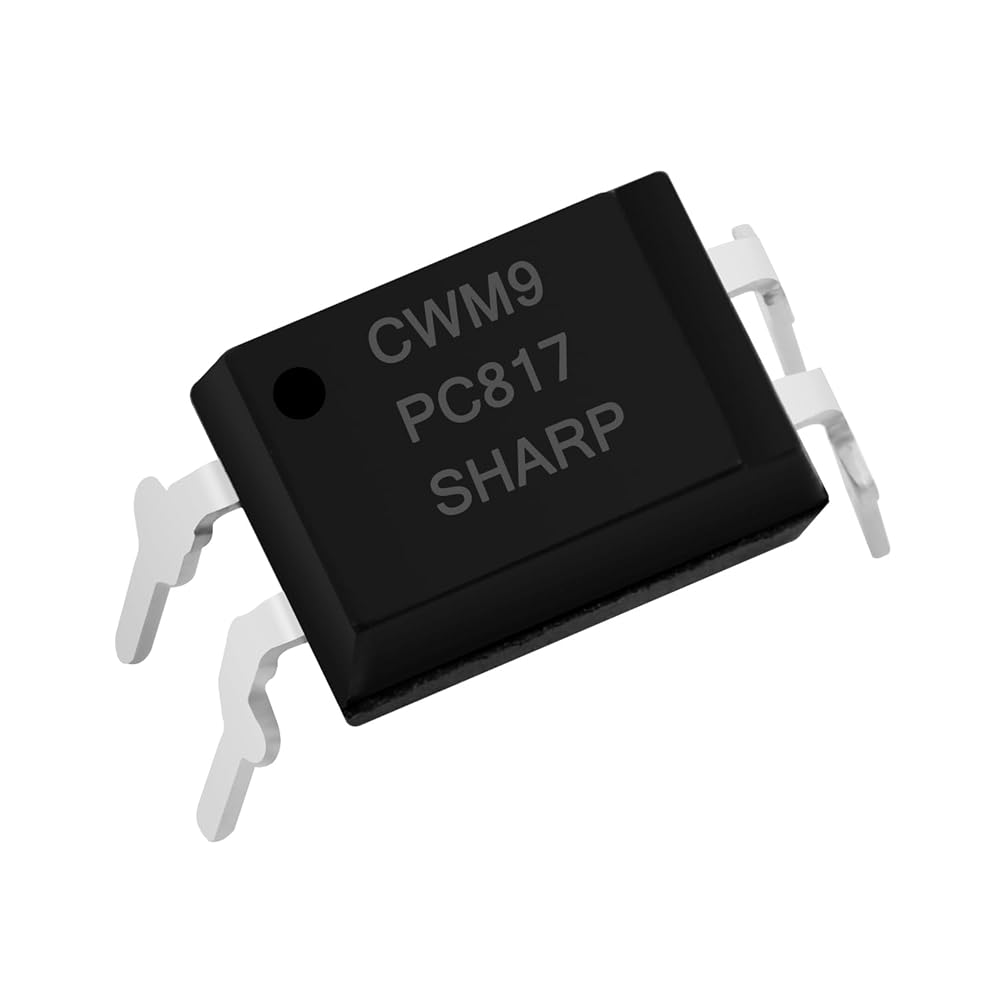

PC817: Single-channel compact dual in-line package photocoupler
Current transmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V);
high isolation voltage between input and output is 5000V effective value.
Forward current (ICEO): 50mA
Forward peak current (ICE max) :1A
Reverse voltage :6V
Power consumption: 70mW
Collector emitter voltage :35V
Emitter collector voltage: 6V
Collector current: 50mA
Collector power consumption: 150mW
Total power consumption: 200mW
Working temperature: -30℃~+100℃
Collector emitter saturation voltage: 0.1V (typical value)
