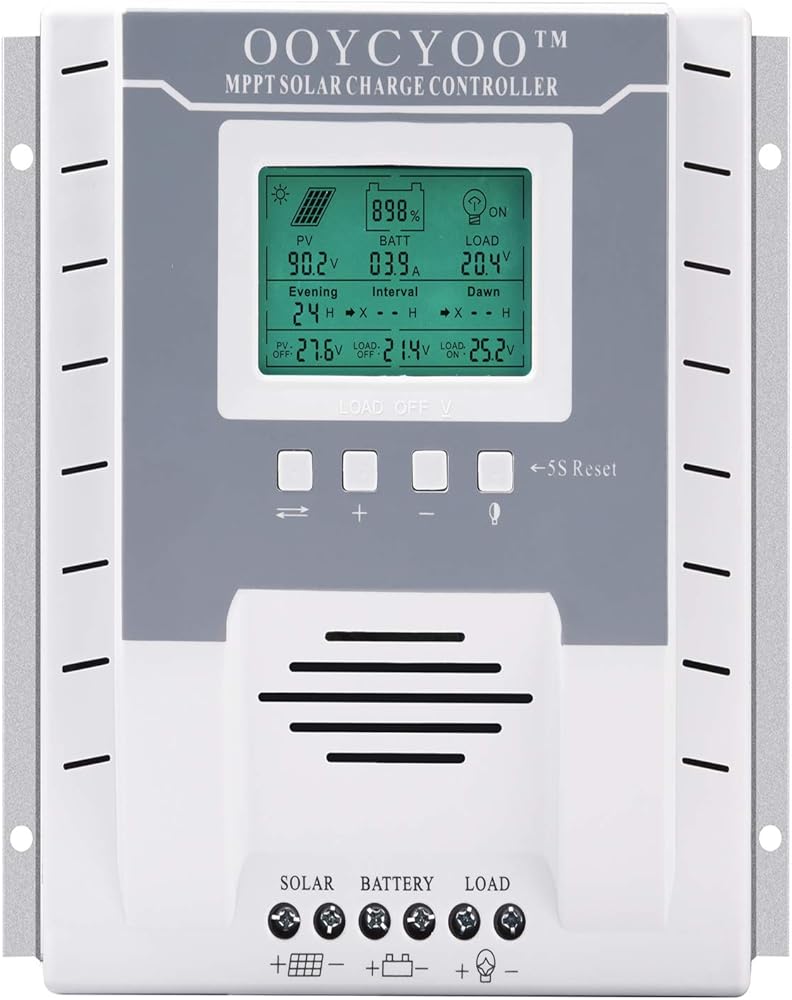

This is a MPPT solar charge and discharge controller;
the charging efficiency is 15%-25% higher than that of ordinary ordinary solar controllers;
the MCU precisely controls the MOSFET switch to control the battery charge and discharge, effectively extending the battery life;

Product parameters
Rated charge current:100A
12V battery system:open circuit voltage ≤48V(Voc) maximum. PV input power:1300W
24V battery system:Open circuit voltage ≤96V(Voc) maximum.PV input power:2600W
System nominal voltage :12V/24VDC Auto identifying
Battery voltage range: 12V/24V
Max.PV open circuit voltage:96VDC
Power terminal:8AWG

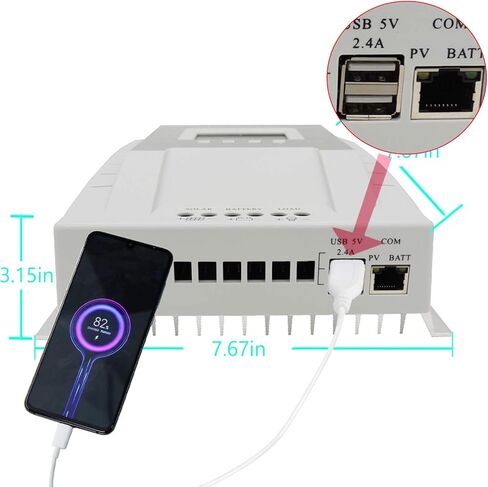

Dimensions:11.8 * 7.87 * 3.95 (in)
Weight: 5.6lb

Warm Tips:
Battery must be connected first !
Never connect the solar panel array to the controller Without/Before a Battery.
Never connect any inverter/ wind/ Alternator/ Charger into the charge controller!
Ensure the battery voltage is enough.(>9V)
Never exceed the max input power/Voltage of your controller.

Package List:
1 x 100A MPPT Solar Charge Controller K100A-new

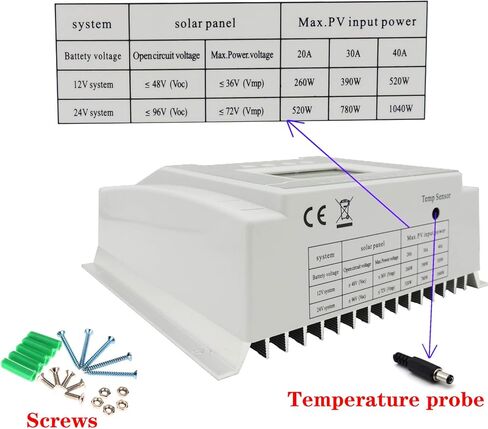

1 x Temperature sensor
1 x User Manual (English)
1 x screw
The solar controller is a professional product. If you have any questions before installation, please email us; we will answer as soon as possible; the professional technical team will guide the installation; worry-free after-sales guarantee，180-day worry-free warranty
