Product Description

Support Esc Types:
FTESC: Flipsky Non VESC ESCs
FSESC: ESCs based on VESC
FOCBOX: FOCBOX UnitySpecification:

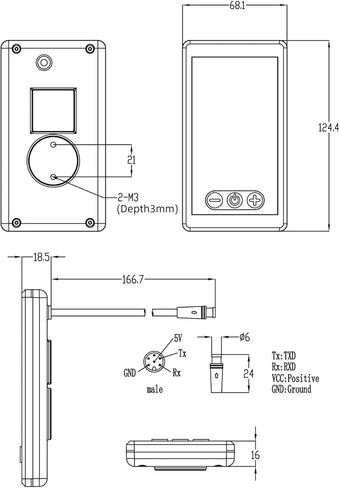

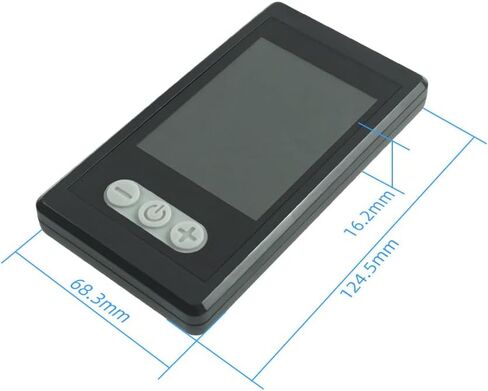

Dimension: L*W*H (mm)124.4*68.1*18.5(mm)
Display Size3.2 “
Display TypeTFT
Display ColorRGB
Display Image Resolution240*320
Voltage/Current5V/500mA
Working Temperature-20℃～+70℃
Storage Temperature-30℃～+70℃
IP RateIP65
Weight116g
Communication ModeUART

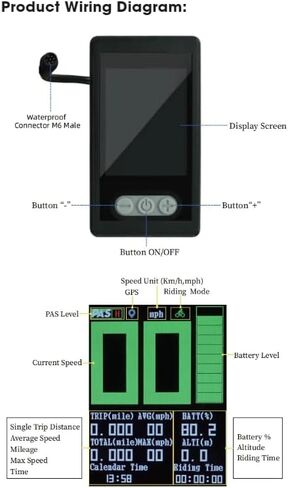

Product Common basic operations:
Gear switch: In the main interface, short press the plus key to switch gears;
Parameter description: The gear switch function is only applicable to the PAS mode of the "FTESC" electronic adjustment type. PAS mode: 0 gear
The speed is zero, and other different gears can control different speeds. The higher the gear, the faster the speed.

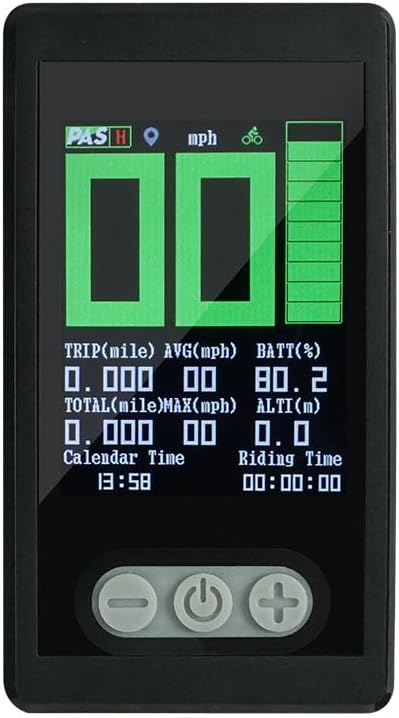

Data display: In the main interface, short press the minus key to enter the All data interface; short press the minus key again to return to the main interface.
Riding mode: In the main interface, double-click the minus key to enter the riding mode; double-click again to end the current riding record.
Riding record: In the main interface, long press the plus key to enter the riding record interface; long press the plus key again to exit;
If you want to clear the riding record, long press the minus key.
Parameter setting: In the main interface, long press the minus key to enter the parameter setting interface; long press the minus key again to return to the main interface
