OSOYOO Nano Board with USB-C and Nano I O Shield,Breakout Board with GPIO Status LED

KWD 8.500
Brand
OSOYOO
Weight
91 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • This kit included a OSOYOO Nano board which has USB-C and a Nano breakout board which provides expanded capabilities and easier connections for your Nano projects. The combination makes it simple to add sensors, servos, and other components, perfect for hands-on robotics and 3D-printed projects.
  • The Nano baord is compatible with Arduono Nano V3.0. It features a USB-C port, providing an up-to-date connection standard that makes it compatible with the latest devices and ensures faster data transfer.It comes with the cable that is included is a USB A to USB C that is approximately 20" in length.
  • The OSOYOO Nano board includes a pre-installed bootloader, allowing you to start coding and testing immediately with the IDE. No additional setup is needed, making it ideal for beginners and advanced users alike.
  • The Nano Breakout Board simplifies wiring with its terminal block design, allowing easy and secure connections without soldering. It also features GPIO status LEDs that provide immediate visual feedback for troubleshooting, making your projects more efficient and user-friendly.
  • The OSOYOO Nano features 14 digital I/O pins (6 with PWM), 6 analog inputs, a 16 MHz crystal oscillator, a USB-C power jack, an ICSP port, a reset button, and a dedicated 3.3V regulator, making it ideal for reliable, high-performance electronics projects when paired with the Nano Breakout Board.

Description

Product Description
This is a great way to connect I/O shield to the OSOYOO Nano for projects you are going to actually use in the real world.

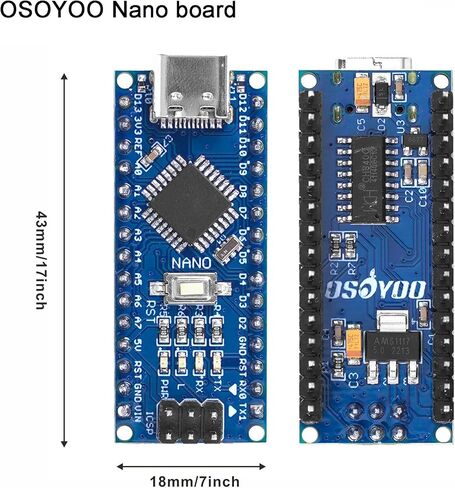

About osoyoo nano board.
Little nano development board with a USB C port.
Plug and Play: These boards come pre-installed with the Bootloader, making them ready to use out of the box. Flash code easily and efficiently in one go.
Wide Compatibility and Support: The OSOYOO Nano supports ISP download, USB download, and power. It's fully compatible with Arduono Nano V3.0 and works seamlessly with Windows, Mac, and Linux operating systems.

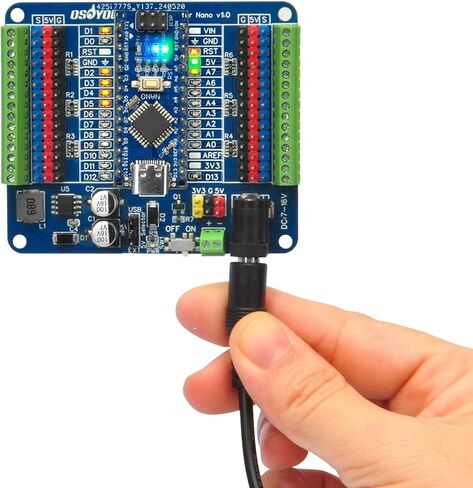

Flexible Power Options: Supports a 6-12V unregulated external power supply or a 5V regulated external power supply. The Nano automatically detects and switches to the higher potential power source, eliminating the need for a power select jumper.
Perfect for engineering students to learn C++ and Python while exploring endless possibilities in electronics and coding.
An affordable device for anyone interested in getting started with both programming and electronics.

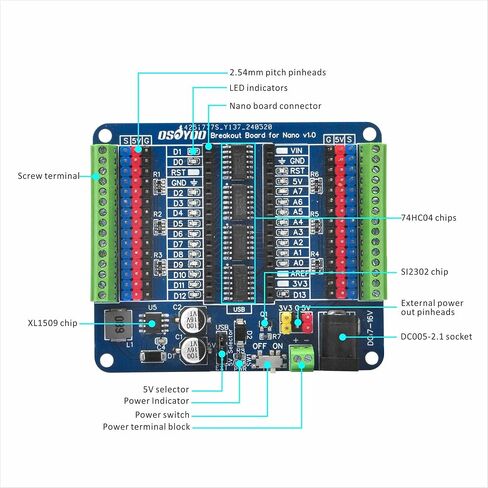

IO Shield Features:

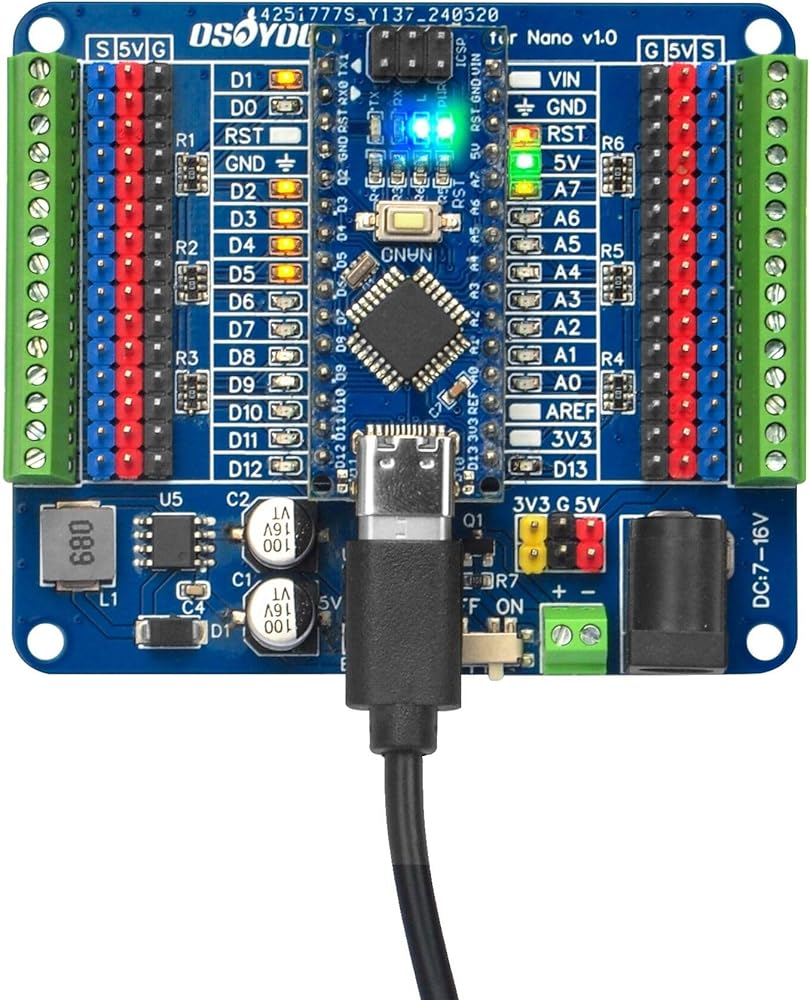

This breakout board can help you wire the GPIO pins and know their status,it is essential for debugging I/O of Nano.
Analog/Digital pinouts with 5V/GND.
Digital IO port 14 ports prepared to digital modules or servos.
Analog IO Port 8 ports prepared to analog sensor input.
External 5V/3.3V/GND power ports.

Tech specs of nano I/O shield:
Operating Voltage: 5V
Input Voltage (recommended) ：7-12V
Digital I/O Pins：20
PWM Digital I/O Pins：6
Analog Input Pins：8
External Power Output：5V/2A
Options for power input：USB/DC005–2.1/Screw terminal/Male pinheads

Tutorial:
Tutorial:Comes with online tutorial.Besides, we offer Fritzing file of this I/O shield.

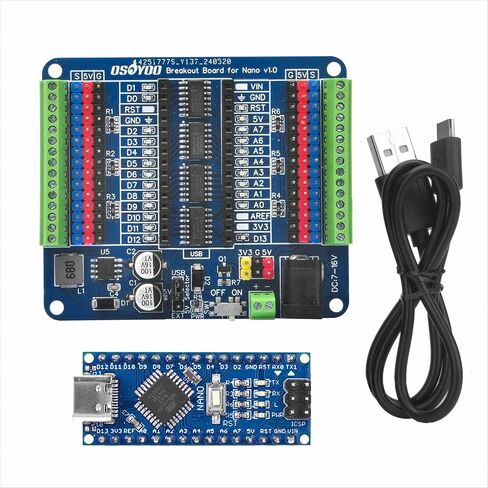

Package Includes:
1 x OSOYOO Nano board with type C cable
1 x Breakout Board for Nano
