-8%

4.3-10 ذكر إلى 7/16 ذكر

KWD 5.500
KWD 6
اللون4.3-10 ذكر إلى 7/16 ذكر
– 1 +

مميزات خاصة

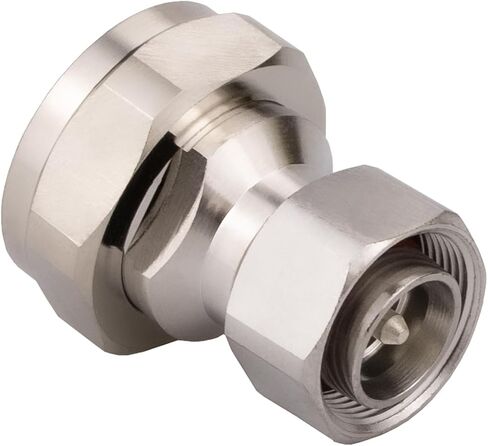

  • 1. 4.3-10 Mini Din male to 7/16 female adaptor, used in Applications,Antennas,Wireless LAN Devices and so on.
  • 2. one size is Mini Din 4.3-10 male, another side is 7/16 L29 Din female connector
  • 3. Frequency Range:DC-6GHz VSWR ≤1.20 Insertion loss≤0.12dB PIM3 ≤-160dBc,Impedance :50 Ohm
  • 4.Material :Body Brass with Tri-Metal plated, insulator :PTFE,Center conductor Brass with Silver plated
  • 5. Package include： 1 piece 4.3/10 MiniDIN male to Din female adapter

وصف

Din female to 4.3-10 MiniDIN Male Adaptor
4.3-10 Mini Din male to L29 female adapter with Low PIM 160 dBc
1.Material data :
Body ：Brass Tri-Metal plated
Insulator: PTFE (teflon)
Center conductor: Brass with Silver plated
2.Electrical data:
Frequency Range :DC-6GHz
VSWR ≤1.20
Insertion loss≤0.12dB
PIM3 ≤-160dBc
Impedance :50 Ohm
Dielectric Withstanding Voltage ≥2000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance : Outer contact≤1mΩ;Center Contact≤1.0mΩ
