مميزات خاصة

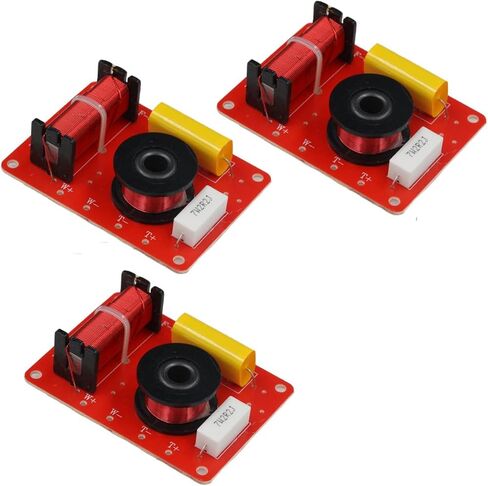

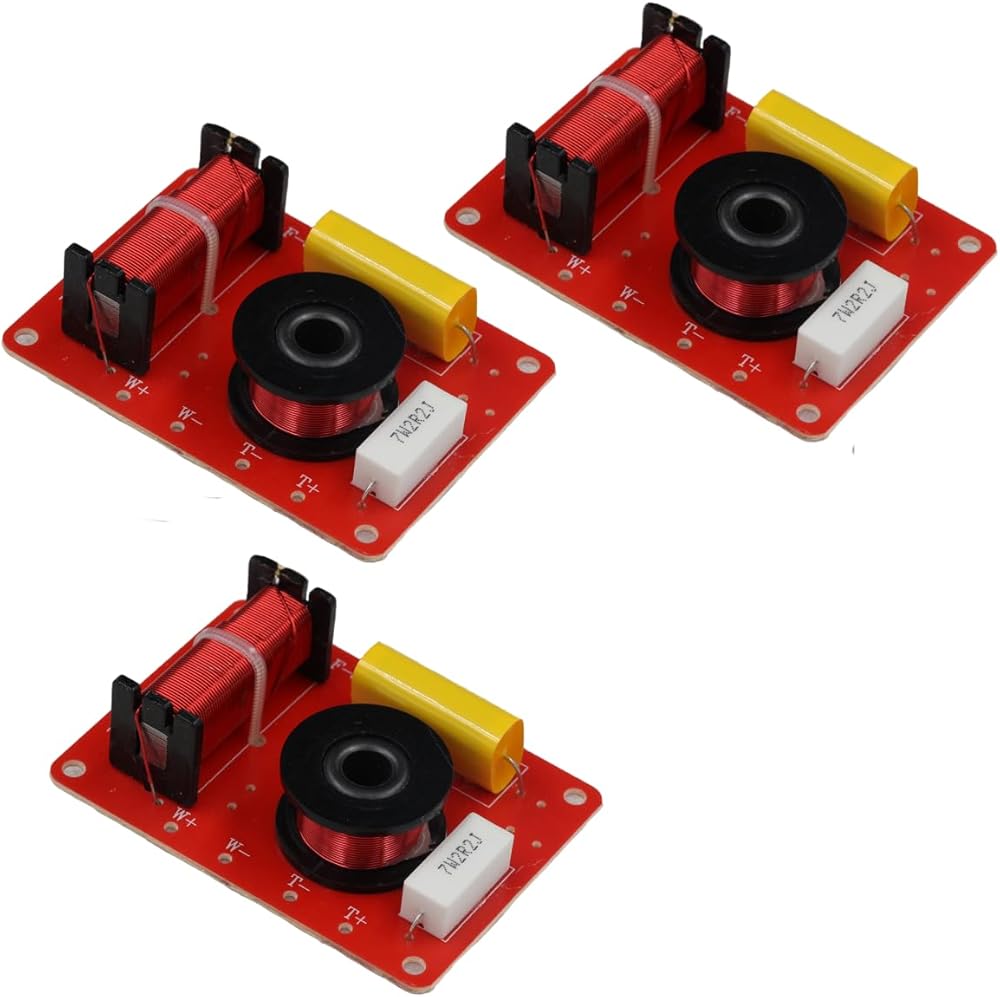

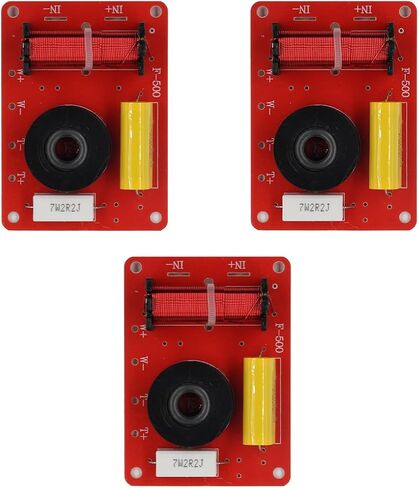

Product Includes: 3pcs Two-Way Crossover (High and Low), Maximum Power Handling: 130W (or less), Crossover Frequency: 3500Hz, Output Impedance: 4-8 ohms
Applicable Range: Suitable for speakers with a size of 6 inches or smaller.

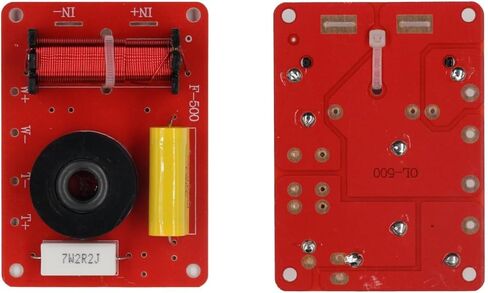

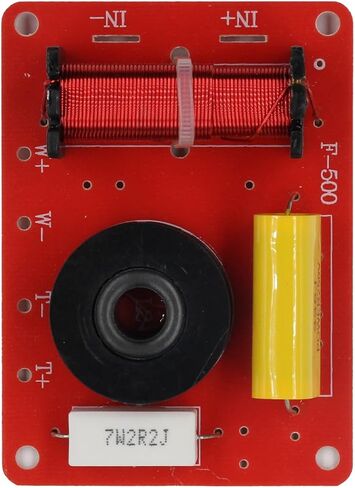

Instructions:IN+, IN-: Connect to the input positive and negative terminals；W+, W-: Connect to the woofer (low frequency) positive and negative terminals；T+, T-: Connect to the tweeter (high frequency) positive and negative terminals.
Function: Separates sound signals of different frequency bands (high and low), amplifies them individually, and sends them to the corresponding frequency band speakers for playback.
Circuit Filtering:High frequencies: Standard 12dB/oct；Low frequencies: Standard 12dB/oct.

وصف

A crossover is a circuit device inside a speaker that separates sound signals of different frequency bands (high, mid, and low), amplifies them individually, and then sends them to the corresponding frequency band speakers for playback.
Product Parameters:
Two-Way Crossover (High and Low)

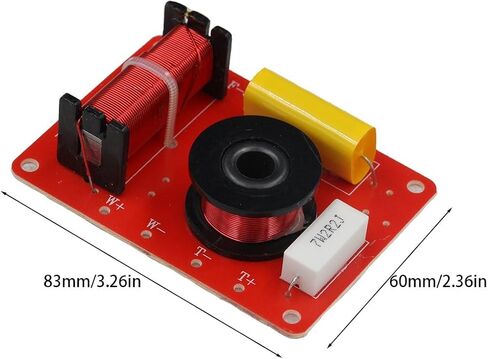

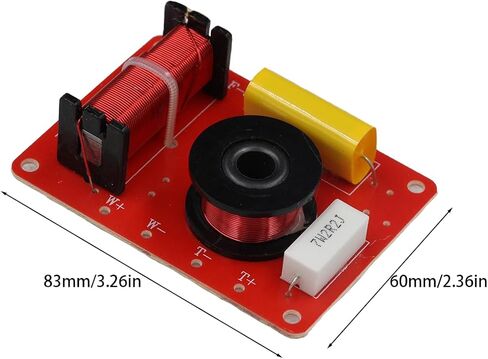

Dimensions: 85mm (L) × 61mm (W) × 19mm (H) / 3.35in × 2.40in × 0.75in
Crossover Frequency: 3500Hz
Maximum Power Handling: 130W (or less)
Output Impedance: 4-8 ohms
Applicable Speaker Size: 6 inches or smaller
