LCD Controller Board:
Input Power Adapter:12Vdc 2A.
Come In Standby Model When Not Input Signal
Standby Model
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:77mm x 45mm x 12mm
8" EJ080NA-05A 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800(RGB)×600
Outline Size 183 × 141×5.9 (H×V×D)mm
Display Area 162 × 121.5 (H×V) mm
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

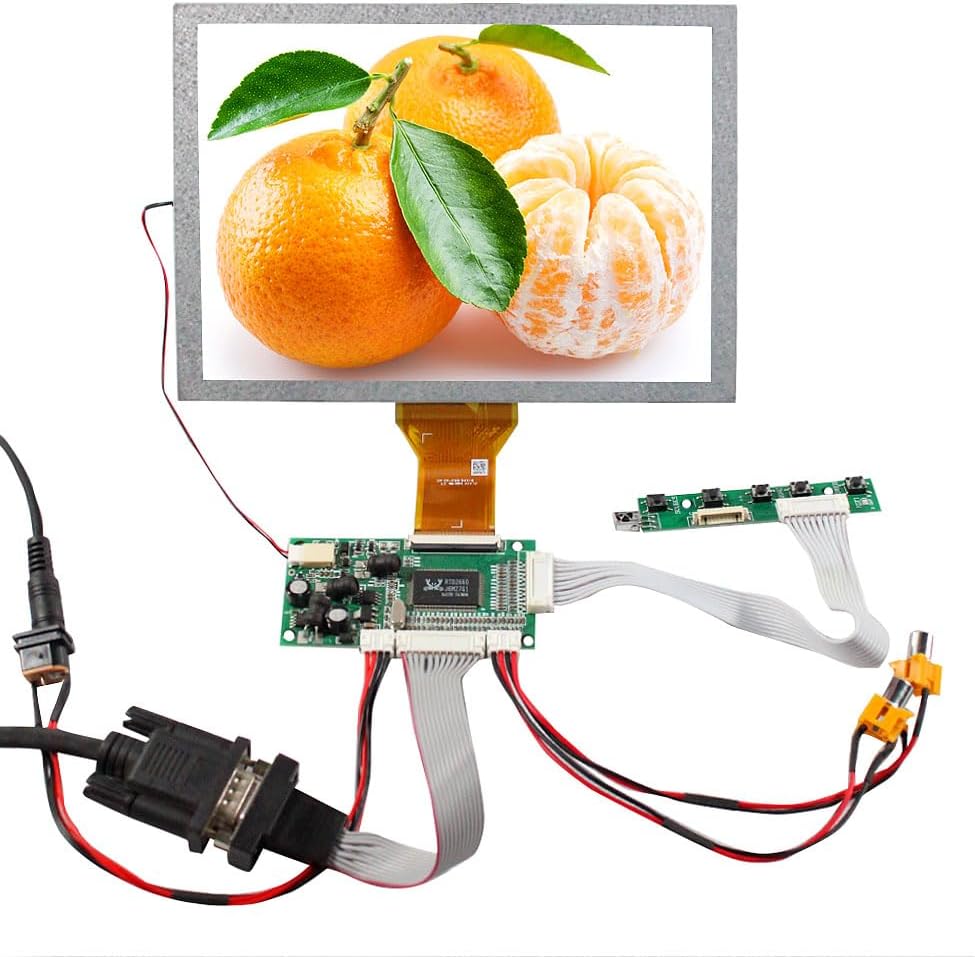

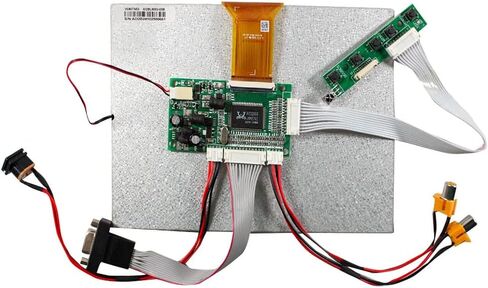

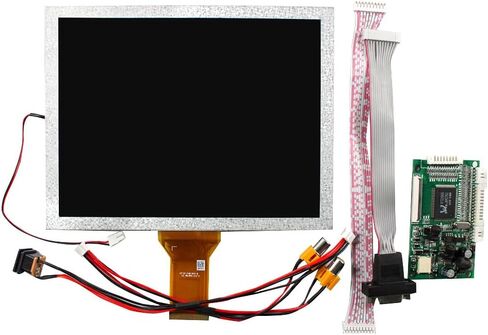

Packing list :
1× VGA+2AV LCD Controller Board VS-TY50-V1
1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel
1× USB Controller Card
1× USB Touch Cable
1x DC Converter cable
1x AV Cconverter cable
1× Keyboard With
