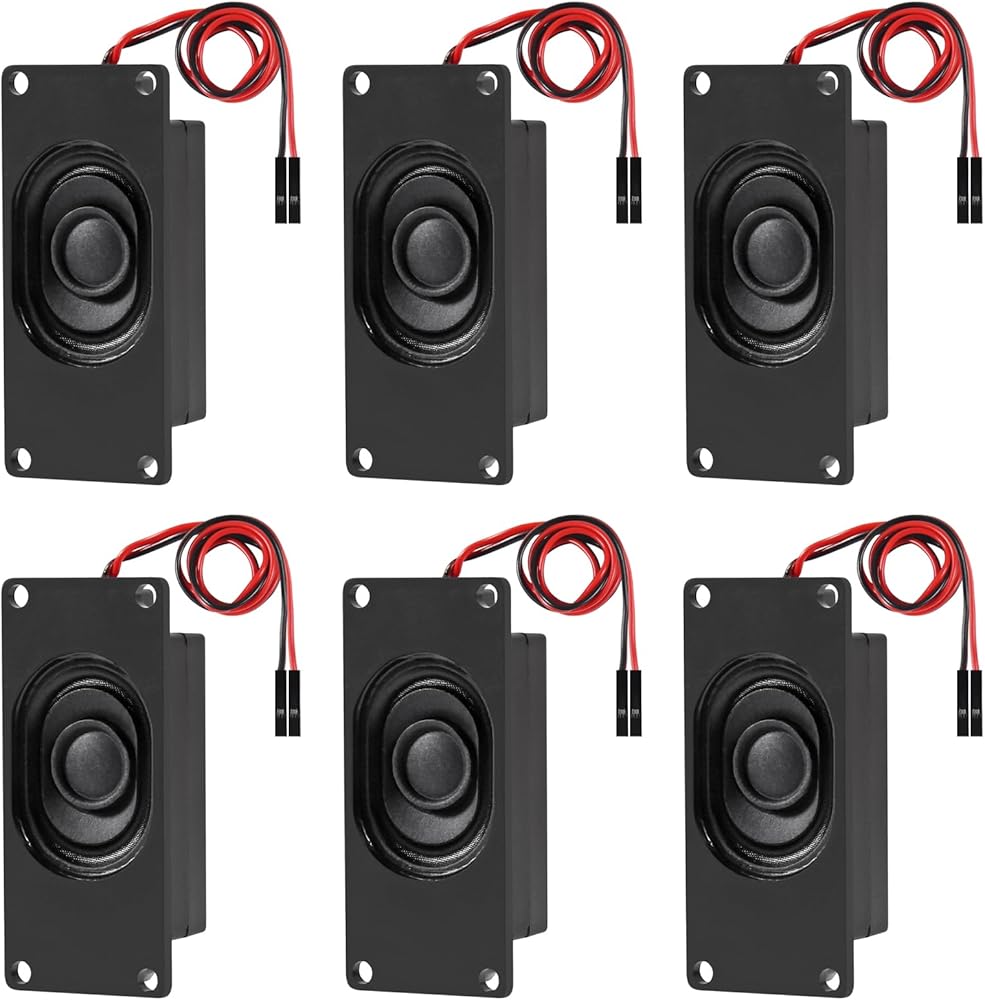

6pcs Speakers 3 Watt 8 Ohm Mini Speaker 8ohm 3w Loundspeaker Micro Speaker with JST-PH2.0 Interface Compatible with Small Electronic Projects

KWD 5.500
Brand
XIITIA
Category
Car Electronics
Weight
137 g
Size3 Watt 8 Ohm JST-PH2.0
– 1 +

Special Features

  • ★Power: Rated Power/Maximum Power 2.0W/3.0W.
  • ★Impedance: 8 Ohms Plus/Minus 15%.
  • ★Size: 70 mm * 31 mm * 16 mm/3.1 inch * 1.2 inch * 0.63 inch (L* W * T).
  • ★When a positive DC current is applied to the terminal marked +, the diaphragm shall move forward.
  • ★Suitable for Arduino, Robot, Raspberry Pi, Advertising Machine, Game Machine, Integrated Machine Special Speaker etc, Projects.

Description

Specifications:
Resonance Frequency: 500 Plus/Minus 20% Hz.
Impedance: 8 Ohm Plus/Minus 15% at 1 khz 1.0V.
Power: rated power/maximum power 2.0W/3.0W
Sensitivity: 82 Plus/Minus 3dB (1w/0.5m) at 1.0K Hz.
Effective Frequency Range: FO to 15 KHz.
Distortion Factor: Less Than 5% MAX. (AT 1.0KHz 0.5W 0.5M)
Polarity: When a positive DC current is applied to the terminal marked +, the diaphragm shall move forward.
Buzz & Rattle Test: 4.0V FO to 15KHz.
High Temperature Storage Test: 80 Degree Celsius Plus/Minus 5 Degree Celsius - 96 Hours.
Low Temperature Storage Test: -40 Degree Celsius Plus/Minus 5 Degree Celsius - 96 Hours.
Magnet: Nd-Fe-B, 12.5mm * 2mm.

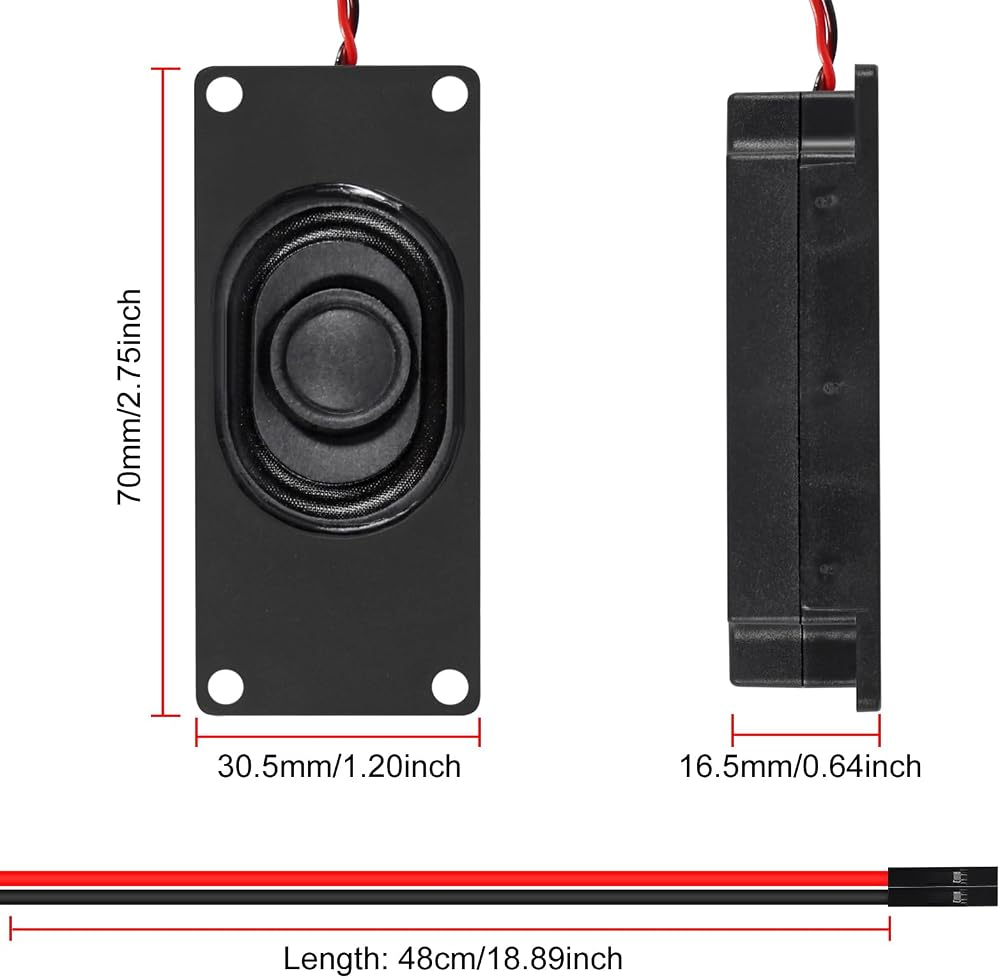

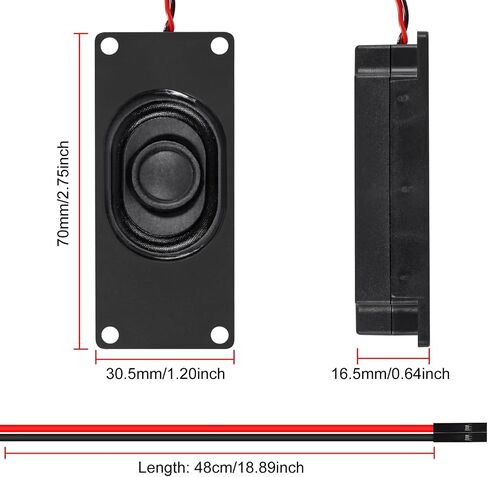

Size: 70mm * 31mm * 16mm.
Screw Hole Distance: 24mm * 63mm.

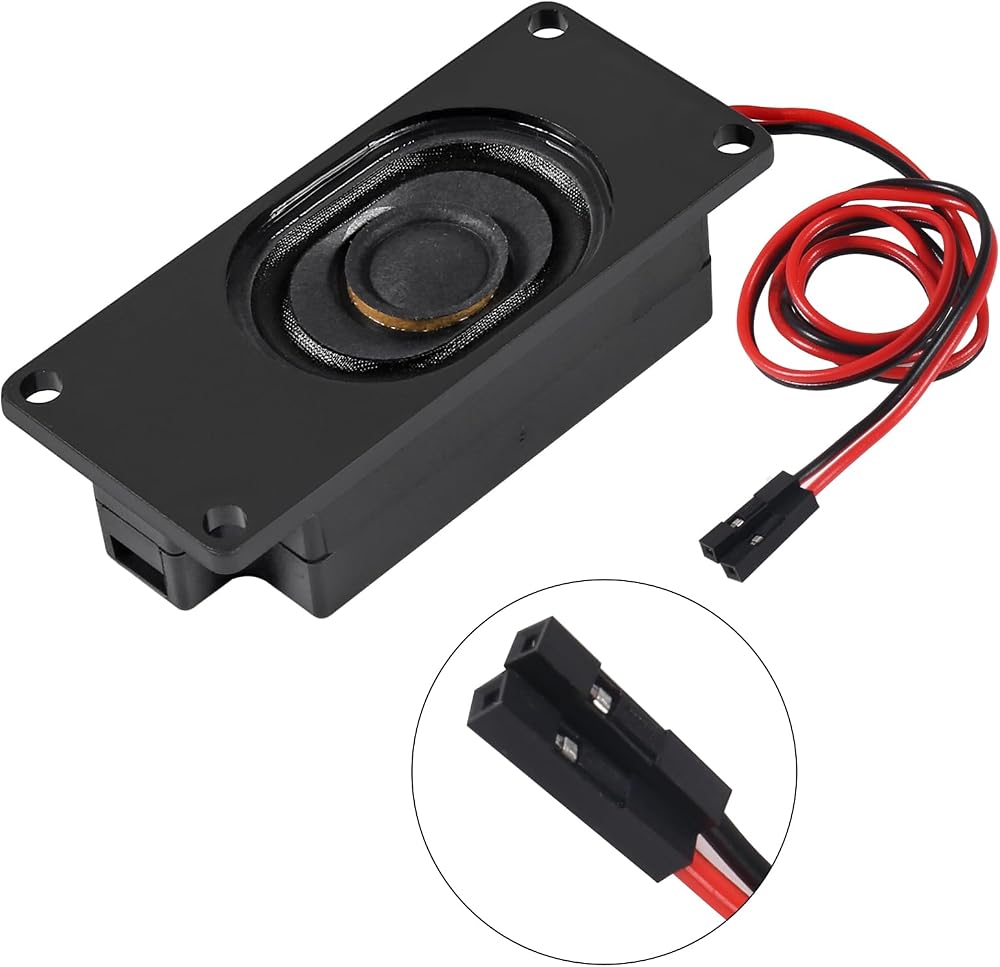

Interface: JST PH2.0 2-Pin.
Interface Cable Length: 40cm.
Total Weight: 24g.
