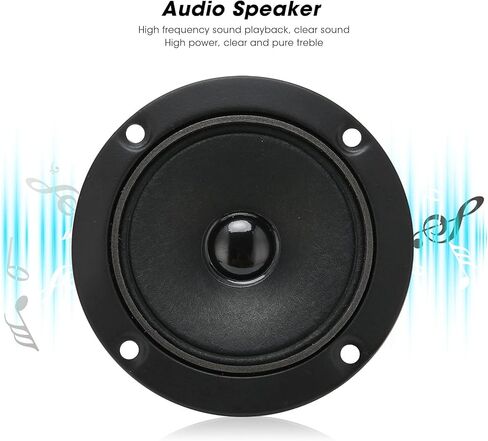

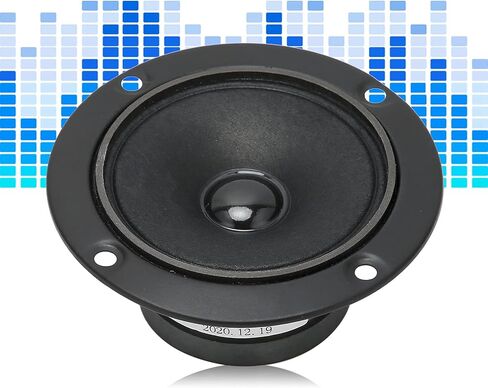

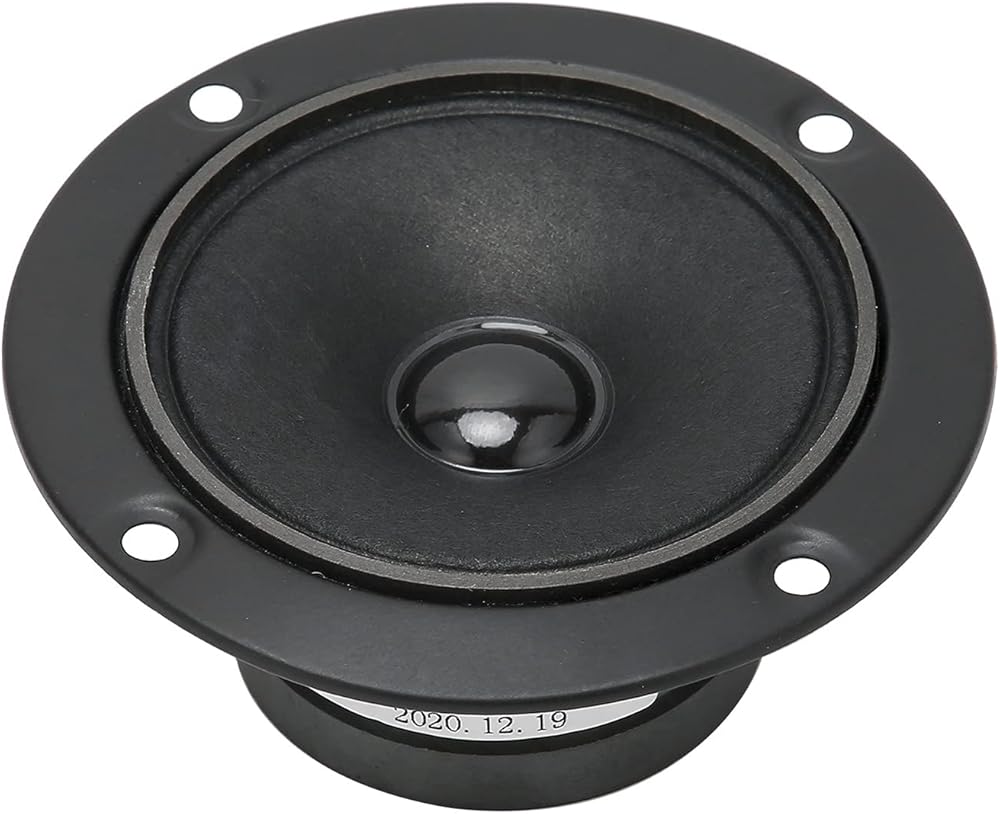

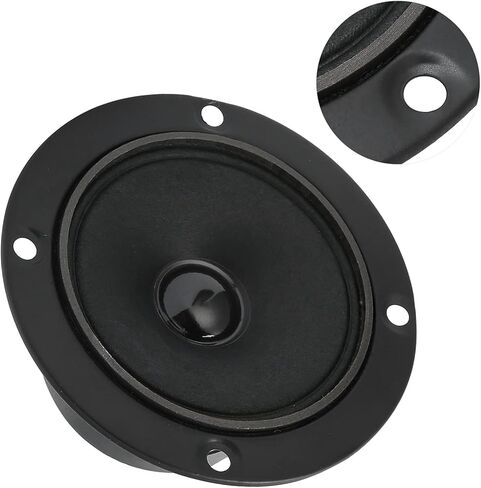

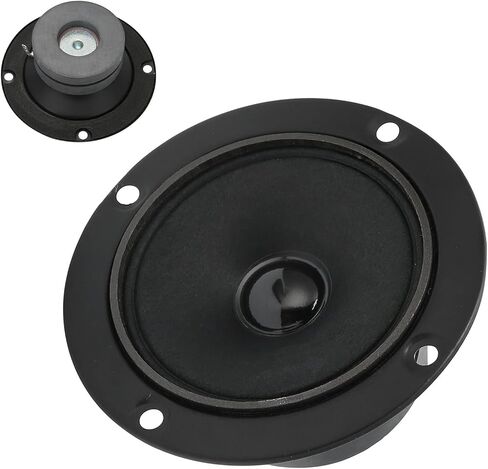

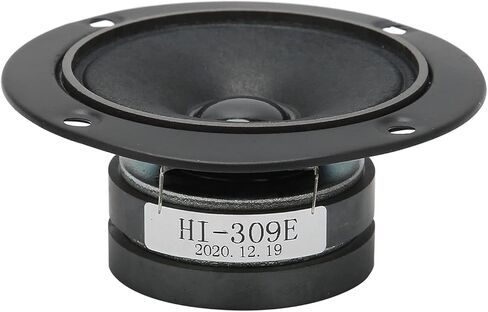

Tweeter, 3 inch 4Ω 15W 100dB Audio Speaker, Clear and Pure Treble, Loudspeaker Magnetic HiFi Treble Speaker, for KTV

Special Features

【Clear and Pure Treble】High‑frequency sound playback can significantly improve the clarity of the sound, but cannot greatly increase the volume.
【Tip】It must be connected to the tweeter port of the power amplifier or used with a crossover to avoid burnout.
【High power】High power, clear and pure treble, not easy to overload, generally with use 4‑15 inch woofer, not used alone.
【Product performance】Impedance is 4Ω 15W, peak value is 30W, frequency response is 1.5KHZ‑20KHZ, sensitivity is 100dB.
【Long service life】Strong and magnet, not easy to demagnetize. Long service life, easy to install and maintain.

Description

How to Use:

1. Users need to have a certain DIY hands‑on ability.
2. The tweeter is connected to the tweeter interface of the power amplifier and needs to be welded.
3. It can be used with woofer.

Specification:

Item Type: KTV Speaker
Nominal Diameter: 3in
Winding Material: EISV
Nominal Impedance: 4Ω
Former Material: KSV
AES Power Handling: 15W
Continuous Program Power (Peak): 30W
Sensitivity 1w/1m: 100dB
Frequency Range: 1.5KHZ-20KHZ
Voice Coil Diameter: Approx. 14mm / 0.6in

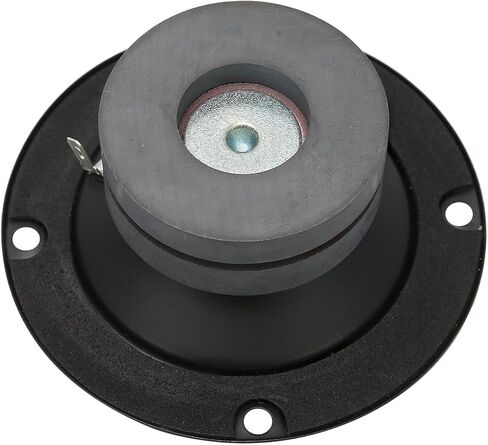

Magnet: Ferrite
Overall Diameter: Approx. 98mm / 3.9in
Circle Diameter: Approx. 88mm / 3.5in
Bafle Cutout Diameter: Approx. 73mm / 2.9in
Depth: Approx. 42mm / 1.7in
Magnet Diameter: Approx. 55mm / 2.2in

Package List:

1 x Speaker
