Description:
This is an audio power amplifier board that strengthens low-power, inaudible electronic audio such as the from radio receiver or electric guitar pickup to a level that is strong enough for driving loudspeakers or headphones. Power amplifiers make the audible to listeners. It is the final electronic stage in a typical audio playback chain before the is sent to the loudspeakers and speaker enclosures.

Features:
Digital amplifier has a higher overload capacity than analog amplifier, and it won't cause crossover distortion, transient inter modulation distortion and you don't have to worry about the loudspeaker internal .
It supports Bluetooth V4.0 audio input and DC 8V to 25V voltage input.
Integrated amp uses NE5532 pre-amp, and TDA7492 chip for dual channel of 50W+50W power output.
Sound quality is very good by using this audio power amplifier module.
Applicable speaker impedance are 4, 6, 8ohm, great for turning normal speaker into Bluetooth speaker.

Specifications:

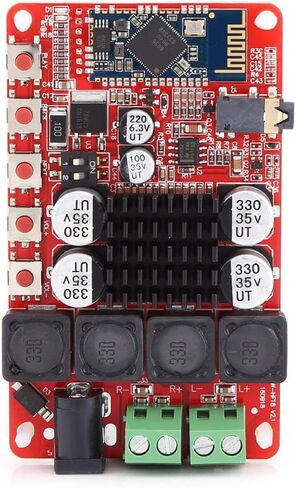

Chip: TDA7492
Audio Input: Bluetooth V4.0
Output Power: 2x50W
Suitable Speaker Impedance: 4ohm, 6ohm, 8ohm
Input Voltage: 8V~25V DC(2.1mm jack)

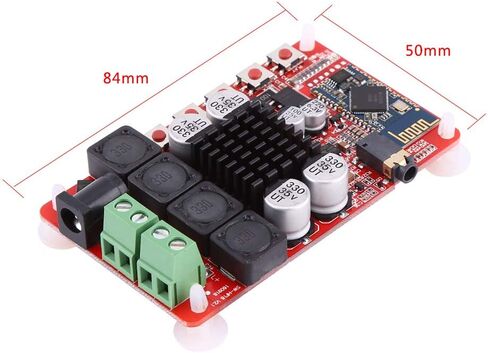

Size: 84 x 50mm / 3.3 x 1.97"

Package Includes:
1 x Amplifier Board
