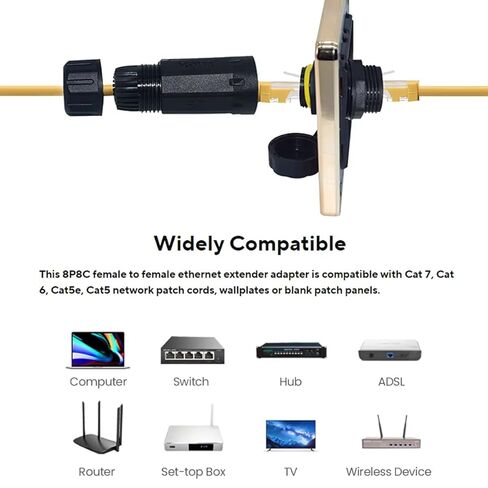

This RJ45 CAT7 Shielded connector is designed for panel mounting with female inputs on both sides, so you can easily connect two network cables together as a network extender.

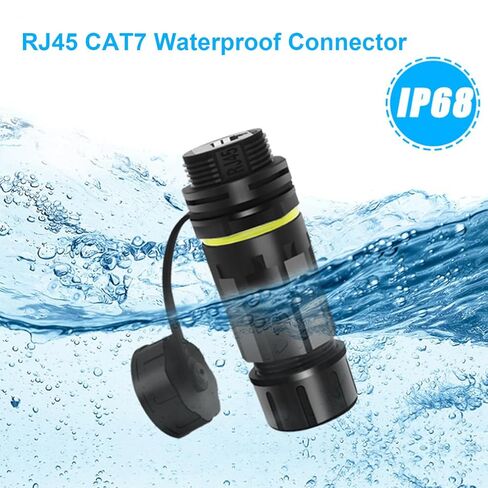

IP68 rating (waterproof and dustproof), suitable for both outdoor and indoor network environments: RJ45 cat7 Ethernet connection with fast transmission speed. Very suitable for printers, PCs, routers, computer servers, switches, network media players, external holiday lighting displays, IP security cameras, POE solutions, industrial applications.
Specification：
Features: waterproof, pressure resistant, shielded metal
Connect type :RJ45
Interface:Female to Female
Compatible :CAT5, CAT5E, CAT6,CAT6A,CAT7
Transmission speed: Up to 10 gbps
Waterproof level: IP68（Waterproof and dustproof）
Material: nylon PA66 + Metal
Contact：Copper
Number of cores: 8 PIN
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ï¼ 500MÎ
Maximum frequency: 250 Mhz
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: ï¼ 10MÎ
Material:
Shell: nylon plus fiber (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40ï½ 120Celsius
Storage temperature: -25ï½ 85Celsius
Atmospheric pressure: 86ï½ 106kPa
Relative humidity: â ¤90% RH
Package incloud：
2 x RJ45 CAT7 Waterproof Coupler
