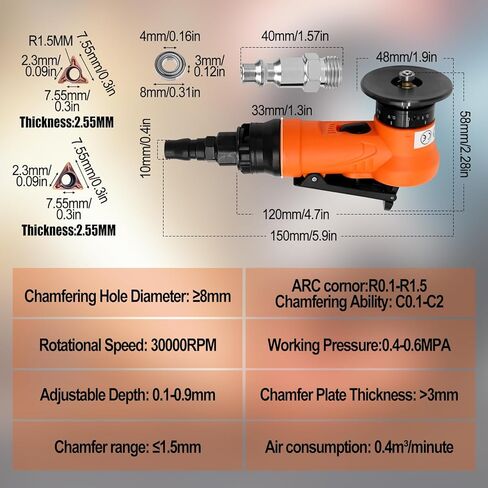

Chamfering Hole Diameter≥8mm
Chamfering Ability: C0.1-C2 / ARC cormor: R0.1-R1.5
Rotational Speed: 30000RPM
Working Pressure: 0.4-0.6MPA
Adjustable Depth: 0.1-0.9mm
Chamfer Plate Thickness: >3mm
Chamfer range: ≤1.5mm
Air consumption: 0.4m³/minute

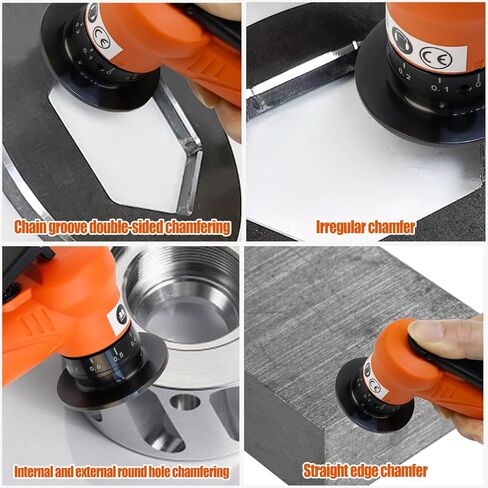

Chamfer range: Minimum aperture≥8mm,
Minimum radius≥4mm
Minimum depth≥5mm
Thinnest thickness≥3mm

Blind spot size = radius of the guide wheel
R diameter greater than the radius of the guide wheel can be chamfered
lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm.

R-diameter less than the radius of the guide wheel is a blind spot
lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm.

Maintenance Tips:
1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet.

2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.

3. It is an air compressor (air pump) for mechanical use. The output of the air compressor is about 6~8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and the piston of the air compressor brings out a small part of the lubricating oil. If the oil-water separator is not used, water and oil and gas will enter the inside of the machine for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, the pneumatic tool oil needs to be input into the air inlet, and the machine can be used normally after idling for about ten seconds.
