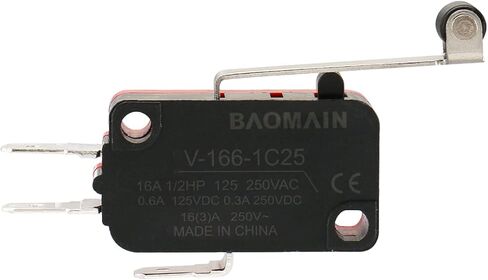

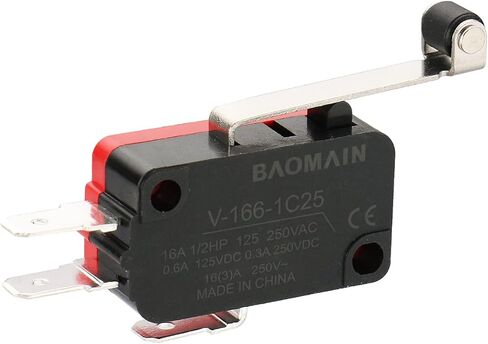

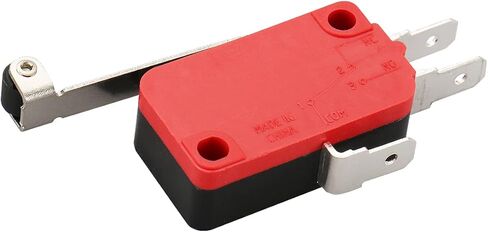

Baomain Micro Switch V-166-1C25 ذراع رافعة دوارة SPDT NO/NC حزمة مؤقتة مكونة من 5 قطع

KWD 3.500
ماركة
Baomain
– 1 +

مميزات خاصة

  • Actuator Type: Long Hinge Roller Lever
  • AC-12: 16A 250V; Rating: AC 250V/125V 16A 1/2HP DC 250V/0.3A, 125V/16A;
  • Contact configuration : SPDT; CE listed

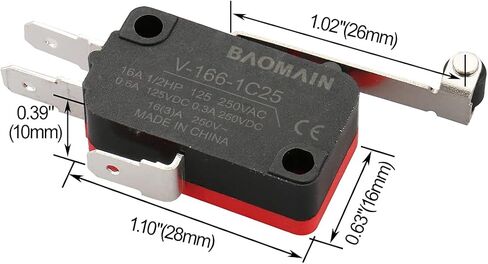

  • Switch Body Size: 28 x 10 x 16mm / 1.1 x 0.39 x 0.63"(L*W*H)

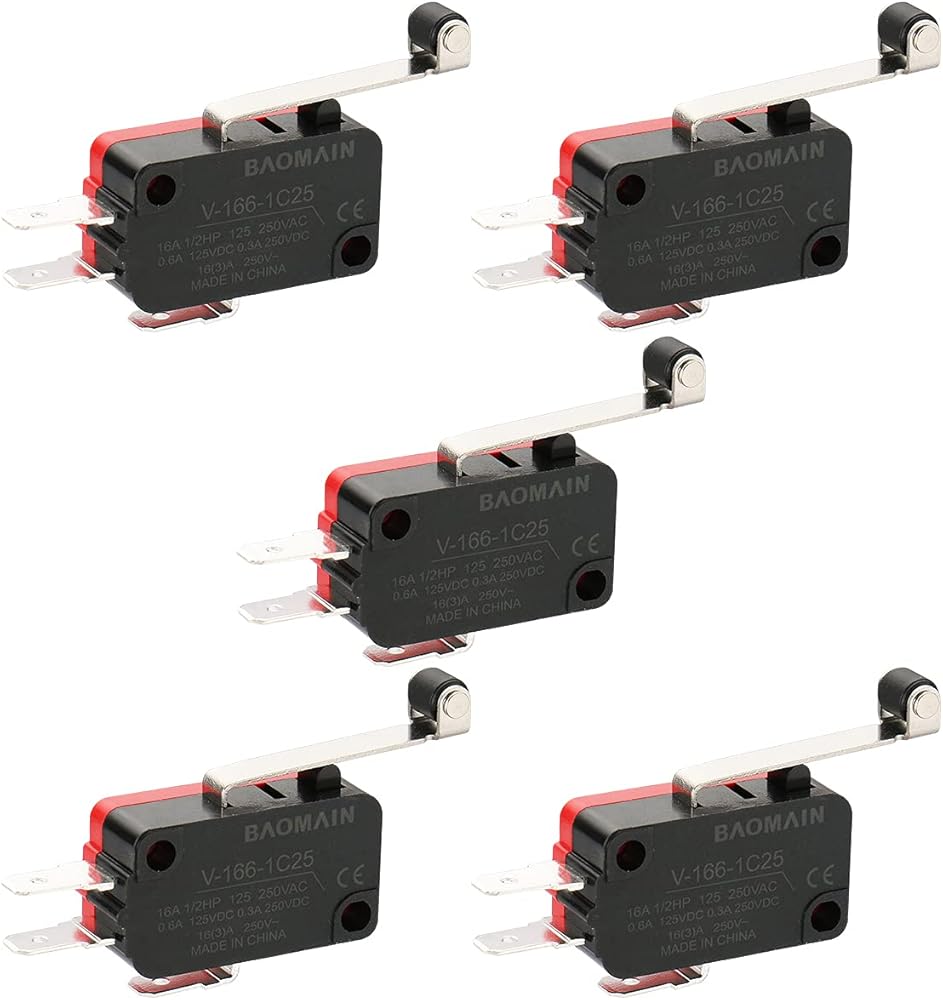

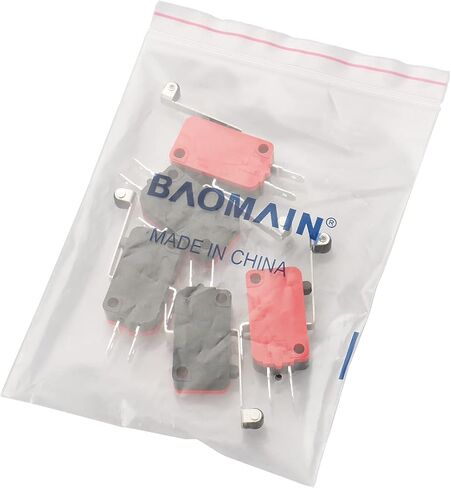

  • Weight:39g; Package Content: 5 x Micro Switches

وصف

High precision mechanism design offering acute operation and long life.
Its a really usefull switch, for DIY projects.
Features with Hinge Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Terminals design.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
