مميزات خاصة

【Safety and Reliability】The Lever Wire Connectors shell is made of high-quality PC insulating material, which is flame-retardant, corrosion resistance, aging resistance, high pressure resistance, long service life. It can prevent electrical leakage, safe and reliable.

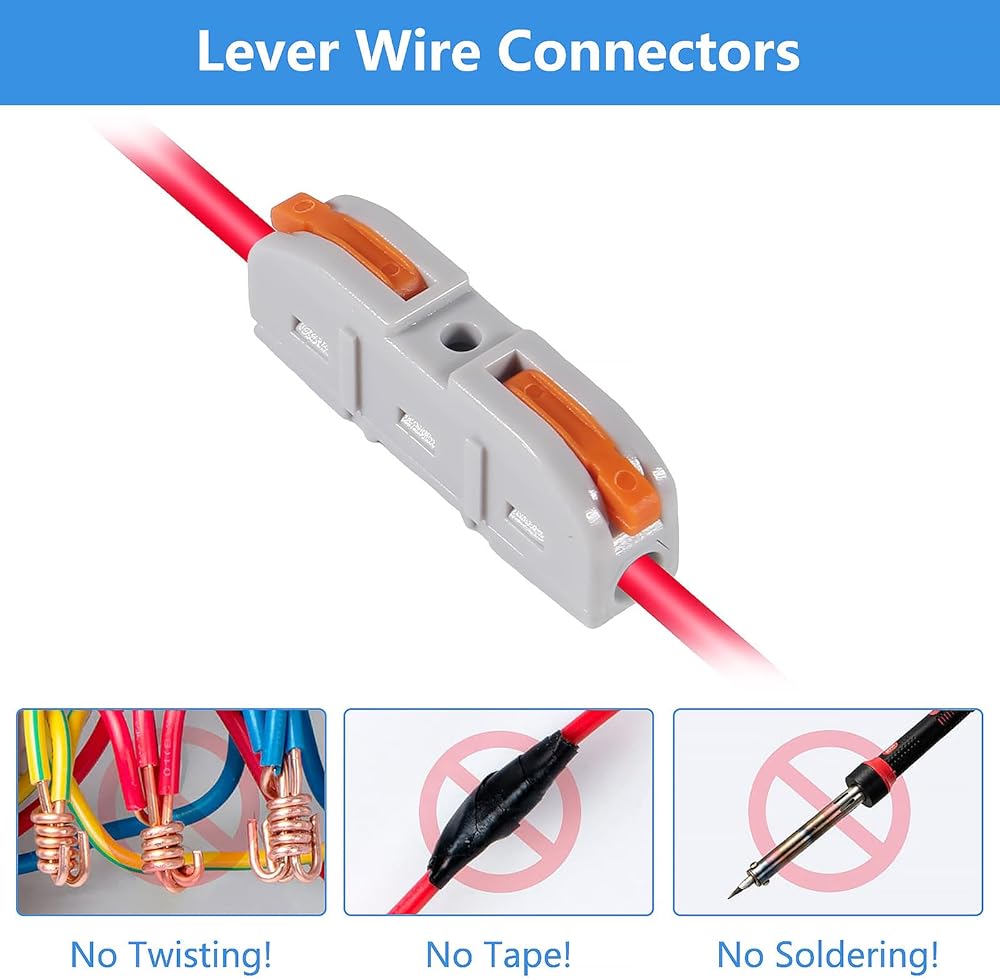

【Performance Upgrade】Lever wire connector instead of traditional electrical tape and electrical butt connectors twist-type, reduces wiring time. Make connections cleaner, space-saving and low-maintenance.
【Easy to Operate 】Push the orange handle to 90 ° and insert the wire (strip the wire housing to 0.35-0.47 inch, make sure the wire is inserted at the end. Do not open the wire housing for too long), and then place the back of the wire clamp. When you make electrical connection, you only need a little force to push the lever up.

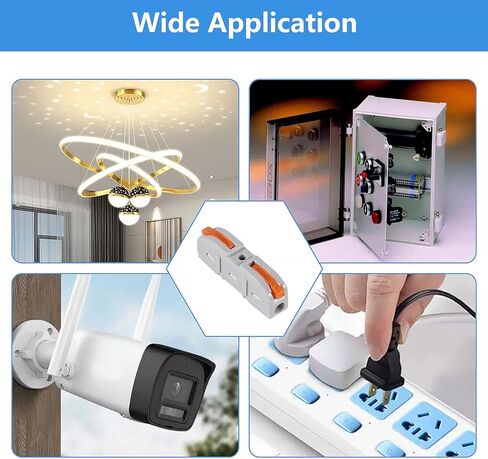

【Wide Application】Suitable for wire size 0.2~4mm²/AWG24-12. Used to connect braided and solid wires of various sizes, this connector is a versatile tool for various electrical applications, such as household wiring for ceiling fans, sockets, switches, vehicles, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and more.

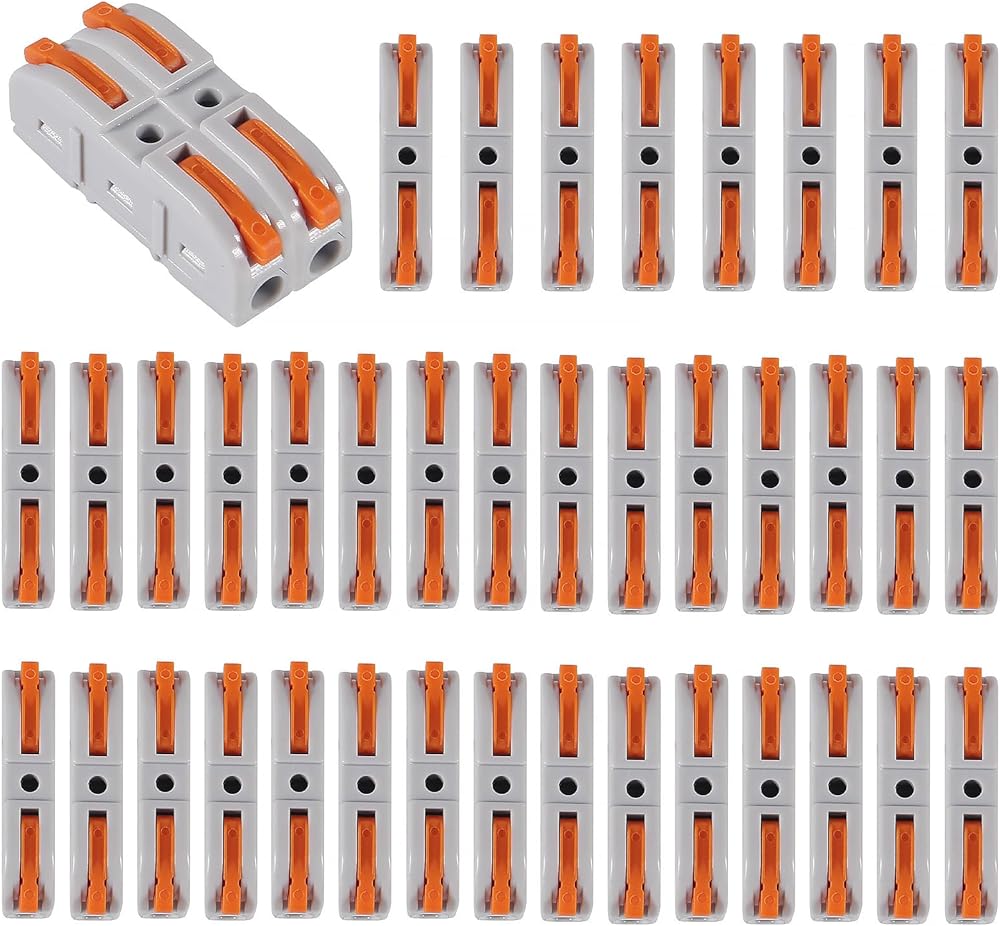

【Package Content】40pcs 1 to 1 Inline Electrical Lever Wire Connectors.

وصف

Lever Wire Connector, 1 to 1 Inline Electrical Lever Wire Connectors Nuts Push-in Quick Conductor Combination Compact Splicing Connectors

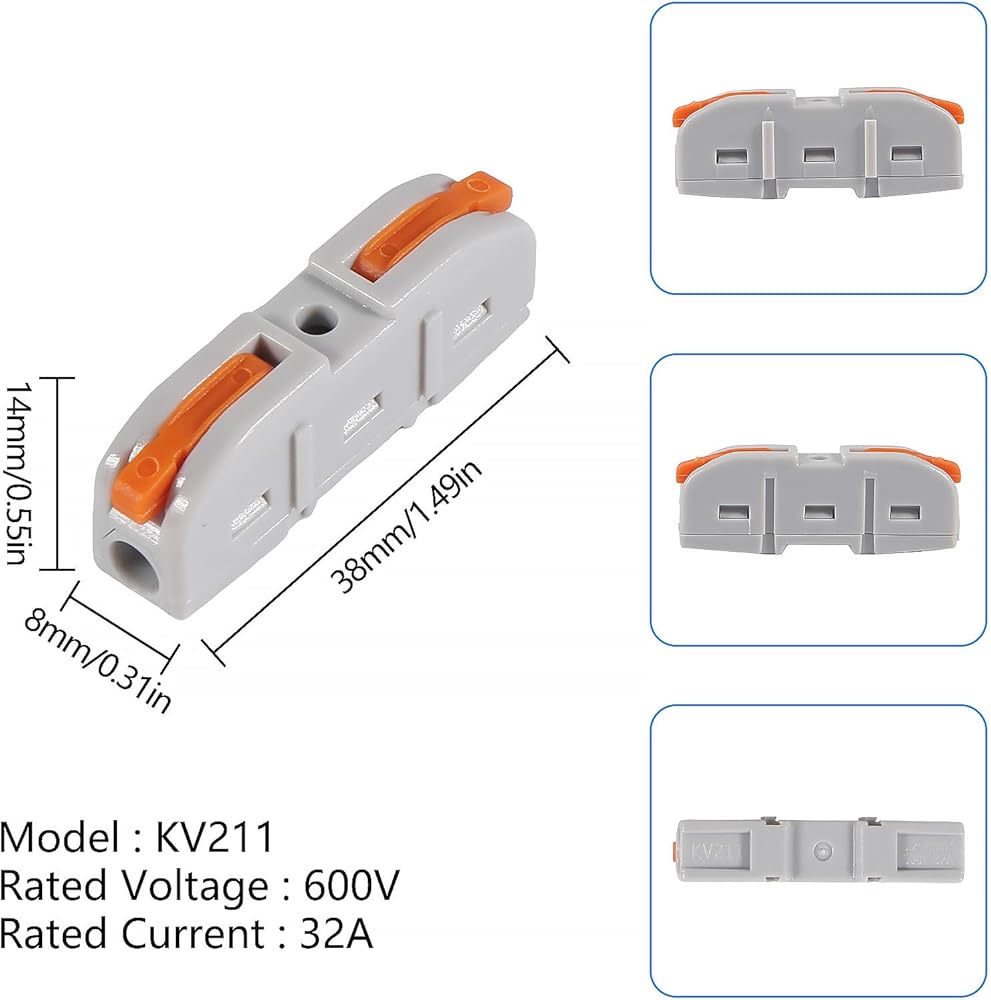

Specifications:
Item Name: 1 Way Lever Wire Connector
Rated Voltage: 600V
Rated Current: 32A

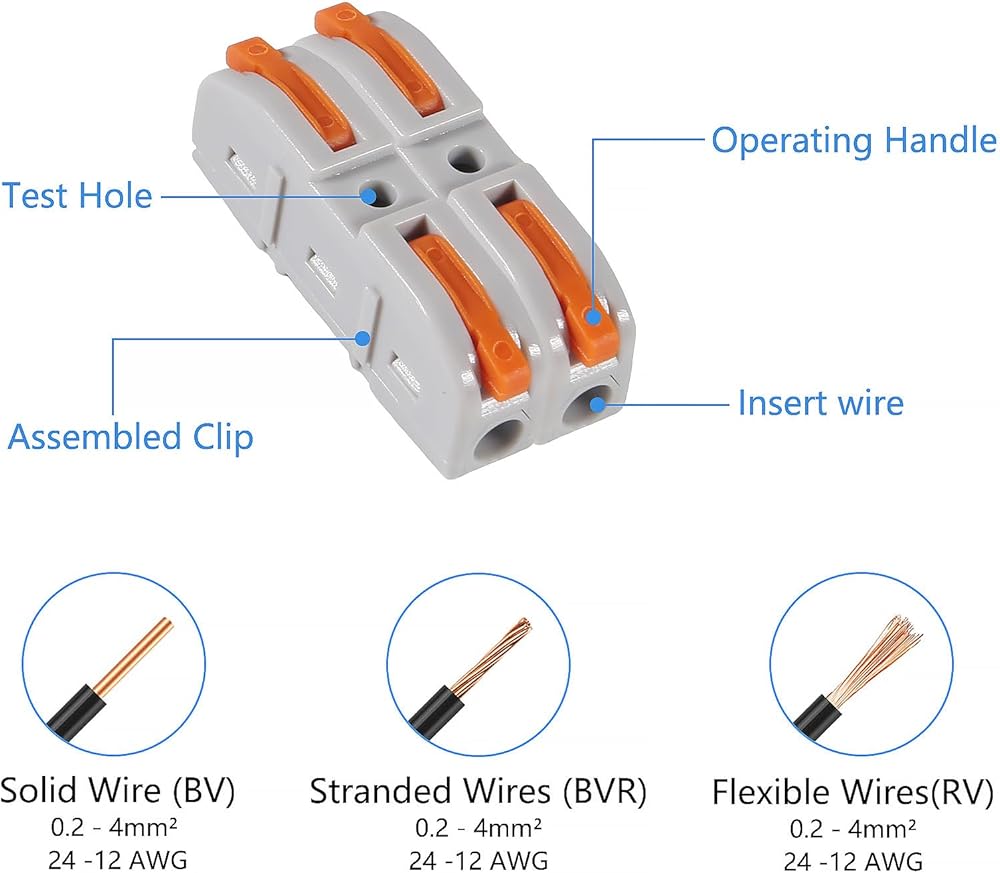

Solid Wires: 0.2-4mm² (28-12 AWG)
Stranded Wires: 0.2-4mm² (28-12 AWG)
Flexible Wires: 0.2-2.5mm² (28-14 AWG)
Operating Temperature: -25~95℃
Conductive Material: Pure Copper

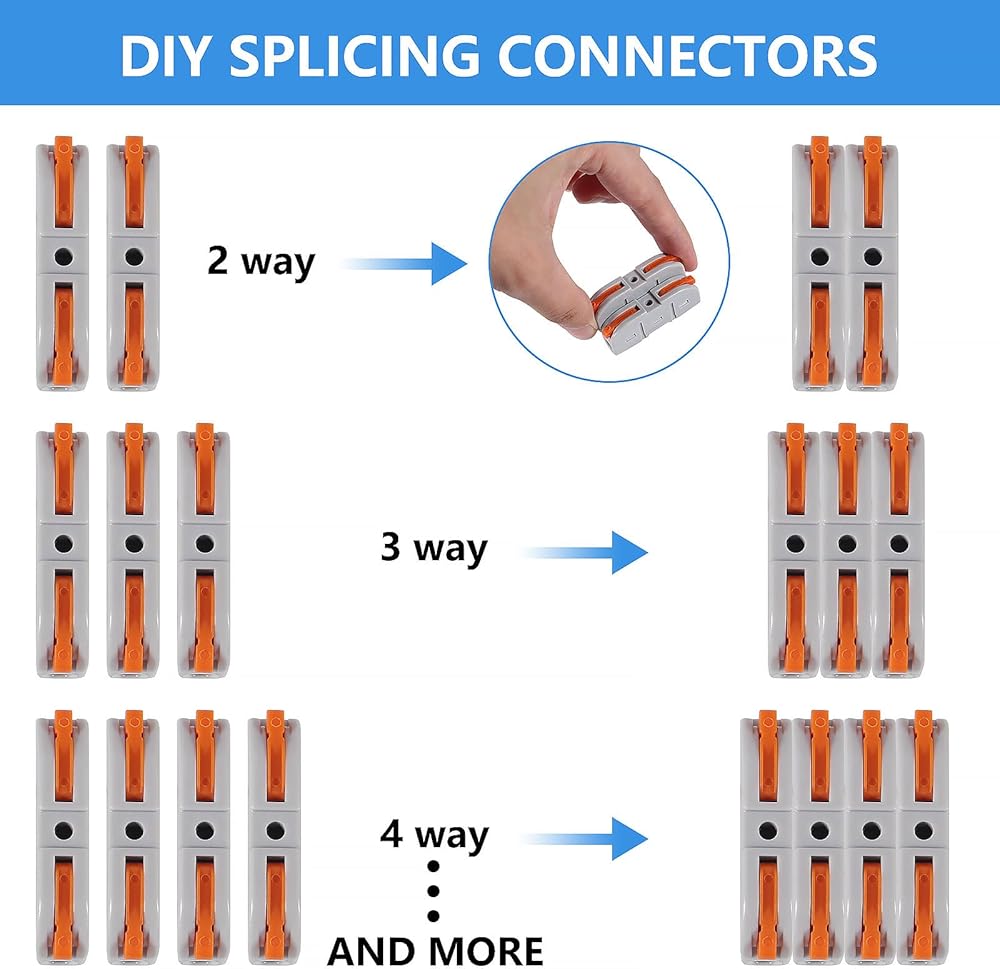

Key features: Freely combinate to 2,3,4,5 ..any way as need

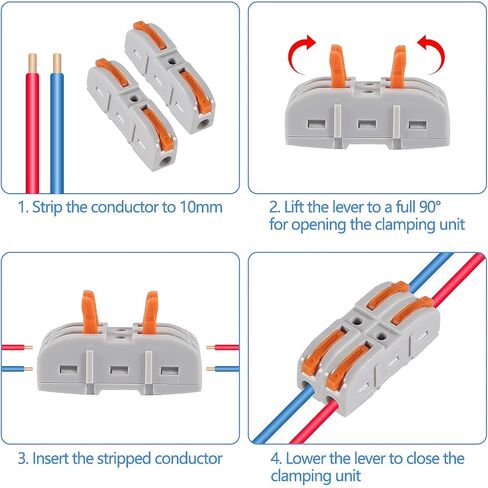

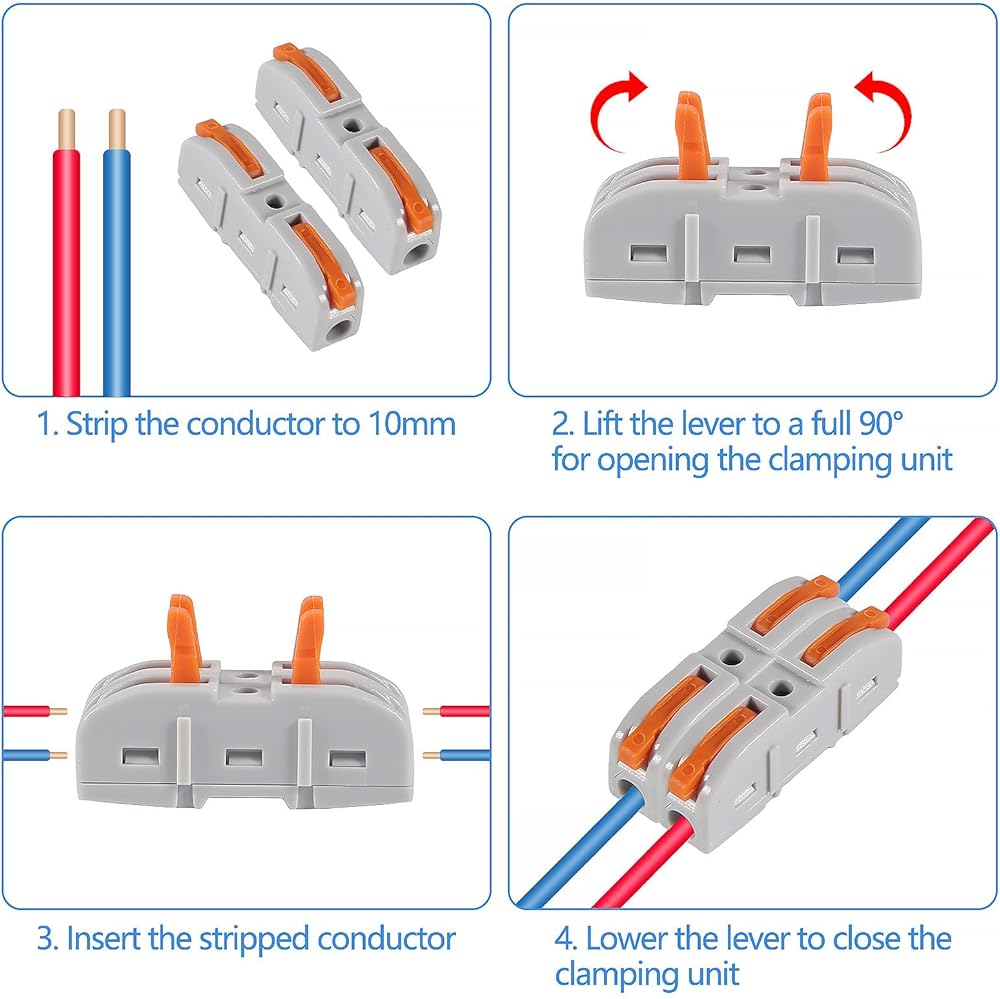

How to use the Lever Wire Connectors:
Open the housing of wire to 0.39-0.47inch (9-10mm);
Push the lever to 90° and insert the wire lead;
Press the lever to close the clamp;
Check the test hole whether it is connected correctly.

Package Included: 40pcs Conductor Compact Connectors Lever Connectors
