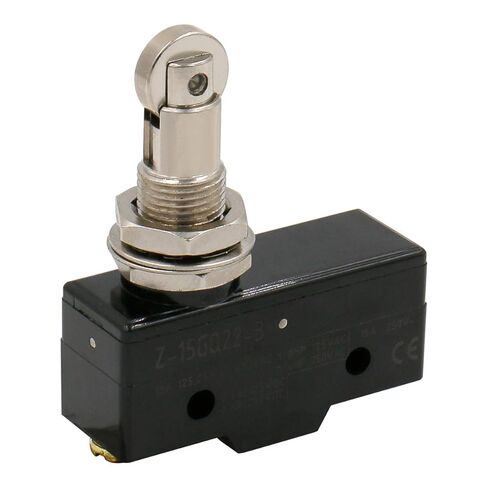

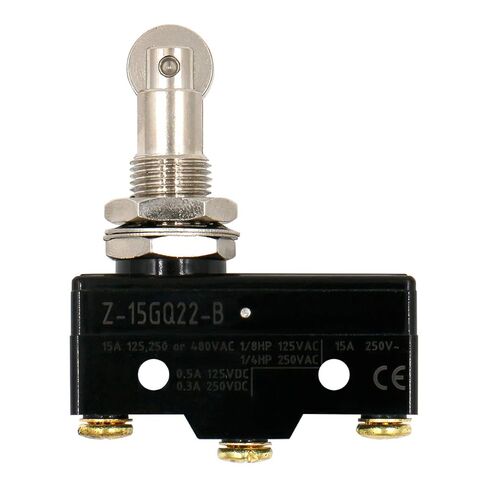

Baomain Z-15GQ22-B3 General Purpose Basic Switch, Panel Mount Roller Plunger, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current 2PCS

KWD 4.500
Brand
Baomain
Weight
109 g
– 1 +

Special Features

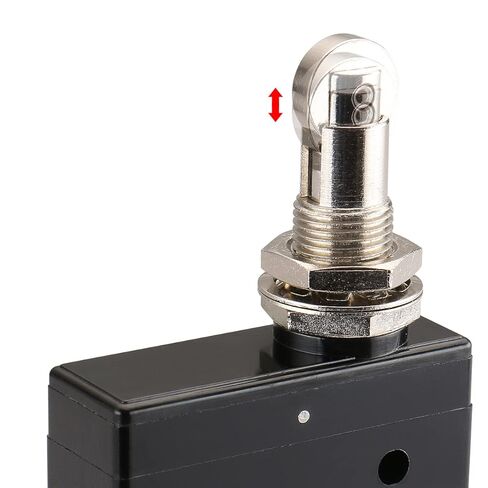

  • Product Name : Micro Switch;Actuator Type : Parallel Roller Plunger;Action Type : Momentary

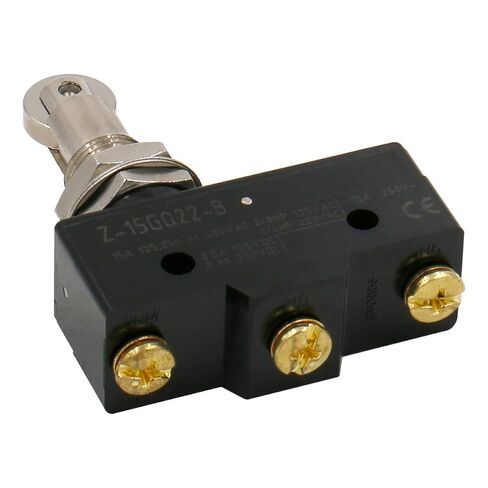

  • Contact Type : SPDT 1NO 1NC 1 Com;Terminal Type : 3 Screw Terminals;Ui / Ith : AC 250V 15A;Rated : 15A 125/250/480VAC,1/4HP 250VAC / 1/4A 250VDC

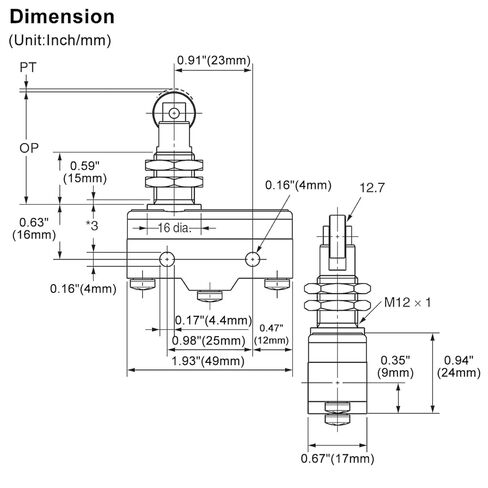

  • AC-15 : 2A/15A 250V;DC-13 : 0.25A 250V;Roller Size : 13 x 3.5mm / 0.51" x 0.14"(Dia.*W);Fix Hole Diameter : 0.4cm / 0.15";Fix Hole Distance : 25mm/ 0.98"(Center to Center)
  • Mount Thread Diameter : 12mm/ 0.47";Suitable Board(Max) : 7mm/ 0.28"(Adjustable);Main Body Size : 5 x 1.7 x 2.4cm / 2" x 0.7" x 0.9"(L*W*H);Overall Height : 6.2cm / 2.4"
  • UL & CUL CE listed;Net Weight : 110g

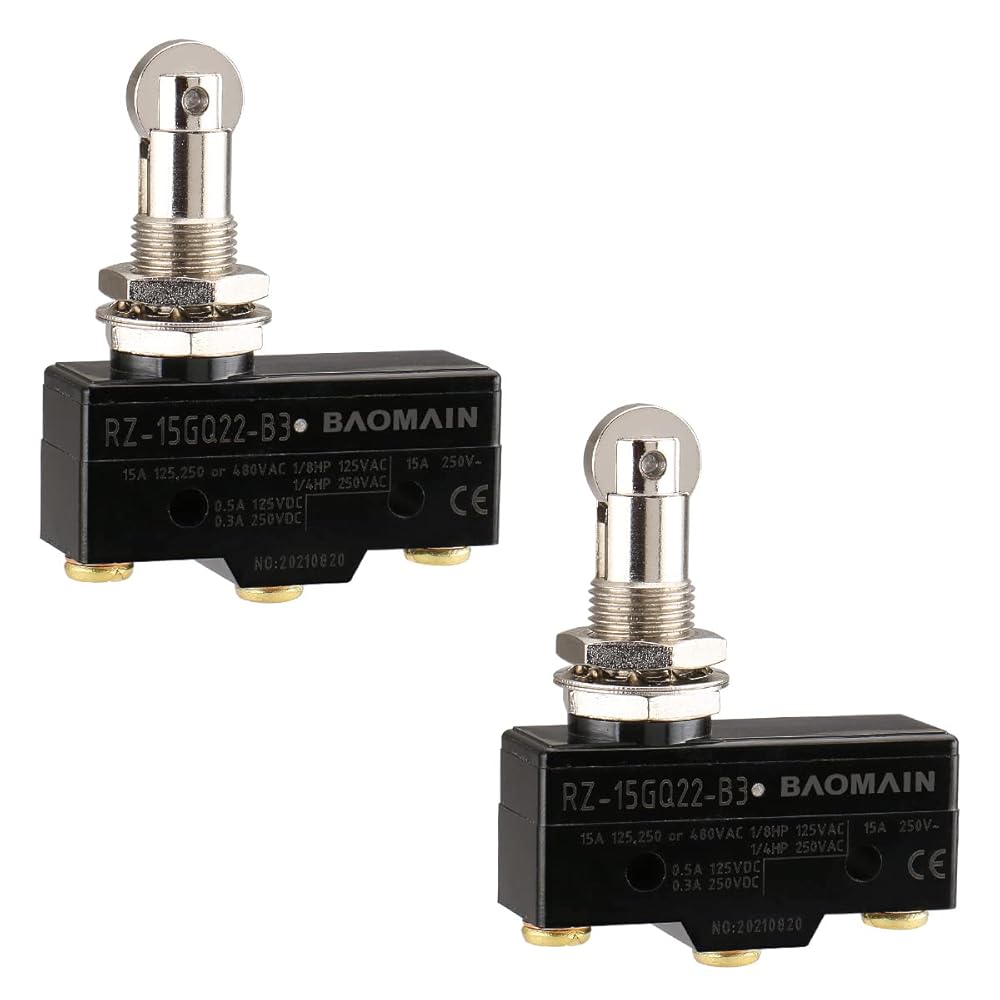

  • Package Contect: 2 x Micro Switch

Description

This Micro Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection.
