Electromagnetic lock 150LBS 60KG Holding Force electric magnetic door lock 12V Fail Safe NC Mode for Access Control System

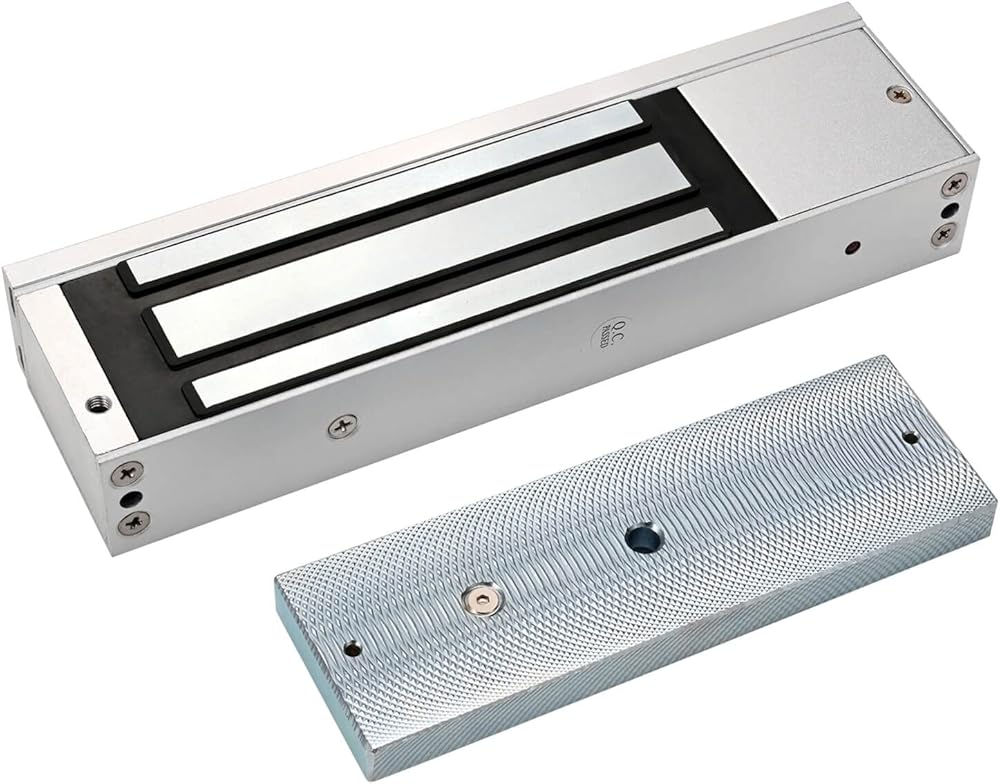

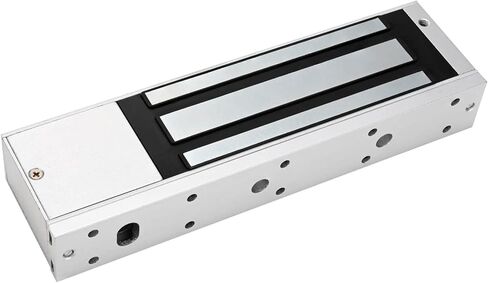

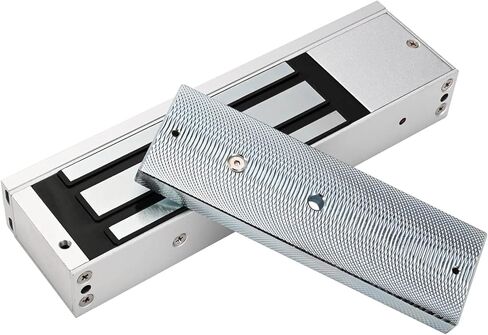

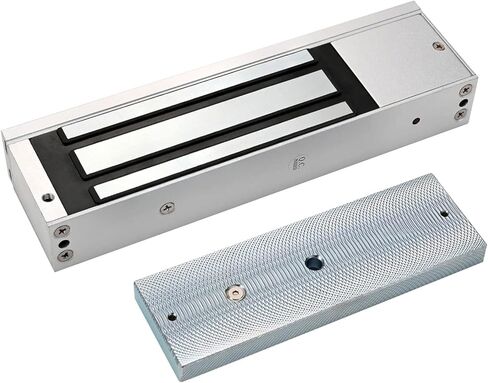

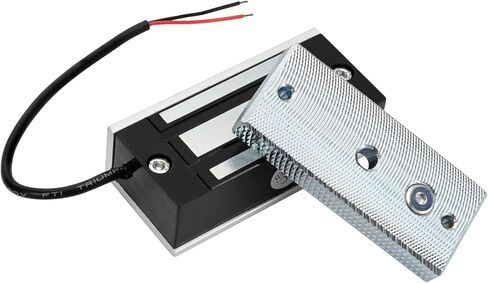

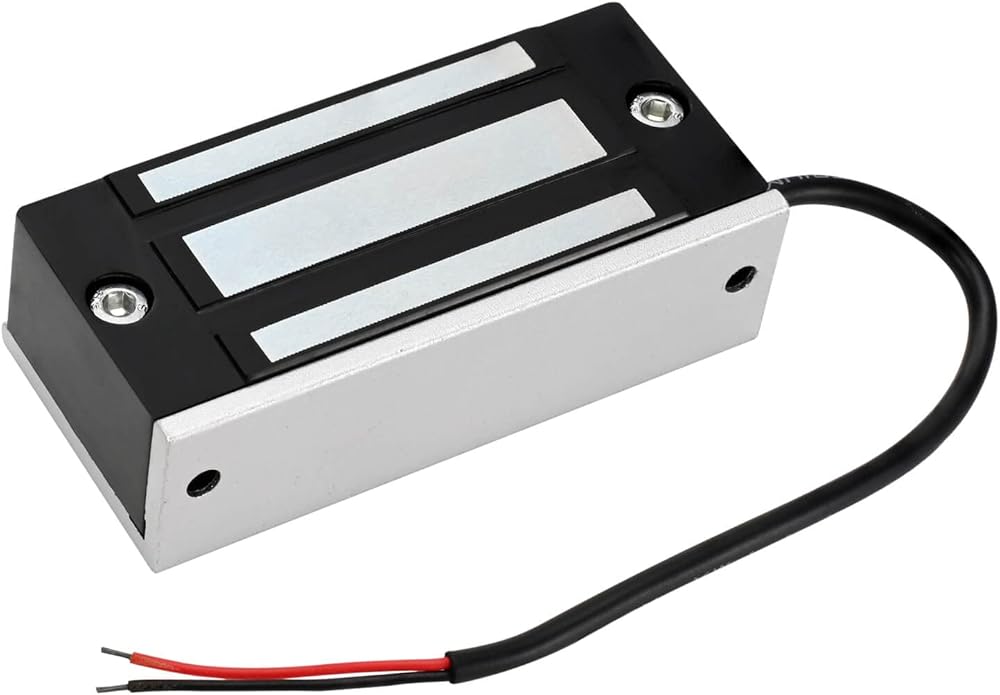

This 150LBS Holding Force electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.

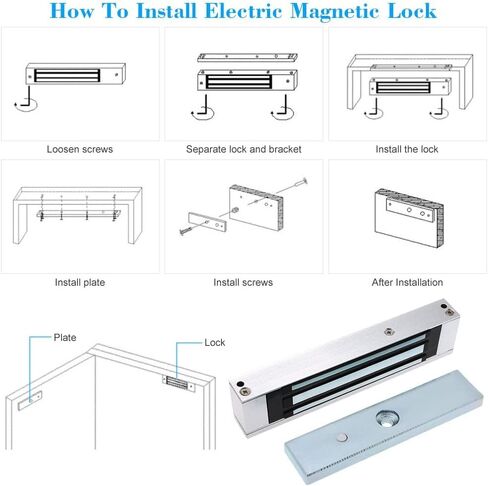

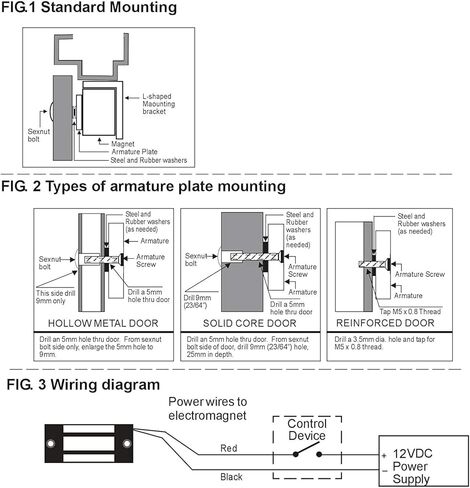

By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.

Specification:

Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force:150LBS/60KG
Input Voltage: DC 12V
Operating Temperature: -10C to +55C (14 to 131F)
Operation Current: 100mA

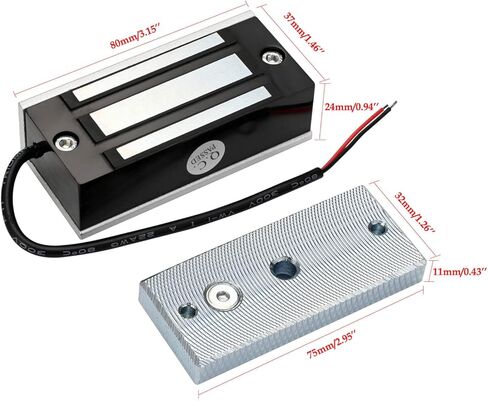

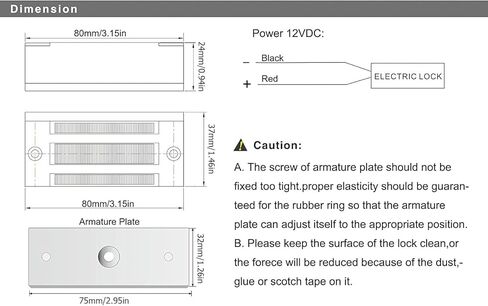

Size: 2.95L x 1.26W x 0.43H (in)/ 80L x 37W x 24H (mm)
Armature plate: 2.95L x 1.26W x 0.43H (in)/ 75L x 32W x 11H (mm)
Package Weight: Approx. 1.2lb (0.54KG)

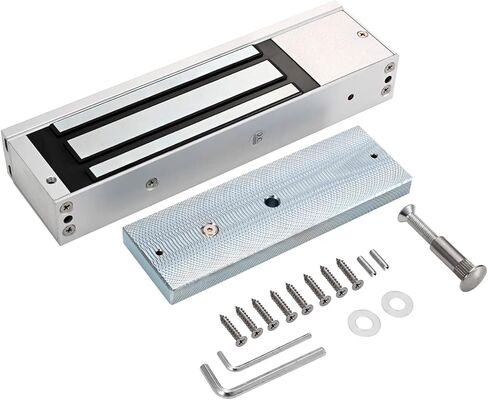

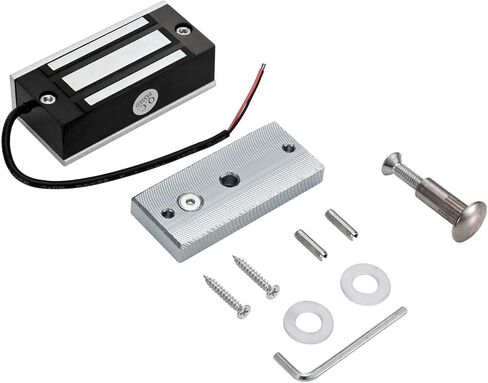

Package list:

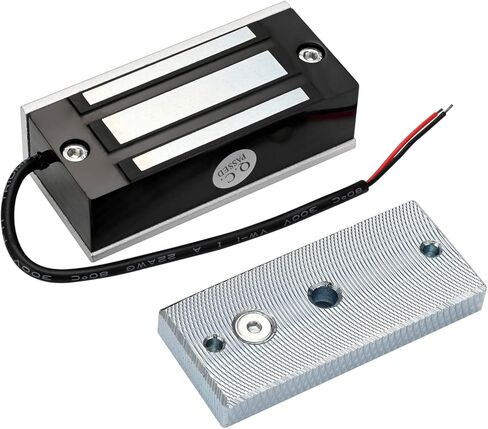

1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
