BSIDE Handheld Oscilloscope 3.98'' Touchscreen Digital oscilloscope Dual Channel 50MHz Bandwidth Portable Oscilloscope Signal Generator 250MSa/s Sampling Rate Tablet Automotive oscilloscope

KWD 35.500
Brand
MAXRIENY
– 1 +

Special Features

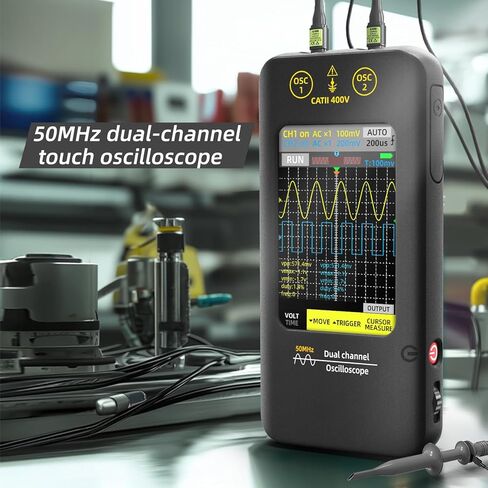

  • Dual-channel 50MHz Oscilloscope: This digital oscilloscope is a fully functional and highly practical 2-in-1 dual-channel 50MHz oscilloscope signal generator. With 250MSa/s real-time sampling rate, it can acquire signals more quickly and accurately to display waveforms.
  • Professional design: Portable oscilloscope with full trigger function (auto/normal/single). It can perfectly measure periodic analog signals and non-periodic digital signals.

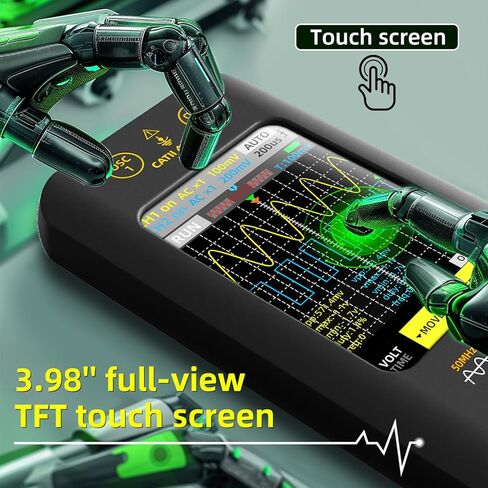

  • 3.98-inch touch screen: This handheld tablet oscilloscope with a compact and slim body with 3.98-inch touch screen is easy to use and easy to read data and view waveforms. Equipped with EVA storage bag, easy to carry.
  • Easy measurement: The oscilloscope is equipped with efficient one-button automatic setting of all parameters to display the measured waveforms without tedious adjustments. Long press the AUTO button to quickly calibrate the baseline and measure the waveforms quickly to improve work efficiency.

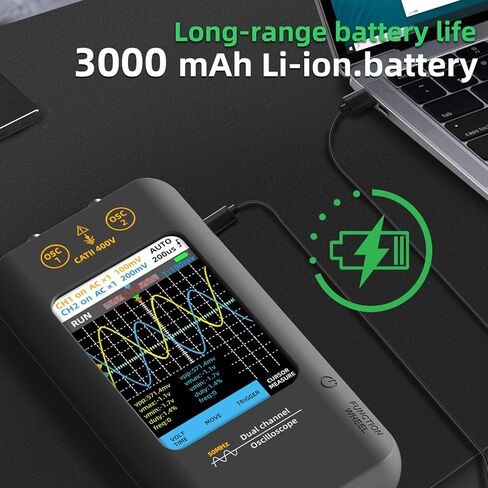

  • Large-capacity battery: Automotive oscilloscope has a built-in 3000 mAh lithium-ion battery, which lasts about 8 hours and has a longer service life. The Type-C interface supports data transfer and charging.

Description

Features:
2-in-1 Dual Channel 50MHz Oscilloscope Signal Generator
3.98 TFT full-view angle touchable screen
Supports Chinese and English switching, adjusting backlight, formatting and data retention, data transfer, storing preview and exporting, customizable specialized graphics, etc.
Single-channel signal generator can measure 7 kinds of waveforms
Simultaneous output of waveforms when the signal generator is running
Long-lasting 3000mA lithium battery
Afterglow can be set for any length of time
Ultra-thin body with soft silicone cover, shockproof and drop-proof.
With EVA storage bag, more portable.

Specification:
Display: 3.98 inches with resistance touch TFT LCD screen
Bandwidth: 25MHz dual-channel real-time sampling
Real-time sampling rate: 250MSa/s
Number of channels: 2 channels DC AC
Input impedance: 1MΩ, @16pF
Probe attenuation: × 1, × 10
Maximum input voltage: ×1 range Horizontal sampling rate range: 1.5Sa/s-250MSa/s
Vertical sensitivity: 20mV/div-10V/div
Automatic measurement: period, frequency, peak-to-peak, maximum value, minimum value, duty cycle, root mean square
Display Mode: XT,XY,Scroll
Afterglow time: min,500ms,1s,10s,unlimited
Signal Generator: Waveform type: Sine, Square, Triangle, Half, Full, Ramp, DC
Frequency range: 0Hz-2MHz
Output channel: 1
Output amplitude: 0.1V-3.0V
Minimum resolution: 1Hz
Square Wave Duty Cycle: 1%-99%
Size: 170.0*80.9*23.9mm
Weight: 268g

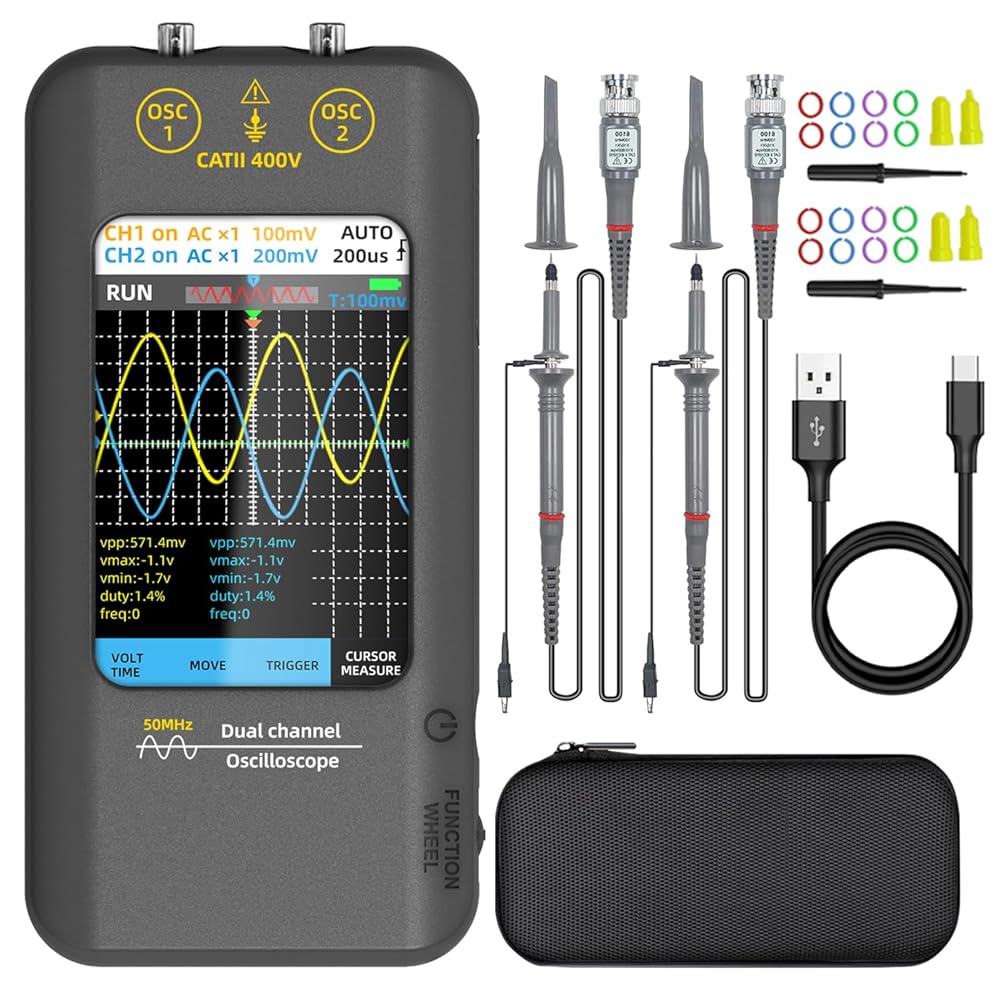

Package content:
1×O2 dual-channel touch screen oscilloscope
1×Oscilloscope probe
1×Red and black alligator clip probe
1×USB type-C data cable
1×EVA storage bag
1×User's manual
1×Regulating Rod 8×Color ring
