Specification:
Pressure Range: 0-3600PSI;
Pressure Connection: NPT1/4 male;
Display Unit: Bar, PSI ,MPa, Kgf/cm2;
Overload Capacity: 150%;
Accuracy: 1%FS;

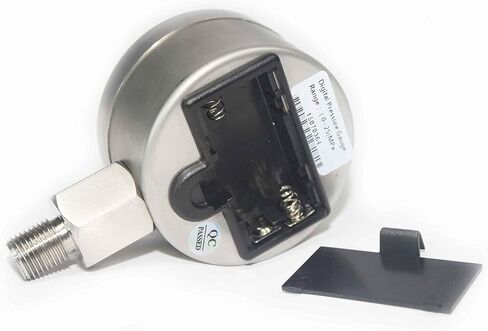

Input Voltage: 3V (two 1.5V AAA batteries);
Working Temperature: -20C-70C;
Footer Material and Pressure Connection: 304 Stainless Steel;
Protection Class: IP65
Thickness: 1.57";
Outline Dimension: 2.48";
Length:3.89".

Features:
Button Description:
Power button: press power button continuously for 3 seconds to Turn On or Turn Off;
Power button: shortly press Unit button to change the unit;
LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds.
LIGHT button: Long press for 5 second to calibrate zero

Package Content:
1 x Digital Pressure Gauge;
1 x Manual.
