-7%

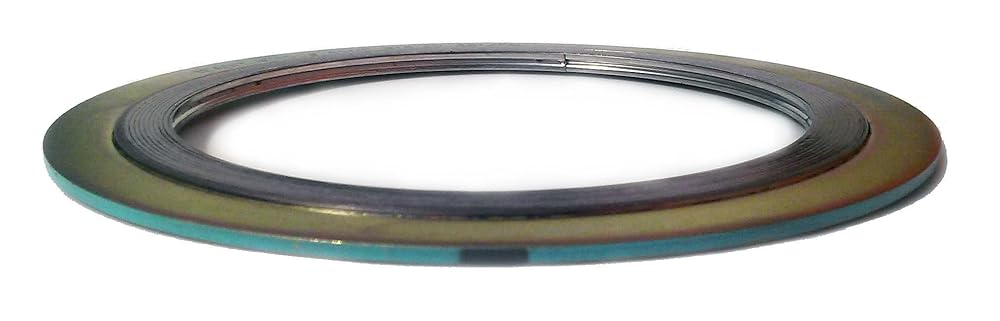

Sur-Seal, Inc. Teadit 90002500321GR1500 Spiral Wound Gasket, Turquoise, 321SS/FG (Flexible Graphite), 2.75" Inside Diameter, 6.50" Outside Diameter, -150 to 850 Degree Fahrenheit Temperature Range for 2-1/2" Pipe Size
Special Features
- ASME B16.20 Gaskets for ASME B16.5 Flanges/Class 1500

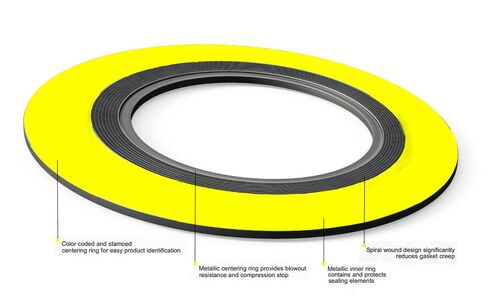

- Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter
- Spiral winding (sealing element) consists of metal and soft filler material
- Temperature range (F) : -320 to 850 Degrees
- Durable; easy installation and removal
Description
Spiral Wound Gasket, 2-1/2" pipe size, 1500# class flange, 321SS windings with a Flexible Graphite Filler
-
Assigned by Sterling Seal & Supply 141026.868.000 Gasket, Spiral, 13.00 X 12.25, 0.19 Thick, CL 600, Gasket, Spiral Wound; 316L WINDINGS, Flexible Graphite Filler
KWD 168.500
-
Sur-Seal, Inc. Teadit 90004304GR300 Yellow Band with Gray Stripe Spiral Wound Gasket, High Temperature (Thermal Cycling) and/or Pressure Variations, 4" Pipe Size, 300# Class Flange, 304SS Windings with a Flexible Graphite Filler
KWD 4
-
Sterling Seal and Supply , Inc. API 601 9000IR1316PTFE300 Green Band with White Stripe 316SS/PTFE Spiral Wound Gasket with 316SS Inner Ring, -150 to 500 degrees F Temperature Range, 1.06" ID, 2.88" OD, for 1" Pipe Size
KWD 2.500
-
Sur-Seal, Inc. Teadit 9000IR6304GR900 Spiral Wound Gasket with 304SS Inner Ring, 6" Pipe Size x 900# Class Flange x 304SS/Flexible Graphite
KWD 10.500
