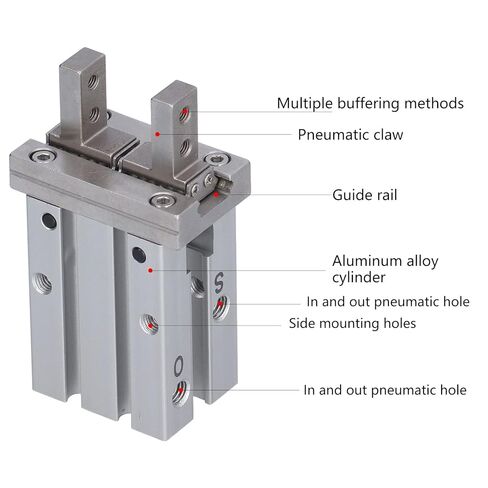

Features
The cylinder is equipped with a circlip super sealing and self lubricating seals to prevent gas blow by in the left and right chambers of the cylinder, with small errors and high working efficiency.
1.Hard Oxidized Cylinder Block.The cylinder is a hard oxidized cylinder block, which increases the surface hardness, is not easy to deform, and is compression resistant and durable.
2.The cylinder adopts high strength accuracy guide rail, which is not easy to loosen, the steel ball does not fall, the work is smooth, and the accuracy is high.
3.Can Bear Side Load. This finger cylinder can bear larger side load and moment, suitable for accuracy assembly.This is a 0.7Mpa cylinder made of high quality aluminum alloy, strong and durable, not easy to damage.

Specification

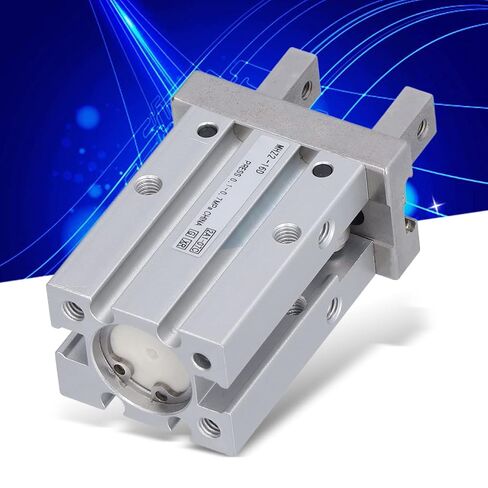

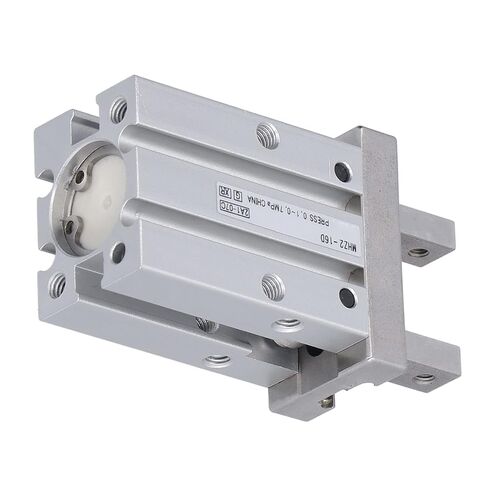

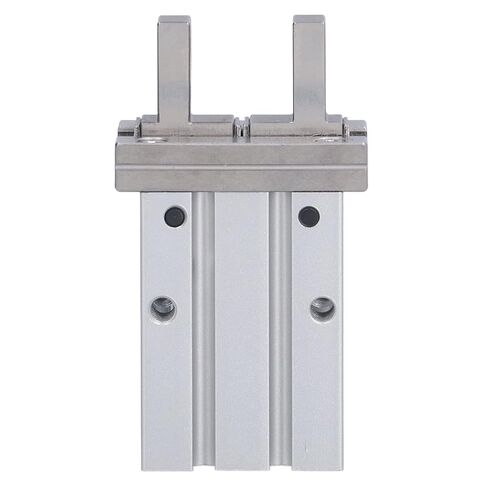

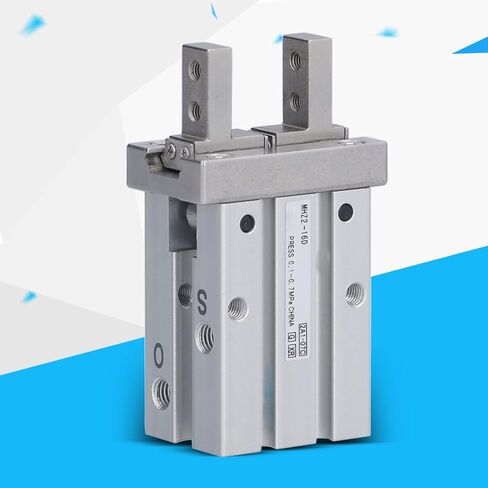

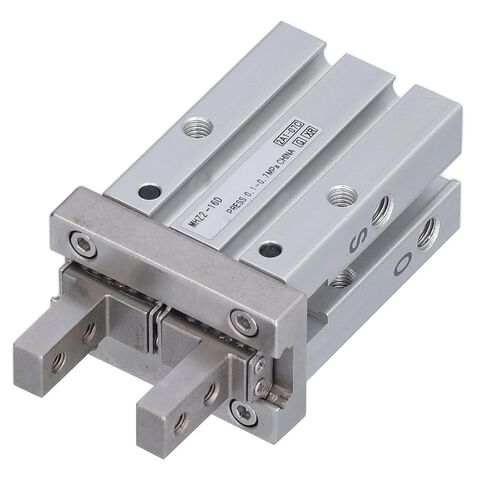

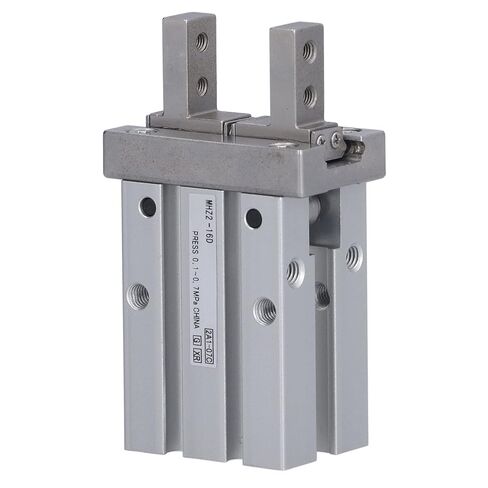

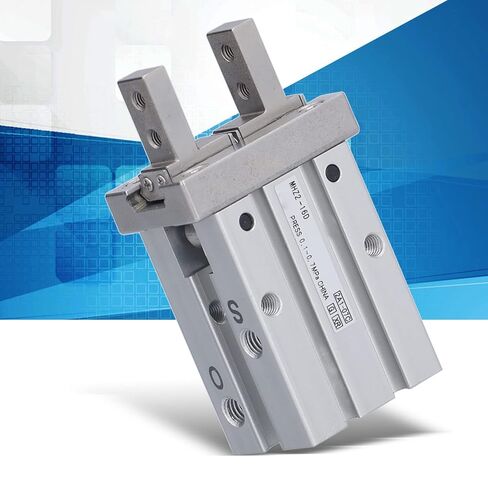

Item Type: Gripper Pneumatic Cylinder
Material: Aluminum Alloy

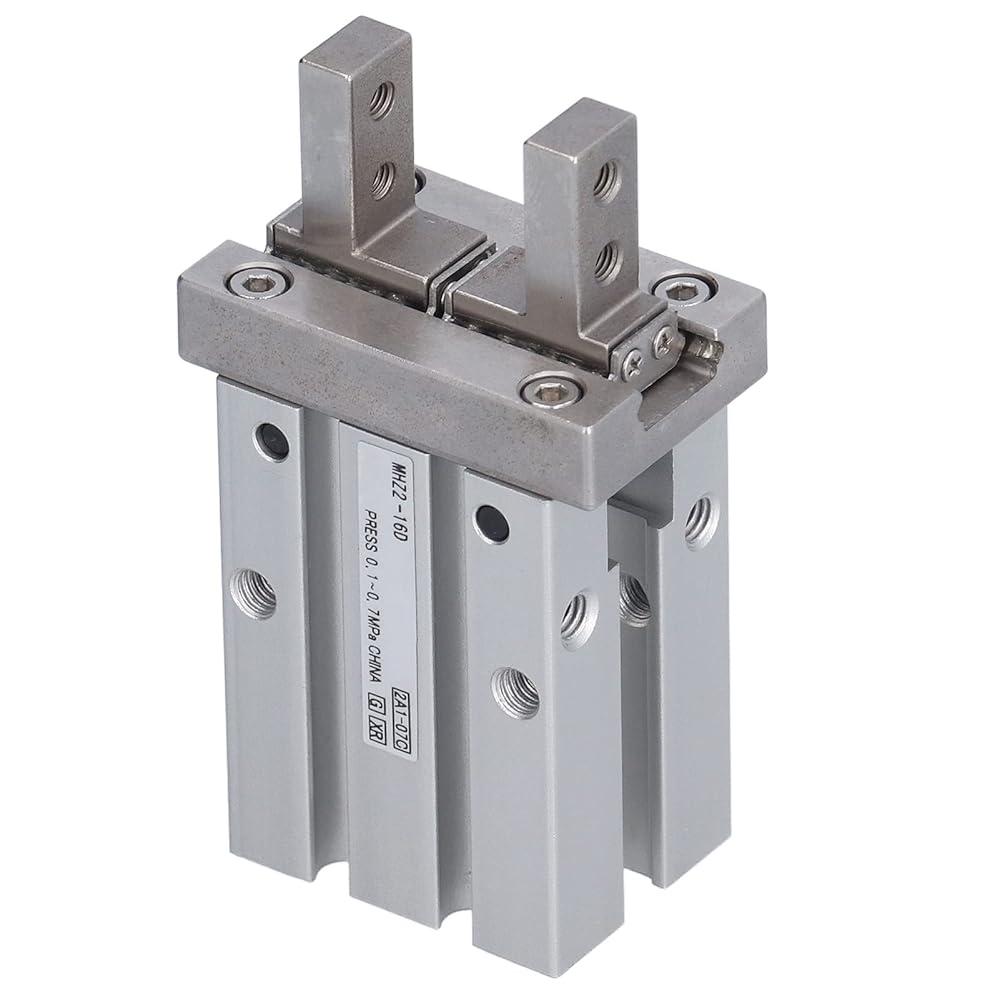

Model: MHZ2-16D
Bore Diameter: Approx. 16mm / 0.63in
Working Pressure: 0.1-0.7MPa
Airs Inlet Thread: M5-0.8
Claw Distance When Closed: Approx. 14.9mm / 0.59in (There is an error of ±0.3mm in manual measurement)
Claw Distance When Opening: Approx. 20.9mm / 0.82in (There is an error of ±0.3mm in manual measurement)
Stroke: Approx. 6mm / 0.24in
Outer Diameter Clamping Force: 34N
Inner Diameter Clamping Force: 45N
Environment and Fluid Temperature: -10~60℃
Repeatability: Approx. ±0.01mm / 0.0004in
Maximum Frequency: 180c.p.m
Give Oil: Not Needed
Liquid: Airs
Action Type: Double Action
