35KG RC Servo Motor “ High Torque Large Power " Stainless Steel Gear Waterproof Digital Servos

KWD 8

Brand
ANNIMOS
Weight
70 g
Size180 Degree
1 +

Special Features

  • High Quality Large Torque Servo
  • 0.14 Transit Speed , 458oz-in of torque@5.0V
  • 0.12 Transit Speed,and 583oz-in of torque@6.8V

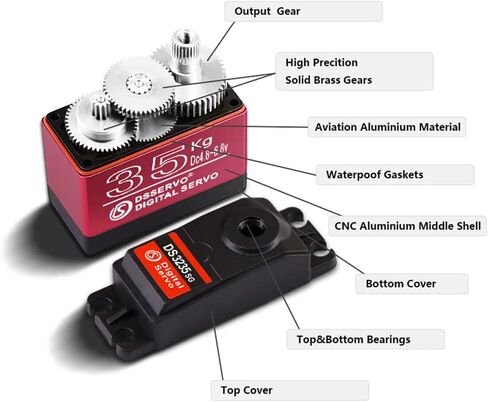

  • Full metal gears and dual ball bearings
  • Ideal for any 1/8 1/10 1/12 scale vehicle application

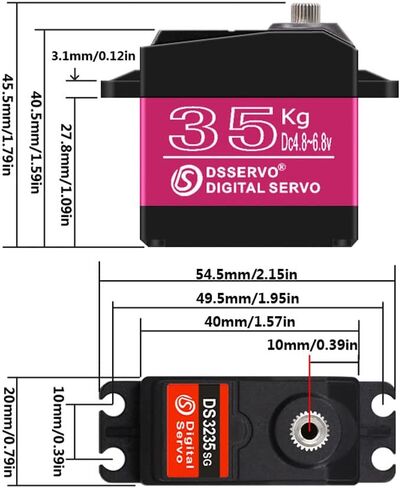

  • Dimensions(L x W x H): 1.57x0.79x1.48in (40x20x37.5mm)
  • Weight: 58g±2g

Description

Model:DS3235SG
Operating Voltage: 4.8 – 6.8 Volts DC

Specifications:
Torque:
@5V: 33kg.cm(458oz-in)
@6.8V: 42kg.cm(583oz-in)

Speed:
@5V: 0.14sec/60°
@6.8V:0.12sec/60°

Operating Temperature: -25°C~70°C

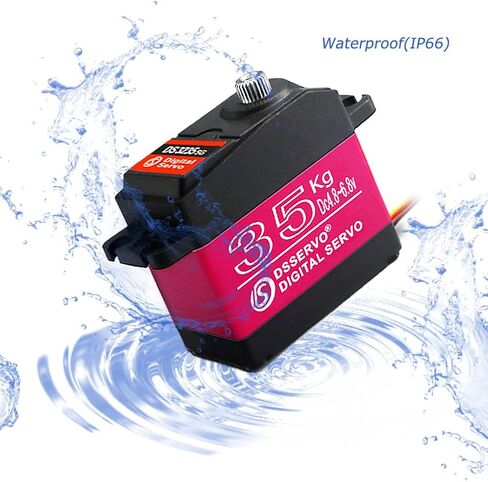

Waterproof: IP66
Limit angle: 360°
Bearing: 2BB
Horn Gear Spline: 25 Tooth , (Diameter:5.9mm)
Case Material : Engineering Plastic & Aluminum Alloy
Connector Wire: 17.7in (450mm)
Motor Type: Carbon Brush Motor

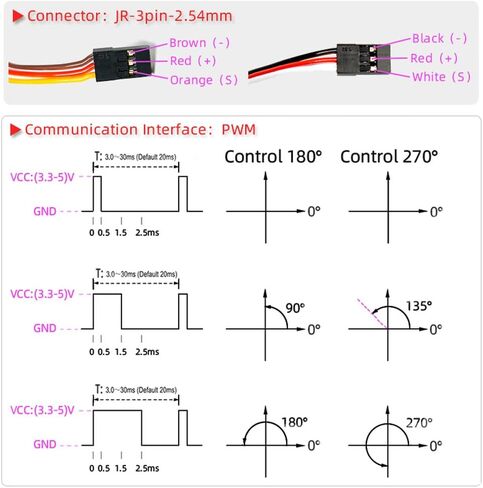

Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500~2500usec
Neutral Position: 1500usec
Running Degree: 180±3°(PWM 500~2500usec) or 270±3°(PWM500~2500usec)
Dead Band Width: 3 usec
Rotating Direction Counterclockwise: (when 1000~2000usec)
CE /RoHs:Yes

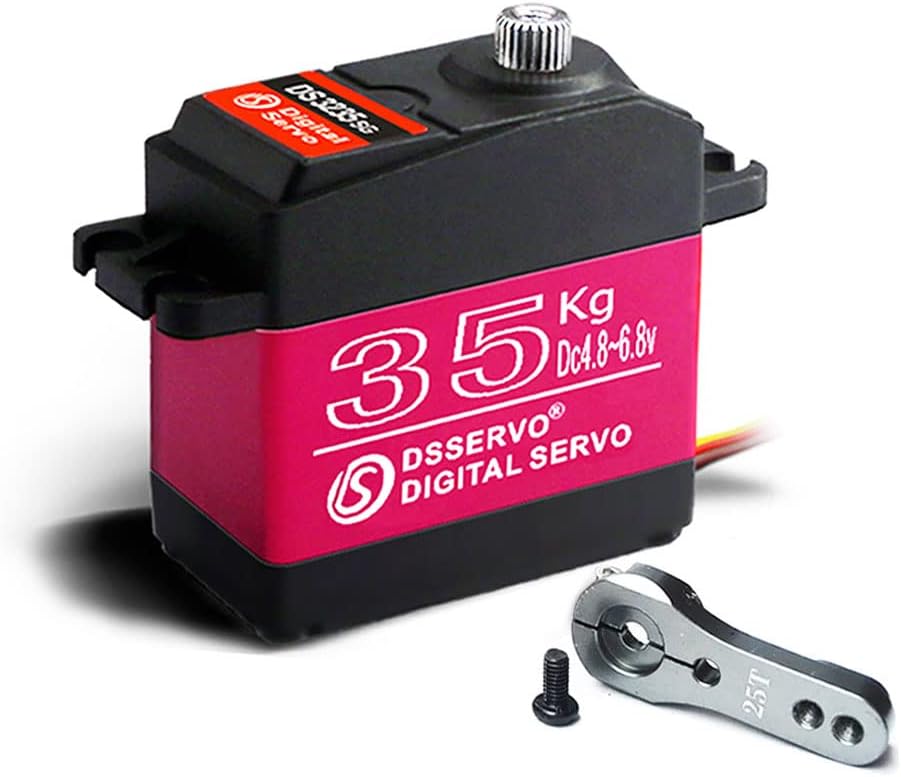

Package: (As Shown On The Picture)
1 pcs Servo
1pcs Servo Arm

More Options:
✔Only $27.99 Pack of 2 20KG Servos, Please Search ASIN: B07TKTQ2NZ
✔Only $35.99 Pack of 2 25KG Servos, Please Search ASIN: B0C69KY39C
✔Only $52.89 Pack of 2 35KG Servos, Please Search ASIN: B0C69KF77Q
✔35KG Coreless Digital Servo, Please Search ASIN: B07SWST8D6 or B07SWW9NDR
✔45KG Coreless Digital Servo, Please Search ASIN: B0C69BXL6V or B0CCPDYBDQ
✔35KG 7.4V Digital Servo, Please Search ASIN: B0CDQ95Q49 or B0CCPHT83N
✔Robot Servo with Brackets, Please Search ASIN: B0C69NNP9P
