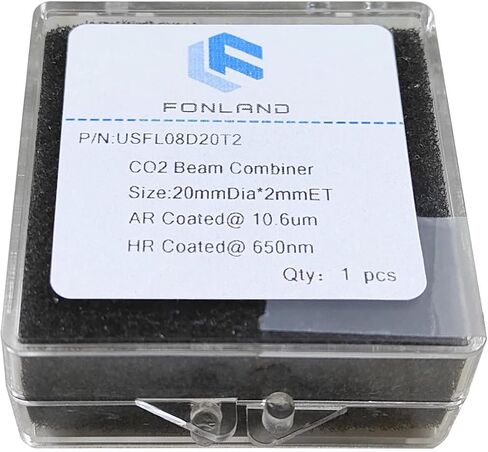

FONLAND CO2 Laser Beam Combiner Lens

✔Principle: The beam combiner is a half-mirror, it make the two or more wavelengths of light synthesized into one optical path by the transmission and reflection methods.
✔Function: Combine the visible red line with the invisible 10.6um CO2 laser line to make the laser beam visible.
✔Application: Widely used in CO2 laser industry, mainly make laser and light visible. It's generally used to combine the 10.6um infrared laser and 500-700nm red light together.

Specification
Material: USA CVD ZnSe
Wavelength: 10.6μm
Diameter: 20mm/0.79inch, 25mm/0.98inch
Thinkness (mm/inch): 2mm/0.08inch
Dia. Tol: ±0.1mm
Thk.Tol: ±0.1mm
CA: ＞90%
Coating: AR&10.6μm；HR&500-700nm

Note: This item not include the Beam Combiner Mount, Include a pcs Beam Combine Lens.
