Nominal Coil Voltage: 12VDC
Contact Form: SPDT
Contact material: AgSnO alloy
Resistive load: 50A
Operate time : 20ms Max.
Release time : 20msMax.
Insulation resistance: 20MΩ Min. (DC 500V)
Operating ambient temperature: -40°C~ +125°C (no freezing)
Weight: Approx. 40 g

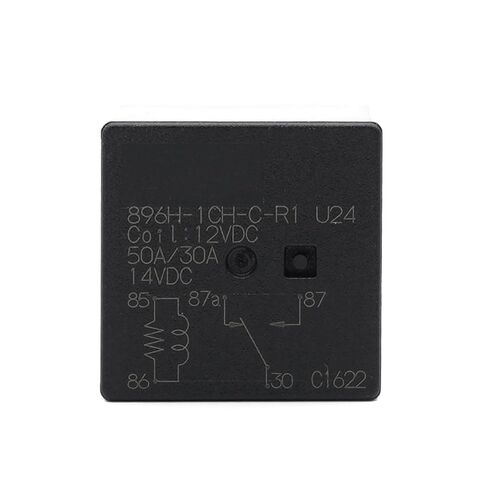

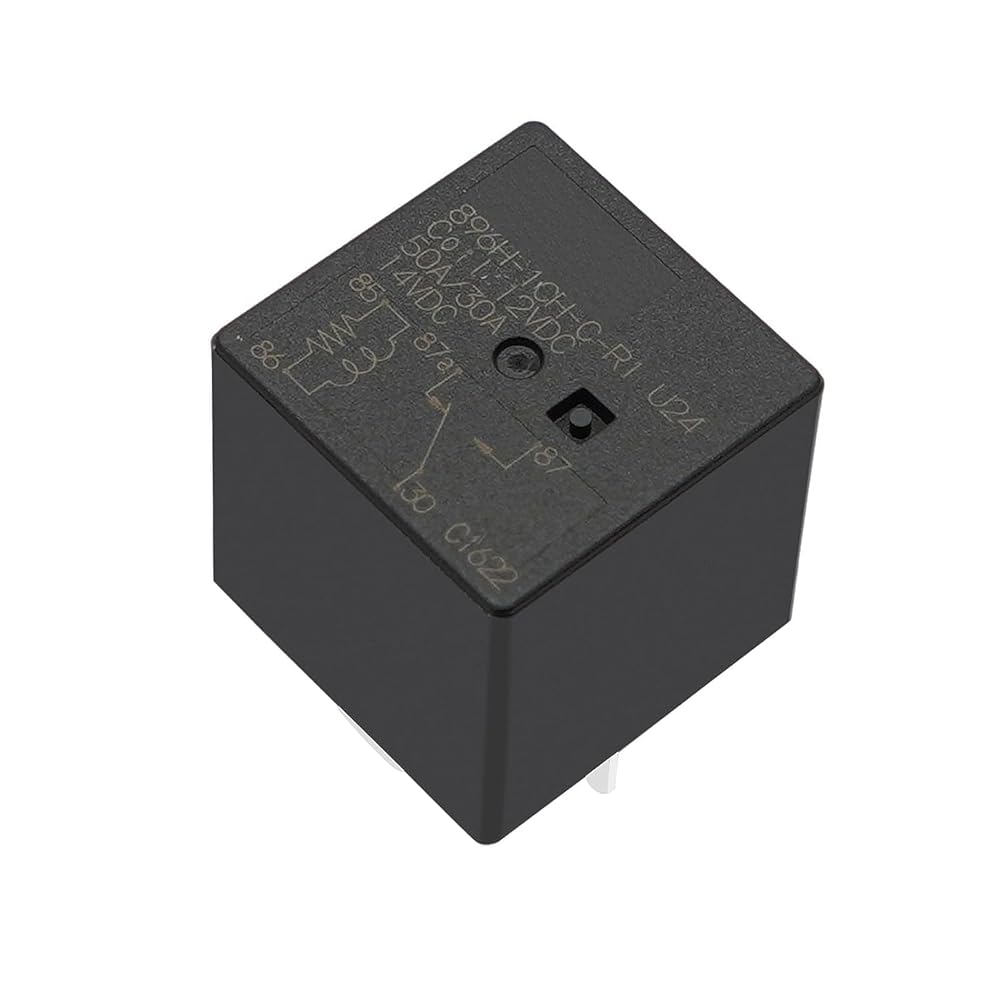

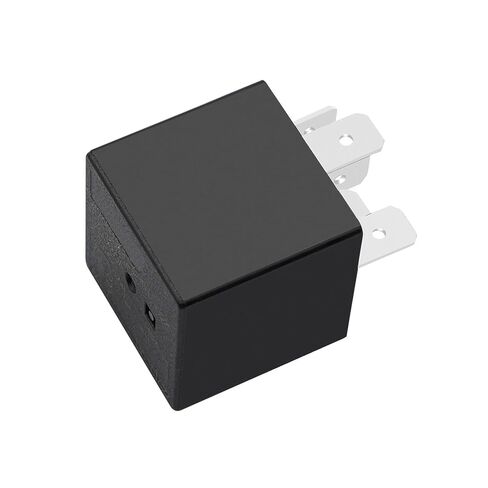

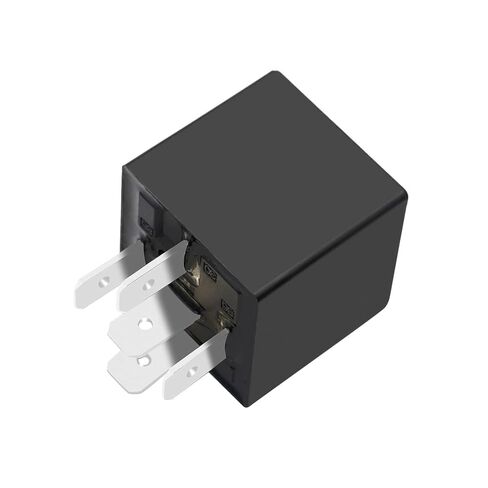

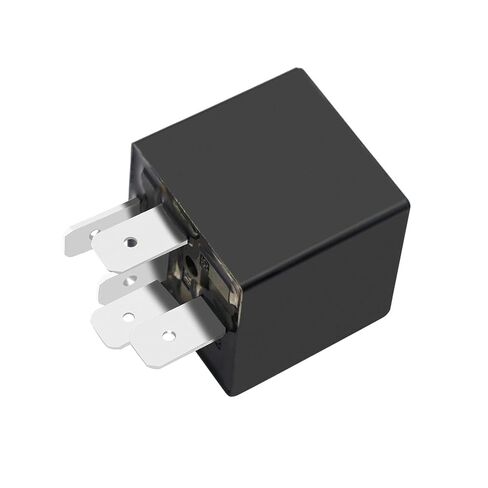

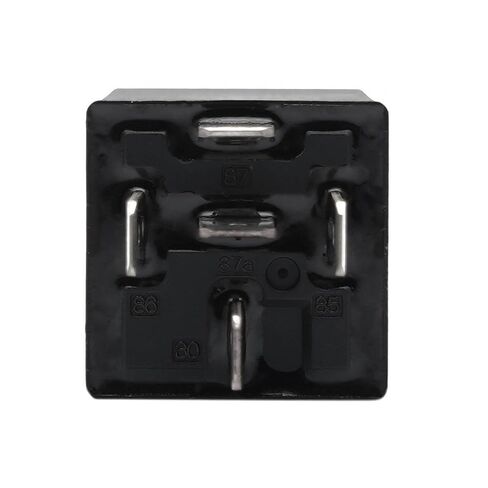

Package Content: 1 x 896H-1CH-C-R1 U24 12VDC
With a nominal coil voltage of 12VDC, this relay offers reliable performance. The contact form is SPDT (single pole double throw), providing versatility in switching applications.
The contact material is made of AgSnO alloy, ensuring durability and longevity. This relay is designed for resistive load up to 50A, making it ideal for demanding automotive systems. With an operate time of 20ms Max. and release time of 20ms Max., this relay offers quick and efficient switching. The insulation resistance of 20MΩ Min. (DC 500V) ensures safety and reliability. Operating in a wide temperature range of -40~ +125°C, this relay can withstand extreme conditions.
Attention:
Do not switch the contactswithout any load as the contact resistance may become increased rapidly.
Do not use relays that exceedcoil ratings, contact ratings, and life expectancy, as doing so may result inRisk of overheating.
