EASY TO INSTALL--Open a hole in the panel (Dimension -85mm / 3 3/8", Depth-2-3/4") , Then put the gauge in the hole and screw down.

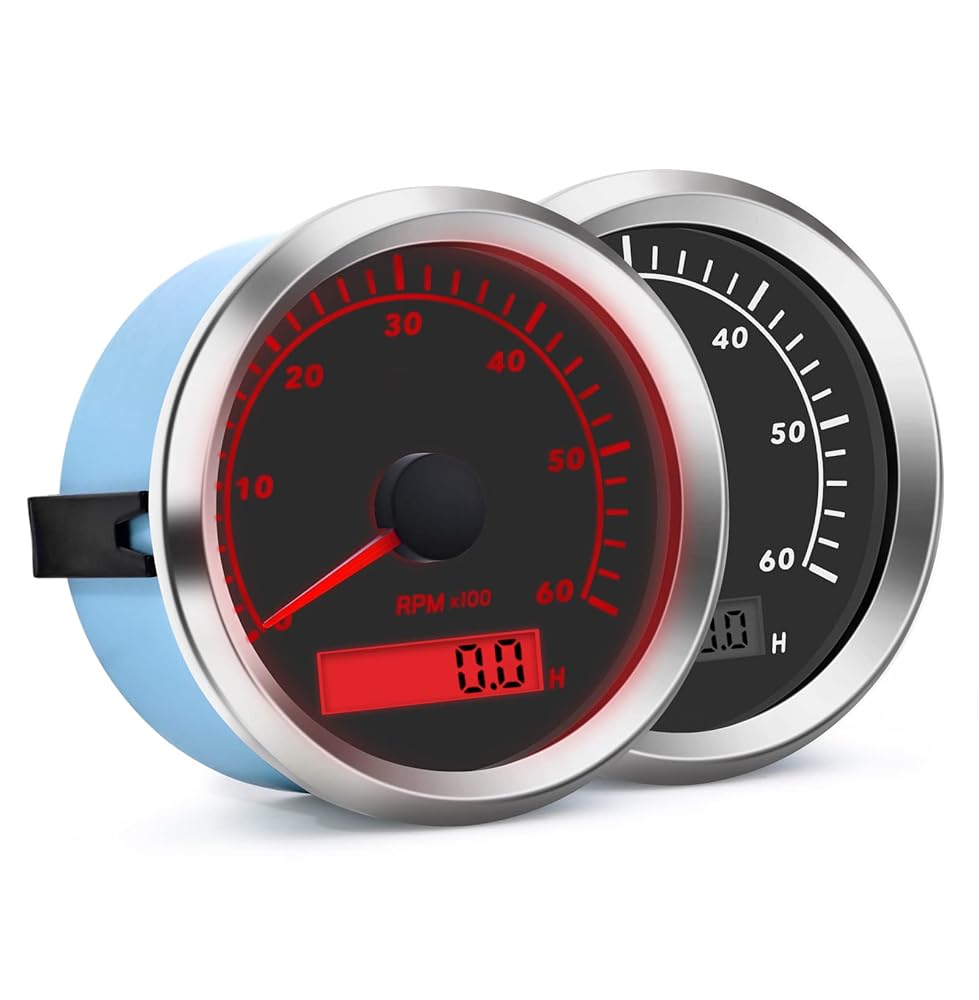

HOW TO LIGHT UP BACKLIGHT-- Connect the orange wire to positive power . Then power on , the Red LED would be light up automatically.
HOW TO SET TACH RPM RATIO--Power on, Press and hold the mode button for 3 seconds to enter the setting speed ratio mode. then adjust speed ratio from 1-300 according to your request. Save automatically.
HOW TO USE "TRIP01" "TRIP02" "Hour"--"TRIP01"(Default): hour will be automatically cleared after power off, the data will not be saved;- "TRIP02": hour will not be automatically cleared after power off. Users need press the back "SET" button for 3-5 seconds to clear. "Hour" value will be automatically saved after power off. it is accumulated hours.
HOW TO GET RPM SIGNAL-- Tachometer sometimes cannot get signal by ignition system. Please make sure you have a speed sensor on your motorcycle.

وصف

Description:
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))
- Backlight: Red
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

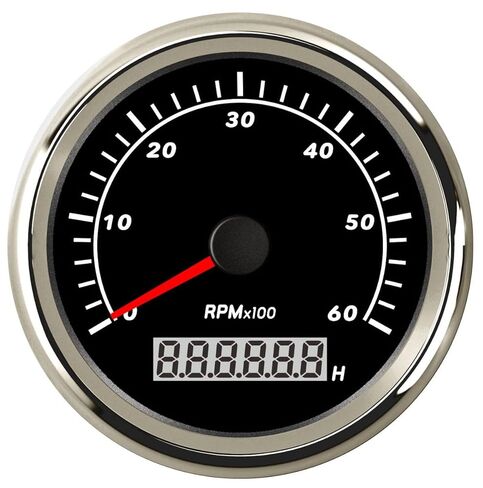

-Fits for all kinds of tacho sensors, and display the rotation speed of the engine. -Indicating Range: 0-6000RPM

Note: If your speed sensor is installed on the flying wheel panel, the RPM ratio is equal to the number of gears of the engine; If the speed signal takes from W-Terminal, the RPM ratio is equal to the half of the number of poles.

Package Includes:
1x Tachometer
1x Power Cord
1x Installation Instruction
