مميزات خاصة

The ESP32-C3 is a 32-bit RISC-V CPU that contains the FPU (floating point unit) for 32-bit single-precision operations with powerful computing power. It has excellent RF performance and supports IEEE 802.11b/g/n WiFi and Bluetooth 5(LE) protocols.
It is equipped with a wealth of interfaces, with 11 digital I / 0s that can be used as PWM pins and 4 analog 1/0s that can be used as ADC pins.
It supports four serial interfaces: UART, 12C and SPI. The board also has a small reset button and a boot loader mode button.
The ESP32C3 supermini is positioned as a high-performance, low-power, cost-effective iot mini development board for low-power iot applications and wireless wearable applications
ESP32C3supermini is a loT mini development board based on the ESP32-C3 WiFi/Bluetooth dual-mode chip, ESP32-C3 32-bit RISC-V single-core processor,running up to 160 MHz

وصف

Powerful CPU:ESP32-C3, 32-bit RISC-V single-core processor, running up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz,support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth:Bluetooth 5.0
Ultra-low power consumption:deep sleep power consumption of about 43ua
Rich board resources:400KB SRAM, 384KB ROM built-in 4M flash
Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup
Onboard led blue light:GPIO8 pin

Package include:

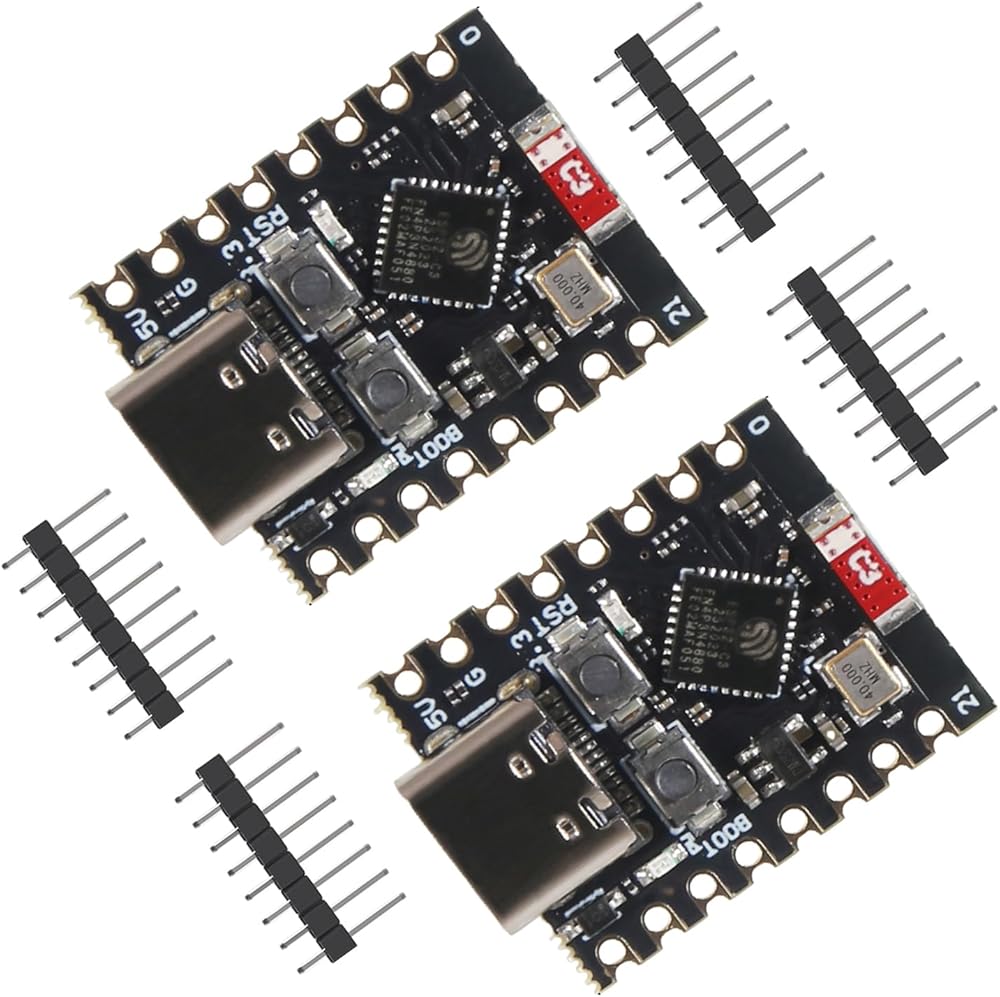

3 x esp32-c3 development board

مرحبًا،

بحث

2 قطعة C3 دبابيس غير ملحومة
