HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait HDMI VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen in Kuwait

VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen

KWD 19
Brand
FanyiTek
Category
Monitors
Weight
151 g
Colorfor LM270WQ1-SDA1 LM270WQ1-SDA2
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【LCD Controller Board】 Work for 2560x1440 30pin WLED EDP LCD Screen,Video input: Audio Input: HD-MI PC-Audio In,Audio Output: Speaker(4Pin PH2.0 connector).
  • 【Input Power Supply】12V DC more than 4A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
  • 【Compatible Screen models 】LM270WQ1-SDA1 LM270WQ1-SDA2
  • 【Important】 Please use in insulated environment. Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

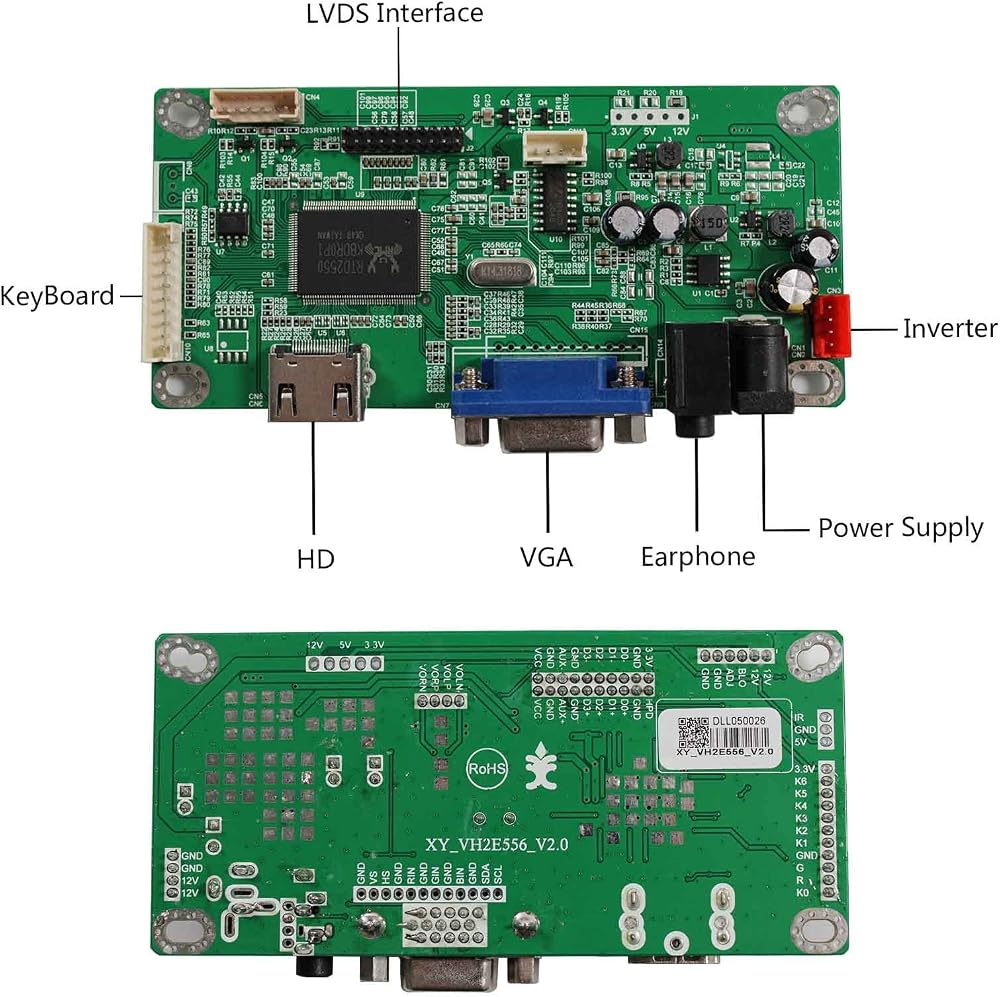

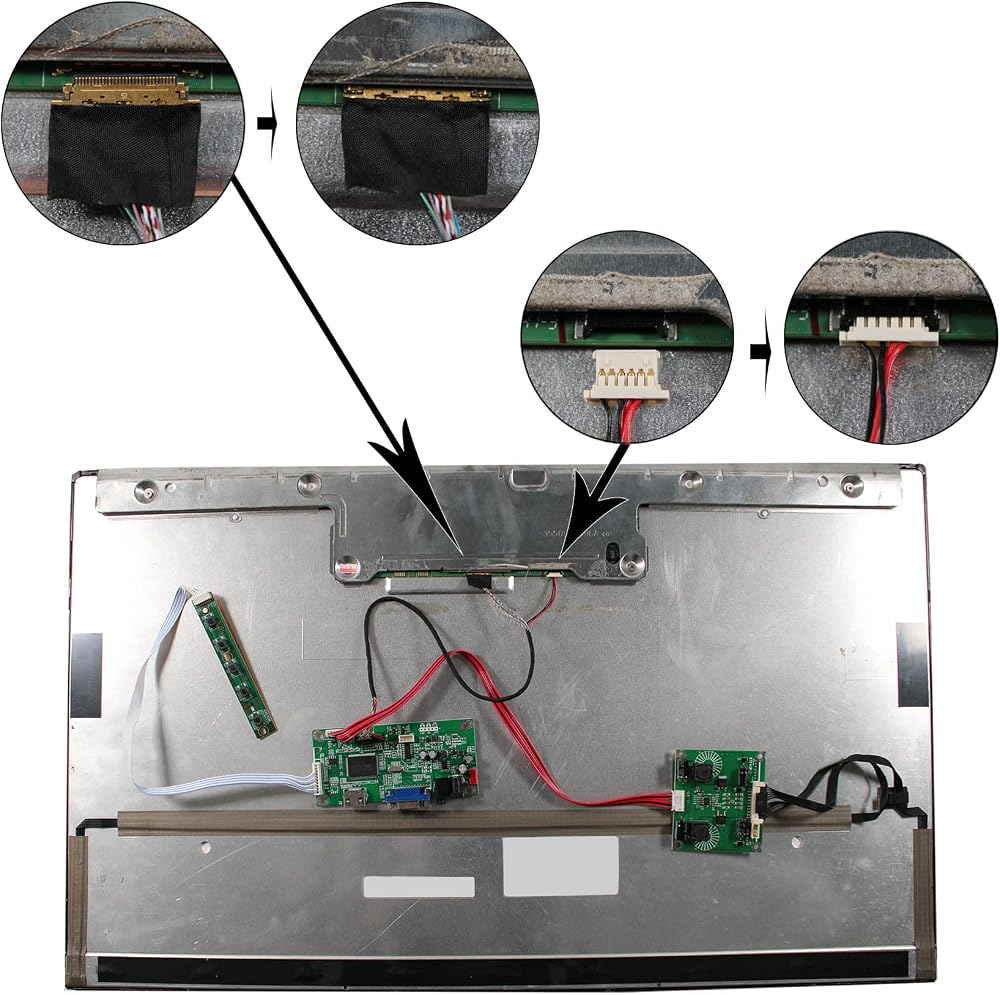

  • 【Plug and play】 Connecting for the cables and ports according to link picture details ,Power on ,Keyboard LED light become green,Then enter into HDMI/VGA signal cable ,with correct resolution ,the screen can work well.

Description

LCD Controller Board:
HD-MI VGA LCD Controller Board Work for LCD Screen
Input Power Adapter:12Vdc More than 4A.
Come In Standby Model When Not Input Signal
Standby Model Audio Input: HD-MI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English

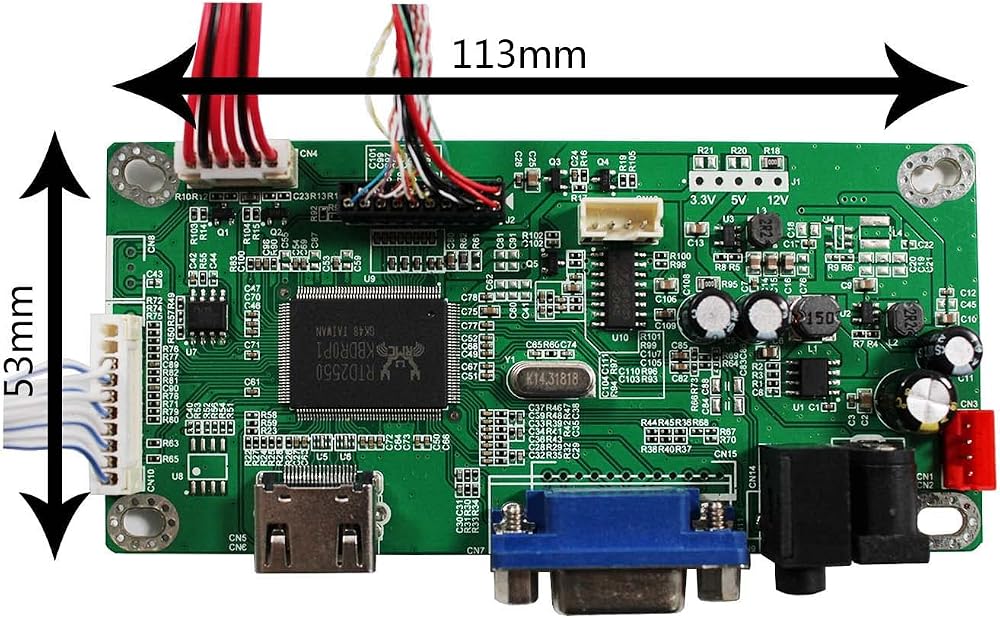

Board Size: 107mm x 55mm x 16mm

Compatible Work With:
27inch 2560x1440
LM270WQ1-SDA1 LM270WQ1-SDA2

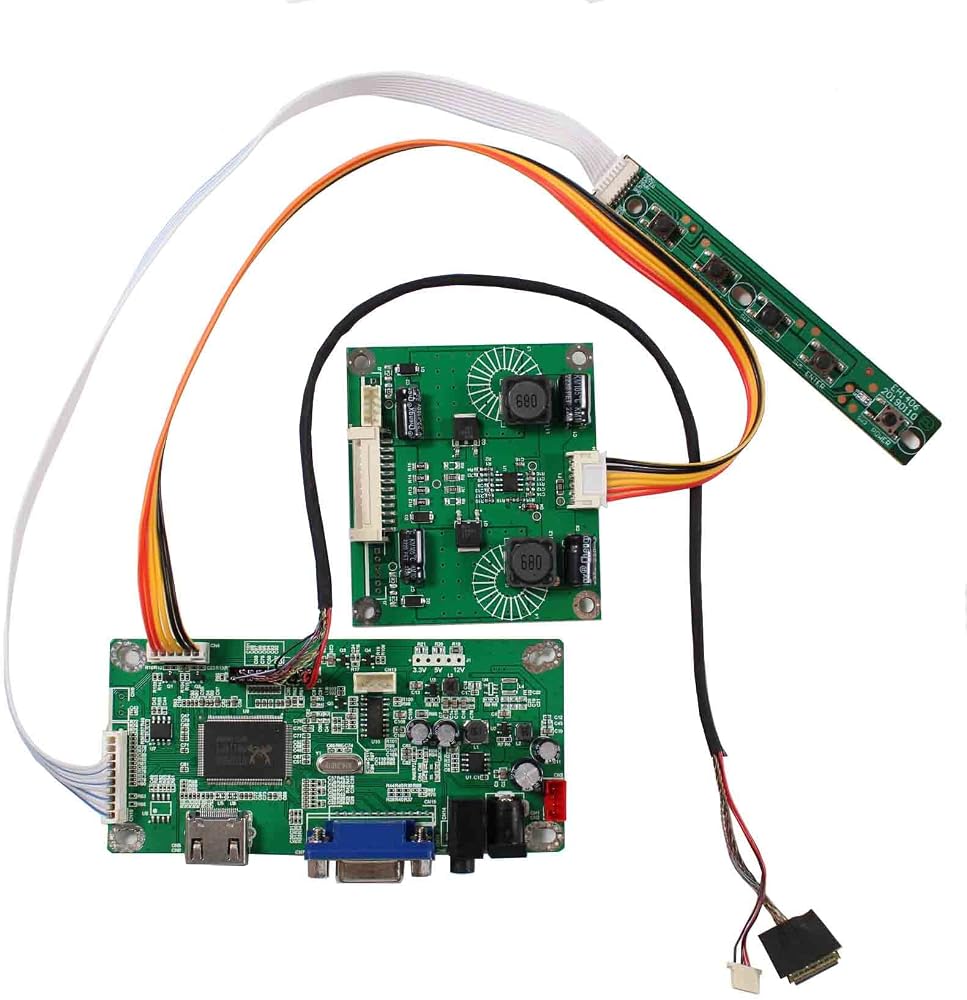

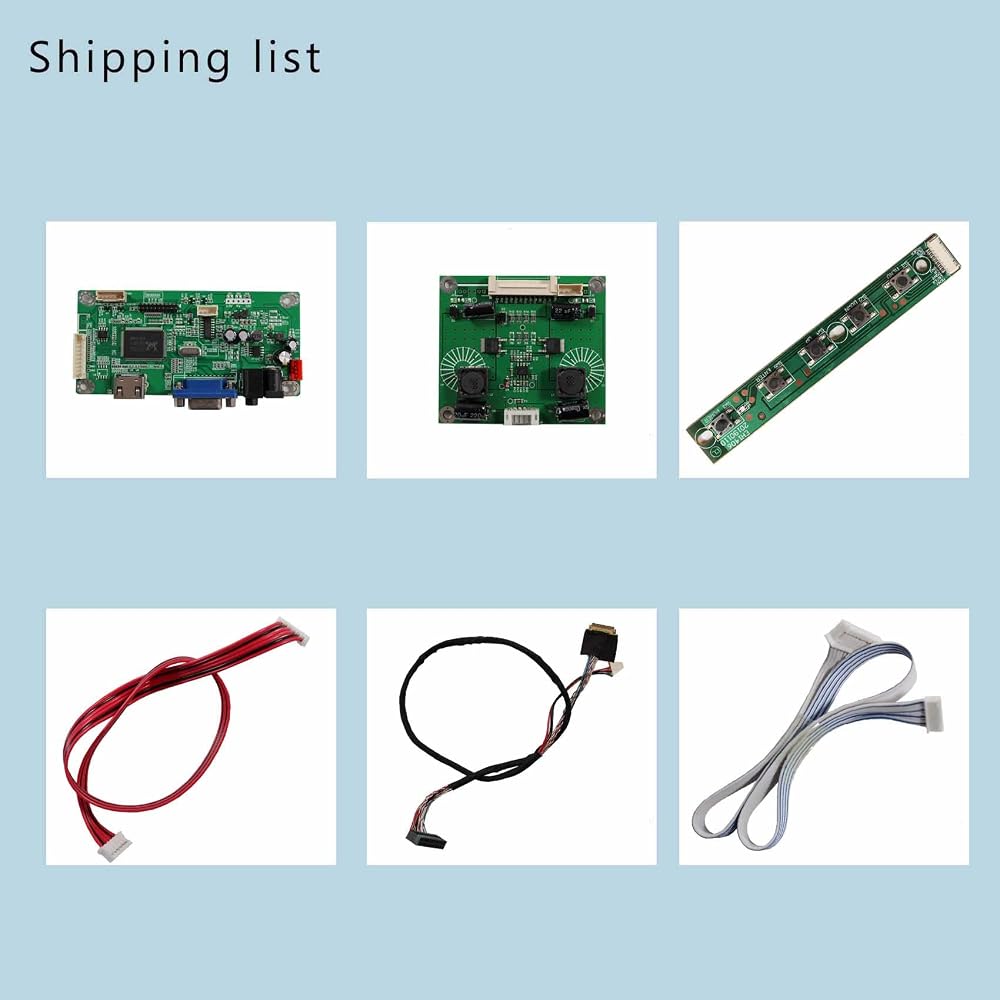

Packing list :
1× HD VGA LCD Controller Board VS-RTD2556HV-V2
1× Signal Cable
1× Controller Card
1× 30pin Cable
1× Keyboard With Cable
