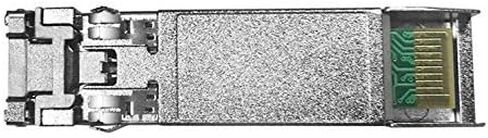

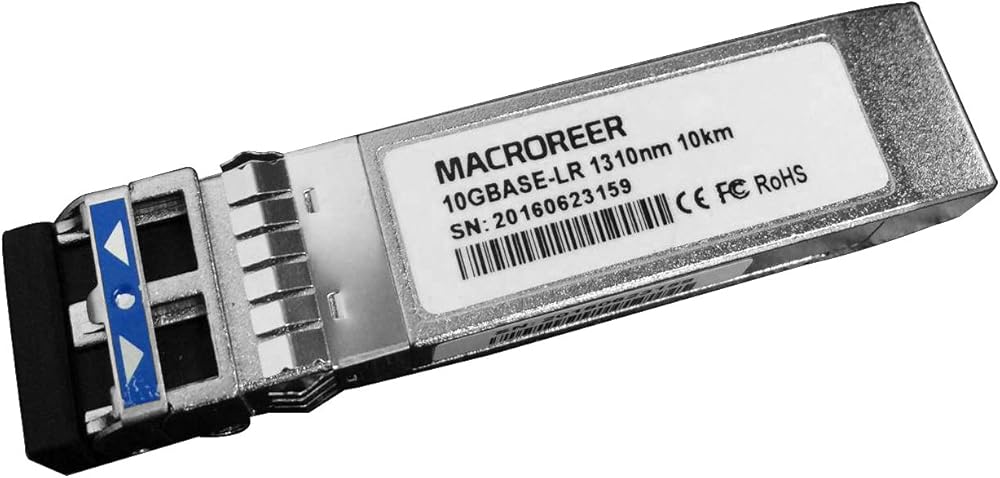

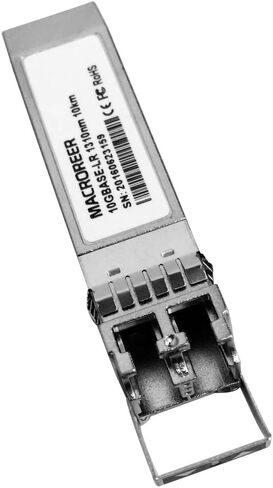

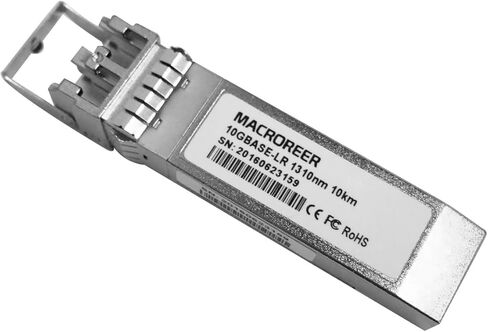

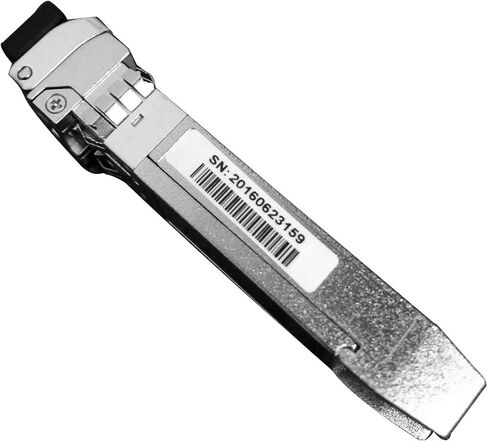

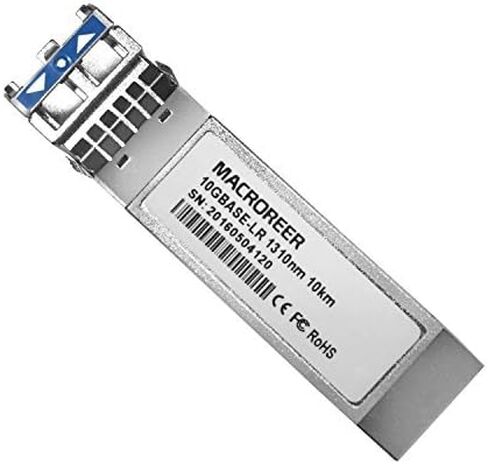

Macroreer for Brocade 10 Gbps LR SFPs are hot-swappable, low-voltage (3.3 V) digital diagnostic Ethernet optical transceivers that support high-speed serial links oversingle-mode optical fiber at signaling rates up to 10.5 Gbps. They comply with SFP mechanical (SFF-8432), optical, and electrical specifications (FC-PI-4) for LC duplex transceivers.

The Brocade 10 Gbps LR Ethernet optical transceiver is a 1310 nm SFP that complies with 10GBASE-LR specifications. Highlights include:
• 1310 nm DFB laser
• Optical interface specifications per IEEE 802.3ae 10GBASE-LR
• Diagnostic features per SFF-8472
"Diagnostic Monitoring Interface for Optical Transceivers," providing real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
• Industry-standard LC duplex connector
• 10 km link lengths on 9 μm single-mode fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
• Compliance with Restriction on Hazardous Substances (RoHS) directive
Platform Support
Brocade 10G-SFPP-LR is supported on a wide range of Brocade equipment.

VDX 6740
Brocade ICX 7250
VDX 8770
Brocade ICX 7750
Brocade ICX 6610
Brocade XMR/MLX
Brocade FCX
VDX 6740T
Brocade ADX
Brocade ICX 6450
VDX 6940-144S
Brocade ICX 6650
Brocade ICX 7450
Brocade CES/CER/CER-RT
Brocade FSX Gen3
