Xiaoyztan mixing nozzles are mainly for use with most standard 48.5/50ml cartridges, compatible with all major adhesive brands, making them easy to attach and detach from the glue applicator gun.

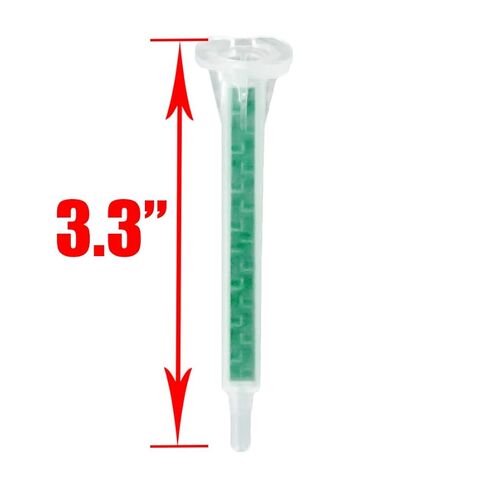

Specification: Mixing Ratios: 1:1 / 2:1; Volume: 1.3ml; Material: polypropylene; Tip Output Size: 1.5mm/ 0.059"; Tube Inner Dia.: 5.3mm/0.22"; Tube Outer Dia.: 7.6mm/0.3"; Bell Mouth Inner Dia.: 7mm/ 0.27"; Total Length: 3.3 inches.

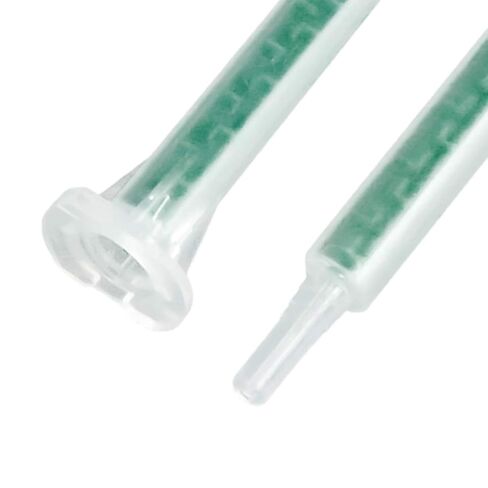

The square bayonet mixing tube with AB cones tight junctions, the liquid from AB plastic tube into the mixing tube in tube flow do cutting restructuring movement which played a mixed role.
Can be used to mix various double-part AB type glues with a viscosity of 50000CPS/25°C, the interior consists of a 工-shaped arrangement that divides the glue into four parts, and the mixing ability is twice as much as a circular tube.

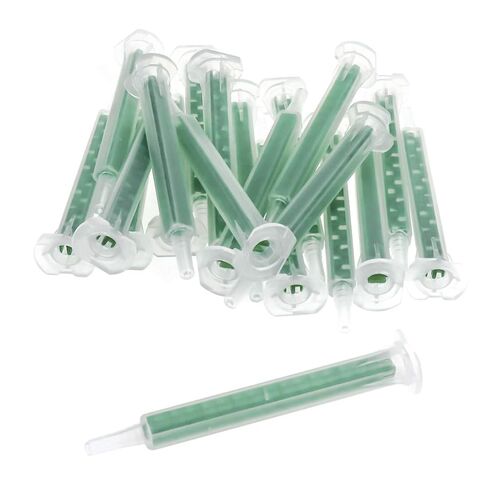

Cost-Effective & Reusable: With 20 pieces included in the pack, these nozzles offer a cost-effective solution for frequent users, ensuring you have enough replacements for multiple projects without the need for frequent reordering. Simply soak it in alcohol, thinners or other solvents after the work then it can be used in the next time.
Different Applications: Ideal for use in various industries such as construction, automotive, and DIY projects, these nozzles provide versatile solutions for mixing and applying epoxy and resin materials.
Notice: 1. When you start to use the mixing nozzle, please remove the end cap first to drain off a small amount of adhesive to ensure that both components can be squeezed out. 2. Before applying glue to the parts to be bonded, put on the mixing nozzle and discharge 25-50mm of glue first. 3. Some mixing nozzles can be stored with a mixing nozzle after mixing. 4. When reuse it, replace the old used mixing nozzle with a new mixing nozzle, and also squeeze out 25-50mm of glue before applying the glue to the surface of the component.
