Description:
The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.
Features:
High Torque: This DC 12V motor offers a high torque of 10KG.CM, making it suitable for heavy-duty applications.
Reversible: The motor is reversible, allowing you to easily change the direction of the output shaft.
Self-Locking: The worm gear motor is self-locking, ensuring that the output shaft remains stationary when the motor is not powered.

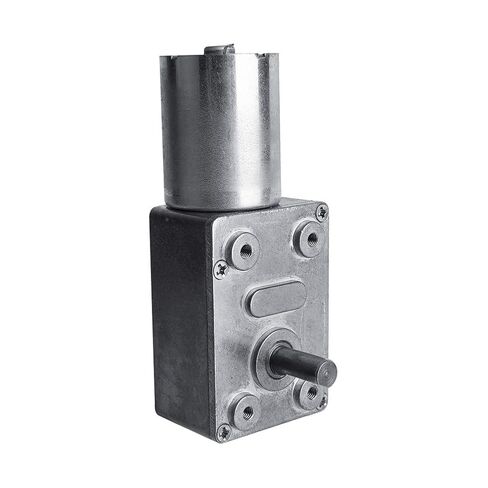

Vertical Shaft: The gearbox is designed with a vertically arranged output shaft, making it easy to adapt to different installation dimensions.
Versatile Application: This motor is ideal for use in various applications such as window and door openers, miniature winches, and more.
Specifications:
Voltage: DC12V
Load torque: 10KG.CM
No-load speed choice : 5rpm / 6rpm / 20rpm / 40rpm / 62rpm(optional)
Speed(RPM) Stall Torque(kg.cm) Stall Current(A) No-load Current(A) Reduction Ratio
5 36.4 0.82 0.12 1:972
6 36.4 0.82 0.12 1:972
20 28.2 1.14 0.22 1:400
40 15 1.15 0.31 1:224
62 16 2.52 0.41 1:224
Package contain:
1 x Geared Motor
