250pcs Wire Connectors Kit, Heat Shrink Marine Wire Connectors, 3 Colors Ring Fork Spade Butt Splice for AWG 22-10, Tinned Copper Waterproof Wire Terminals for Electrical, Automotive

KWD 8
Weight
50 g
– 1 +

Special Features

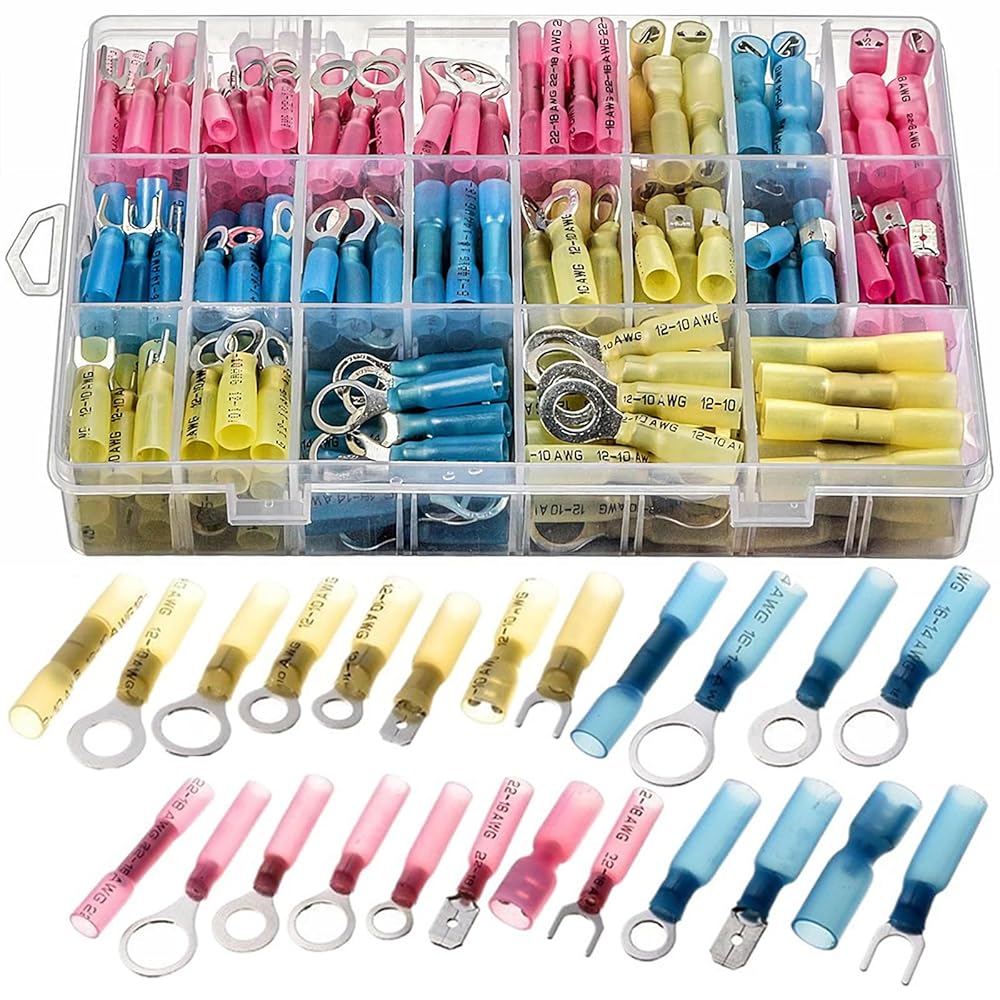

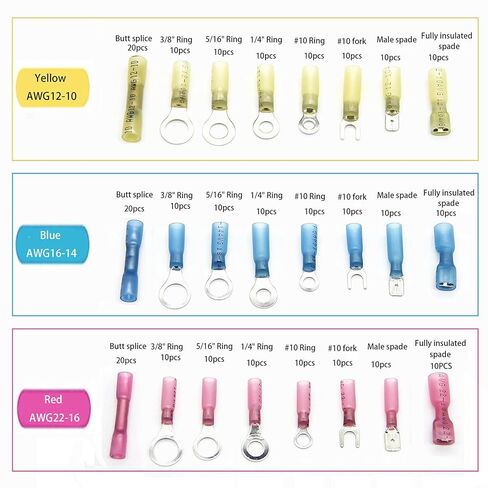

  • ✅【Package includes】Including 3 colors: red(AWG22-16), blue(AWG16-14), and yellow(AWG12-10), each color includes 8 types of terminal blocks: ring #10, ring 1/4'', ring 5/16'', ring 3/8'', Fully insulated spade, Male spade, fork #10(10pcs each), Butt splice (20pcs).
  • ✅【High Conductivity】High-quality copper provides excellent electrical conductivity, increased current, and ensures lower voltage drop to prevent wiring failures.

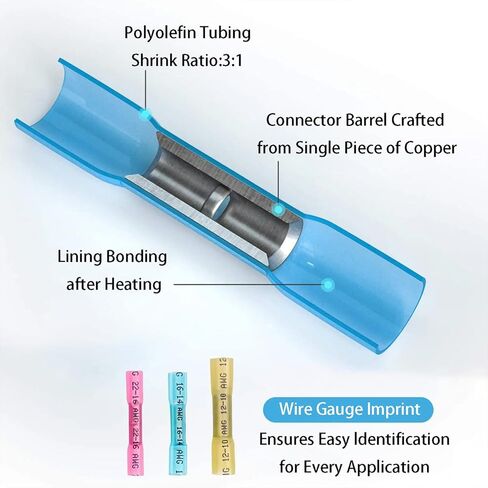

  • ✅【Surface Heat Shrinkable Tubing】Polyethylene hot melt tubing is stretch-resistant, stress-cracking resistant, minimizes mechanical damage, and provides waterproofing after heat shrinking.

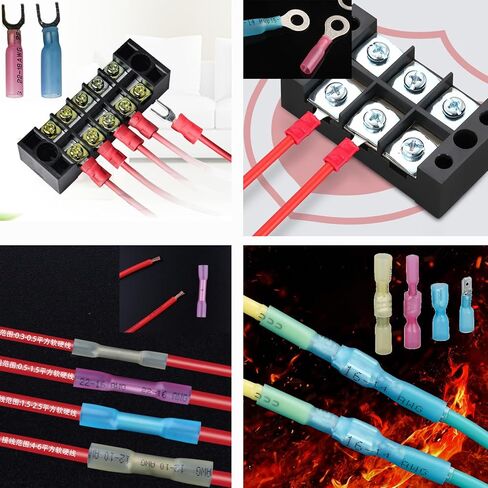

  • ✅【Wide Application】Excellent stability, waterproofness and conductivity provide long-lasting connections for motorcycles, dirt bikes, lawn tractors, RVs, fish finders and marine applications, etc.

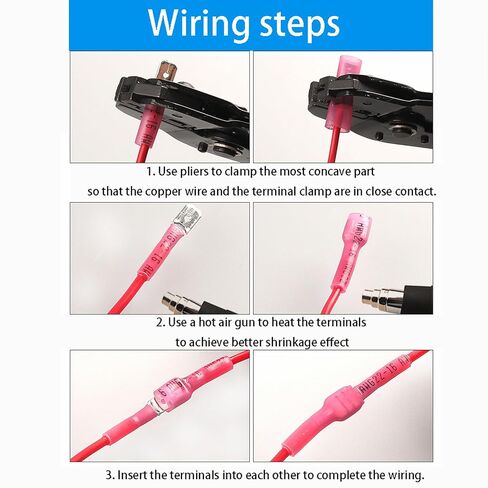

  • ✅【Easy to Use】Strip off the wire insulation with crimping pliers, crimp the connector barrel, and then use a heat gun or small torch to heat and shrink.

Description

Material:
Polyethylene exterior
The metal part is tin-plated copper
Operating temperature range:
Operating temperature: -55℃～125
Start shrinkage temperature: 80℃
Minimum complete shrinkage temperature: 130℃
Shrinkage ratio: about 3:1
Copper terminal thickness:
12-10 AWG is 0.9mm
16-14 AWG is 0.7mm
22-18 AWG is 0.7mm
Features:
Copper terminals have excellent conductive properties
Resistant to wear, stretch and vibration.

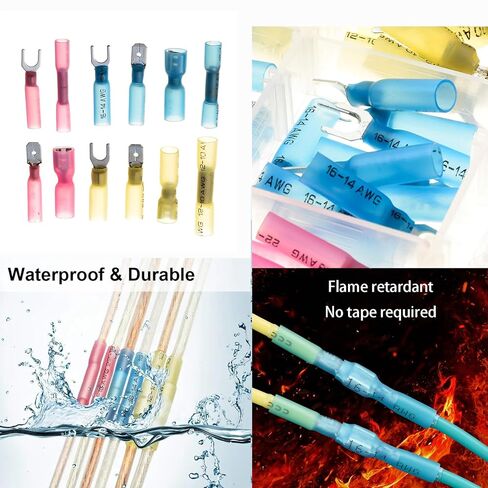

The 2 ends are sealed after shrinking and are waterproof.
Ideal translucency allows visual inspection
Connectors are marked with wire gauge and color identification.
Widely used in automobiles, cars, trucks, boats, underground cable repairs, etc.
