موصل مدمج مخفي، 8 مجموعات من موصل الصافرة على شكل حرف L داخل التثبيت لسلسلة 2020 من الألومنيوم مع لفة M4 في صواميل فتحة T الربيعية ومسامير مقبس M4، فضي

KWD 4
ماركة
Generic
مقاس2020
– 1 +

مميزات خاصة

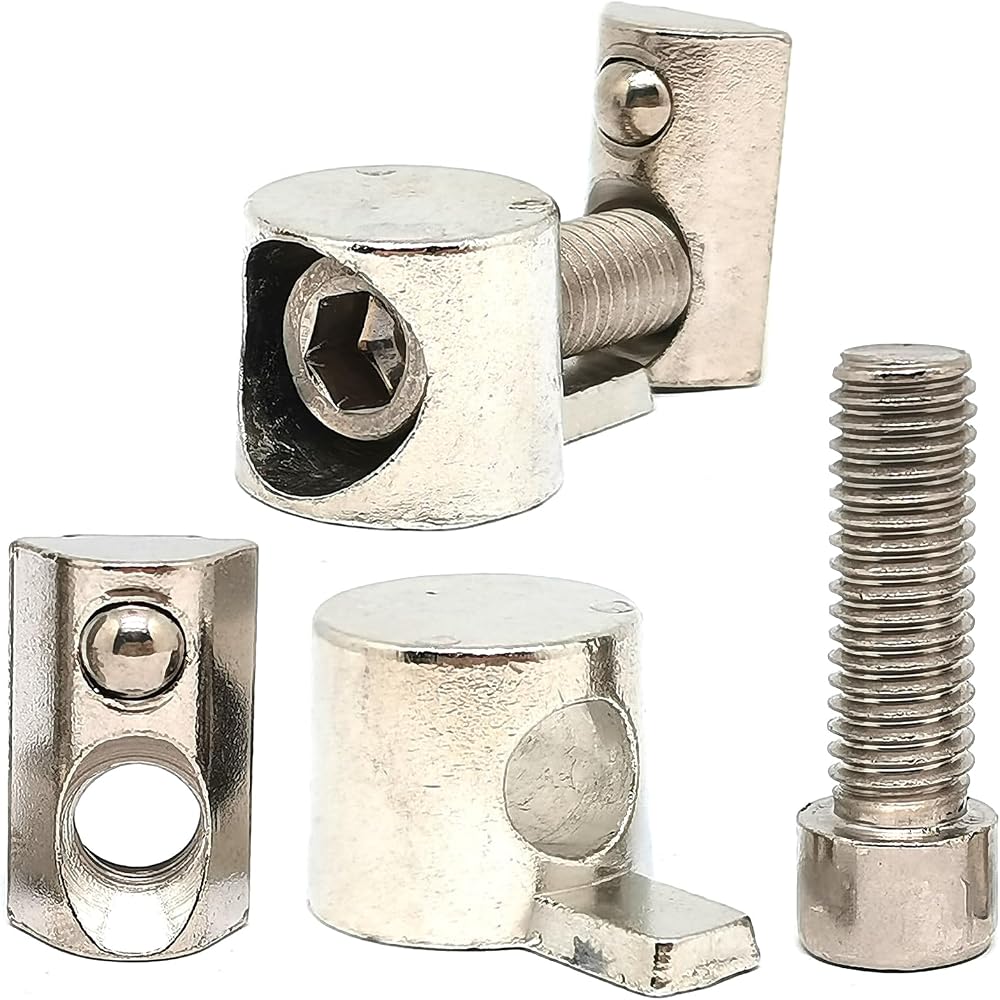

  • 【Package Included】8pcs Built-In Aluminium Profile Connectors + 8pcs Hex Socket Head Cap Screws Bolts + 8pcs Roll in Spring T Slot Nuts.

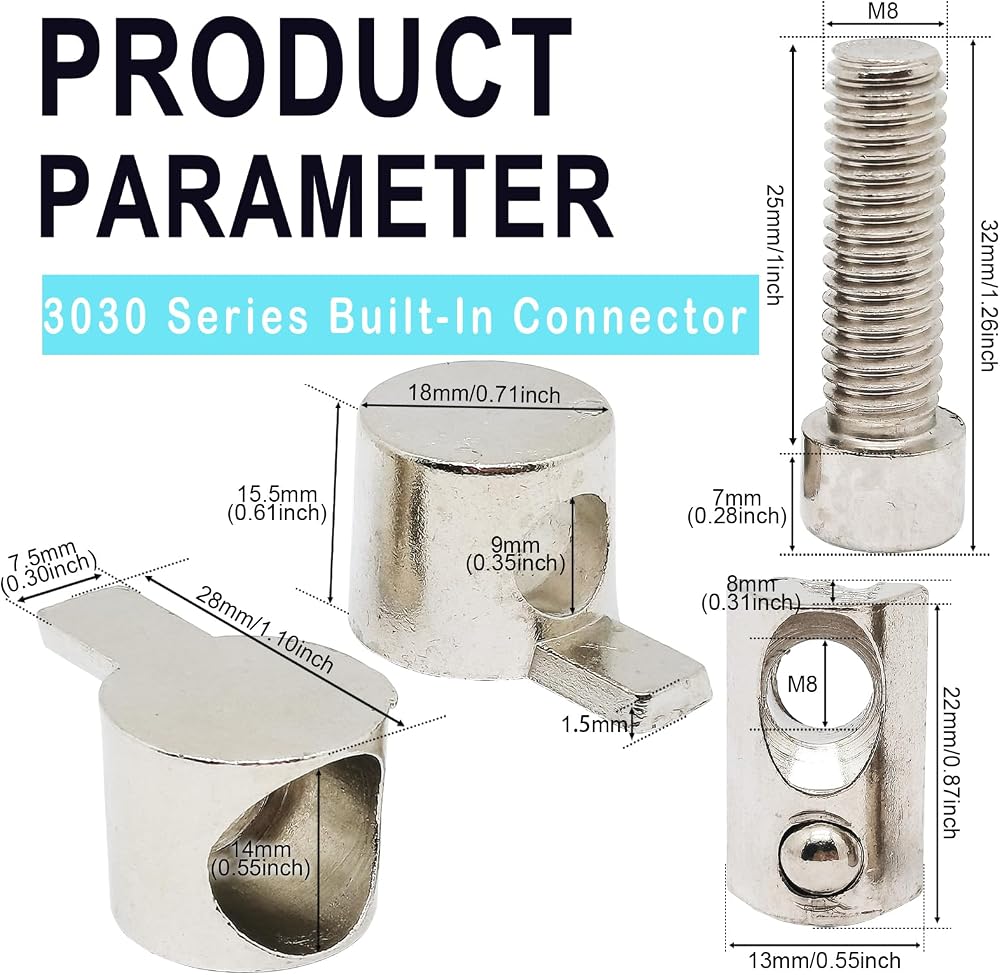

  • 【Size】Length:18mm/0.71inch,Head Diameter:10mm/0.39inch,Width:4mm/0.16inch,Height:8.5mm/0.33inch,Hole Diameter:5mm/0.20inch,7mm/0.28inch.
  • 【Material】Made Of High Quality Aluminium, High Hardness, Strong And Durable, Anti-Corrosion And Rust-Resistant, Longer Service Life.
  • 【Function】For Aluminium Profiles Of The 2020 Series For Joining Two Aluminium Profiles Together At a Defined Angle
  • 【Application】It Is Widely Used In 3d Printers, Cnc Routers, Robotics Project Construction And Industrial Aluminium Profile Frame Structures.

وصف

DESCRIPTION:
--Used For Profile Right Angle Or Cross Link, When Assembling, It Is Necessary To Process The Mounting Holes In The Specified Position Of The Profile, Bury It In It, And At The Same Time, Put The Nut (According To The Profile) Into The Groove Of The Other Profile, And Then Tighten The Bolt In The Locking.

PRODUCT INFORMATION:
Product Name:Hidden Built-In Half Shaft Connectors.
Type:20series.
Material:Aluminum.
Color:Silver.
Size:Length x Width x Height=0.71inchx0.39inchx0.33inch=18mmx10mmx8.5mm.
Quantity:8sets.

NOTE:
1、Due To Manual Measurement, Please Allow 1-2mm Difference, Thanks!
2、Please Allow Slight Color Deviation Due To Monitor Settings, Monitor Pixel Definitions.
