☆Specification:
Model: SPL-3
Applicable wire: soft wire, hard wire: 0.08-4.0mm2
Current Rating: 32A
Rated Voltage: 250V/4KV
Rated power: 7KW
Housing material: flame retardant PA66
Internal material: PA66
Conductive material: pure copper
Spring material: nickel-chromium alloy steel

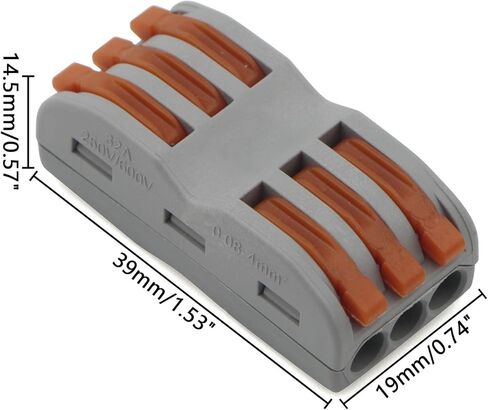

Size: 39*18.6*14.5mm

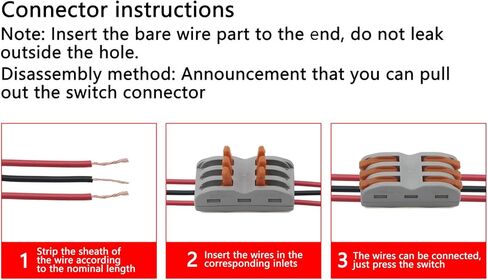

☆Connector instructions for use:
1.Strip off the housing of wire sheath by the calibration length（Stripping length: 10MM),make sure that wires are plugged into the end.
2. Push the orange levers to 90°,insert the wire at the corresponding inlet
3. The wire can be connected, press the switch

★Note: The bare wire part is inserted to the end, do not leak outside the hole Disconnecting method: open the switch connector to pull out

☆Package Included:
30pcs x SPL-3 butt connectors
