Product Specifications:
- Shape: Straight
- Material: Plastic
- Fit for connect Inner Diameter:1/8,1/4,5/16,3/8,1/2
- Max Working Pressure: 1.32Mpa
- Negative Pressure: -29.5"Hg(-750mm Hg)
- Operating Pressure: 0~1Mpa(0~145Psi)
- Operating Temperature Range: 0-60℃(32～140°F)
- Fluid type: Air, Vacuum
- Recommended Tubing Material: Polyurethane, Nylon,Polyethylene, and Polypropylene.

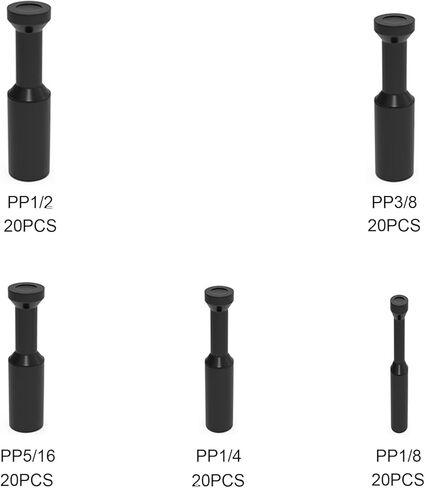

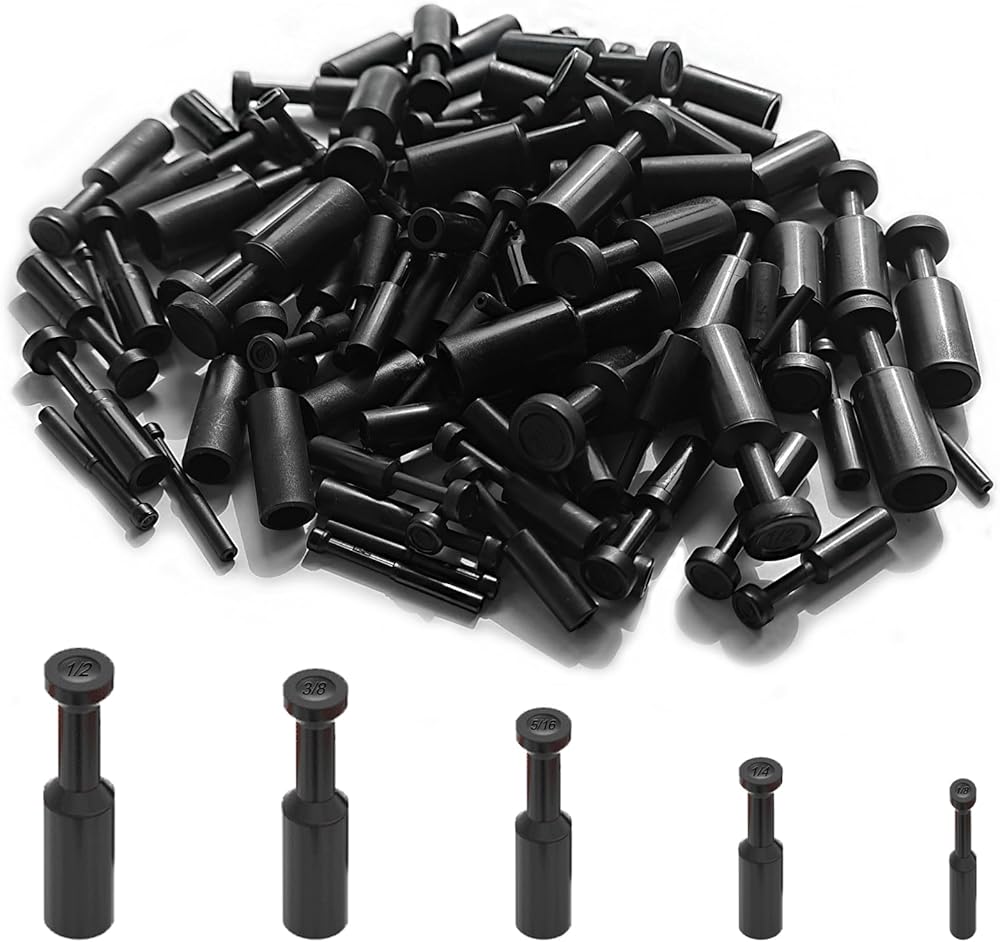

Package Include:
- 20 Pcs 1/8 Pneumatic Blanking Plugs
- 20 Pcs 1/4 Pneumatic Blanking Plugs
- 20 Pcs 5/16 Pneumatic Blanking Plugs
- 20 Pcs 3/8 Pneumatic Blanking Plugs
- 20 Pcs 1/2 Pneumatic Blanking Plugs
Warm Tips- Please confirm the size of your pneumatic parts before purchasing.

Please Note:
1.When inserting the pneumatic plug, the bottom must be inserted.
2.Do Not use outside the service temperature range & don not use more than 145Psi pressure.

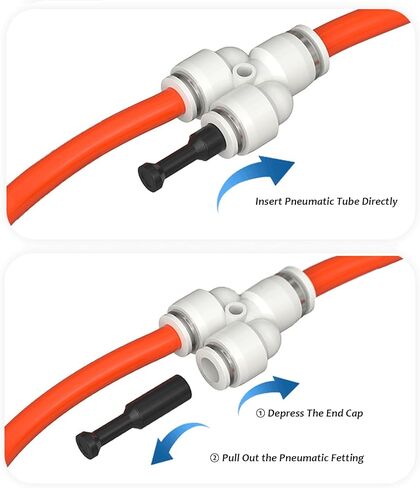

3. If you want to take it down, make sure there is No Air Pressure Inside of the Tube and Push the Release Button against the Body and Remove Tube.
4. Do not apply additional pressure to the pneumatic plug, which will deform the pneumatic tube plug.
