3pcs BME280 Digital 5V Temperature and Humidity Sensor High-Precision Atmospheric Board IIC I2C Breakout

KWD 5.500
Brand
Podazz
Weight
21 g
– 1 +

Special Features

  • 【Primary Power Supply Voltage】 The device operates within a main supply voltage range from 1.71 volts to 3.6 volts.
  • 【Communication Interfaces】It supports I2C communication protocol at frequencies up to 3.4 megahertz, as well as SPI communication protocol at frequencies up to 10 megahertz.
  • 【Operating Temperature Range】The product is designed to function reliably in temperatures ranging from -40 degrees Celsius to +85 degrees Celsius.
  • 【Humidity Tolerance】It can operate effectively in environments with humidity levels varying from 0% to 100% relative humidity.
  • 【Pressure Sensitivi】The device is sensitive to pressure changes within a range of 300 to 1100 hectopascals (hPa).

Description

Product Description:

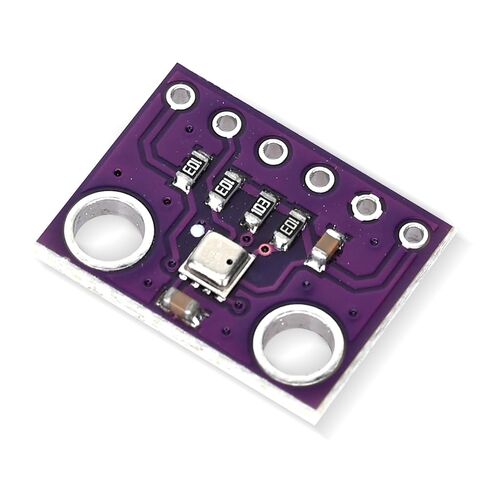

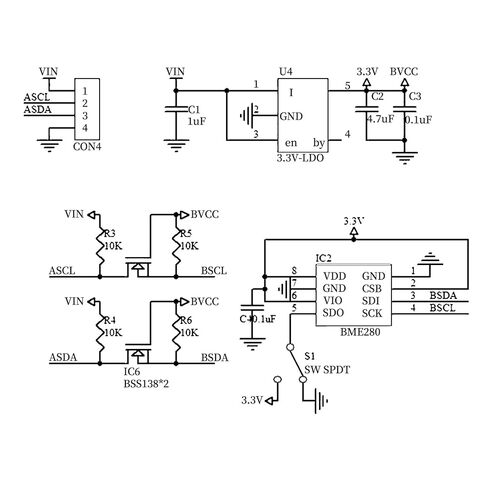

ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor. The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm. Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO. If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!

Package Included:

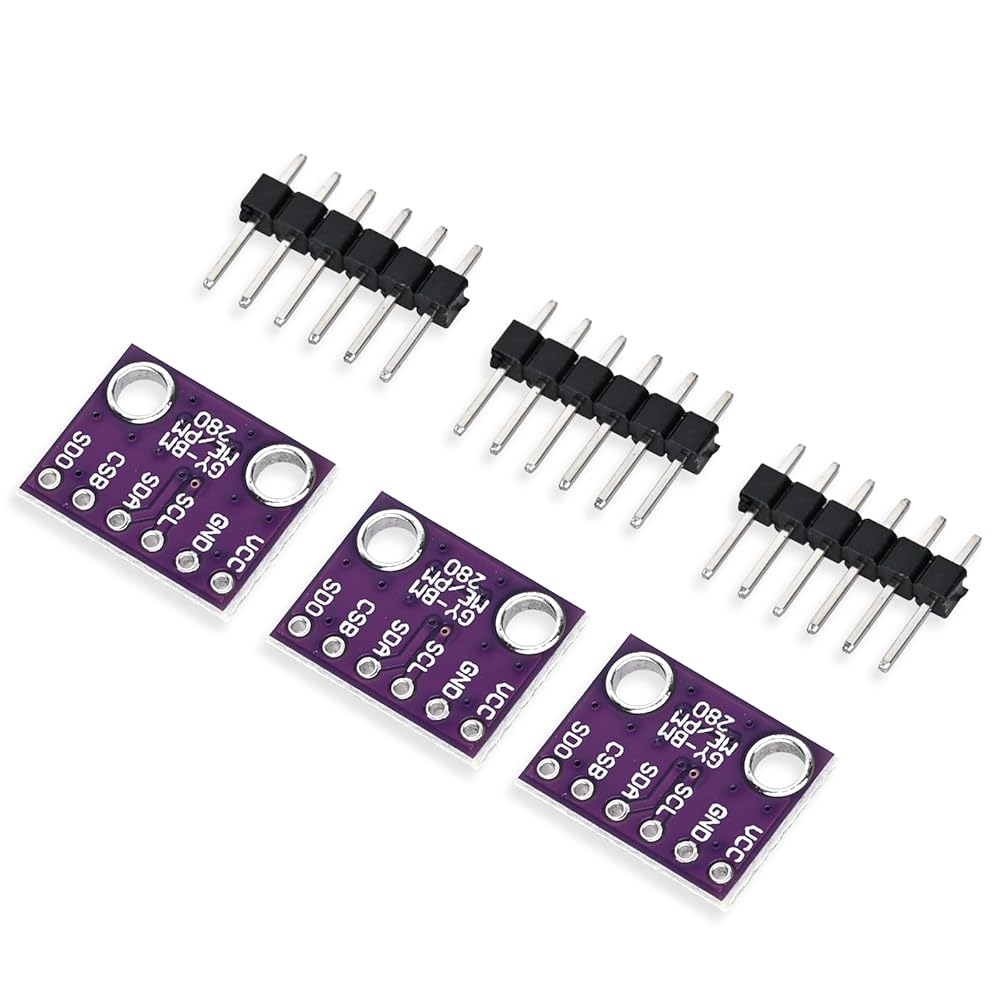

3 x BME280 Digital Sensor Module
