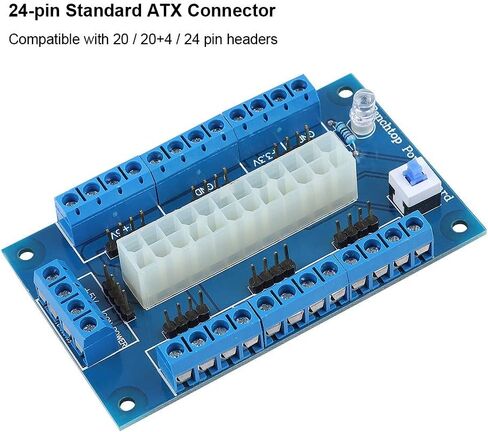

1. 24-pin standard ATX connector - Compatible with 20 / 20 + 4 / 24 pin headers.
2. With the lock switch to easily control power ON / OFF
3. High quality - 24Amp (per position) screw terminal block.
4. Indicator to clearly show the status of the module.
5. Easy and convenient to use.

Specification:
Features:
24-pin standard ATX connector - Compatible with 20 / 20 + 4 / 24 pin headers.
With the lock switch to easily control power ON / OFF.
High quality - 24Amp (per position) screw terminal block.
Easy and convenient to use.
Indicator to clearly show the status of the module.
Specification:

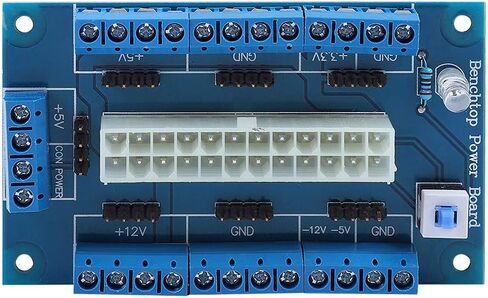

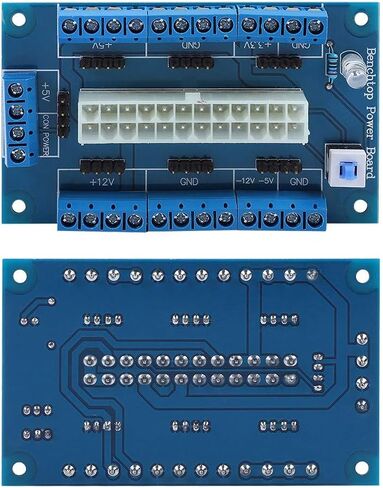

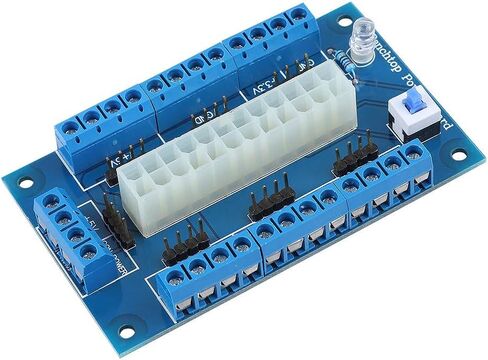

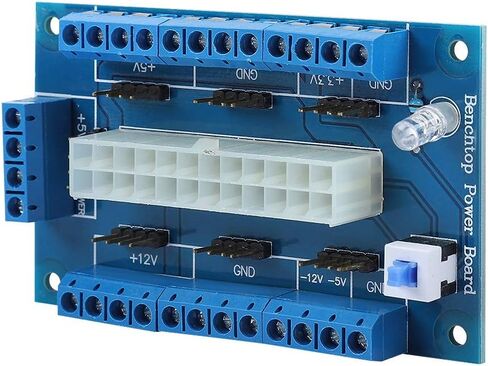

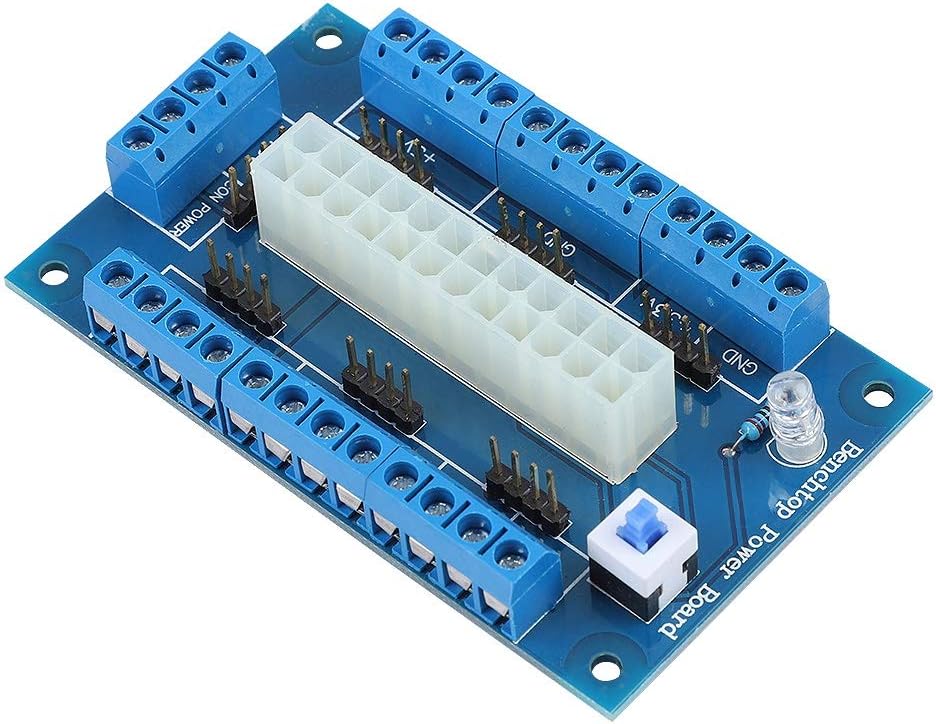

Type: ATX Power Supply Module
Material: Circuit Board
Weight: Approx. 50g
Size: Approx. 52 * 87mm / 2 * 3.4in
On/Off :

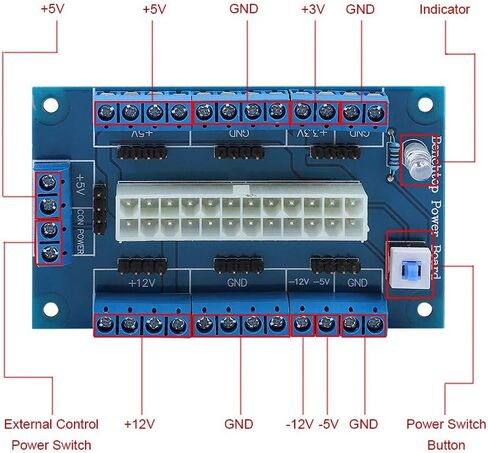

6 * +5V / 16A connectors, 10 * GND / 16A connectors, 1 * -5V / 16A connector (-5V voltage does not exist on each PC power supply, it will often disappear, if you do not provide this output, this output will not provide anything), 1 * -12V / 16A connector, 4 * +12V / 16A connectors, 3 * +3.3V / 16A connectors

Package list:
1 * 24/20Pin ATX Power Supply Module
Note:
1. 2 connector, in the case of the power connector, want to turn on/off the remotely (then just connect the two external buttons). This allows you to access the power even if the adapter is in the panel.
2. Please allow slight error due to manual measurement. Thanks for your kind understanding.
