مميزات خاصة

Specification: Rated Load: DC 30V 0.5A; Contact Resistance: ≤0.03 ohm; Insulation Resistance: ≥100M ohm; Withstand Voltage: AC500V(50Hz)/min

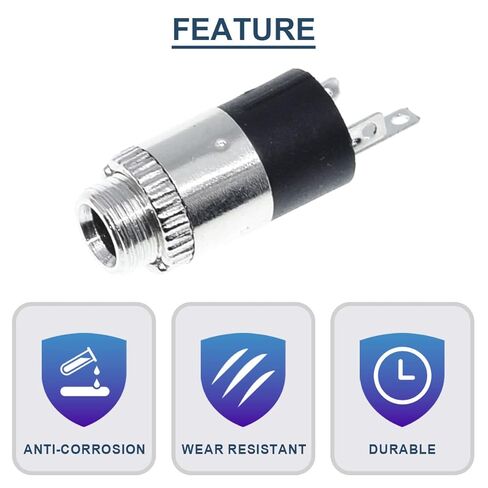

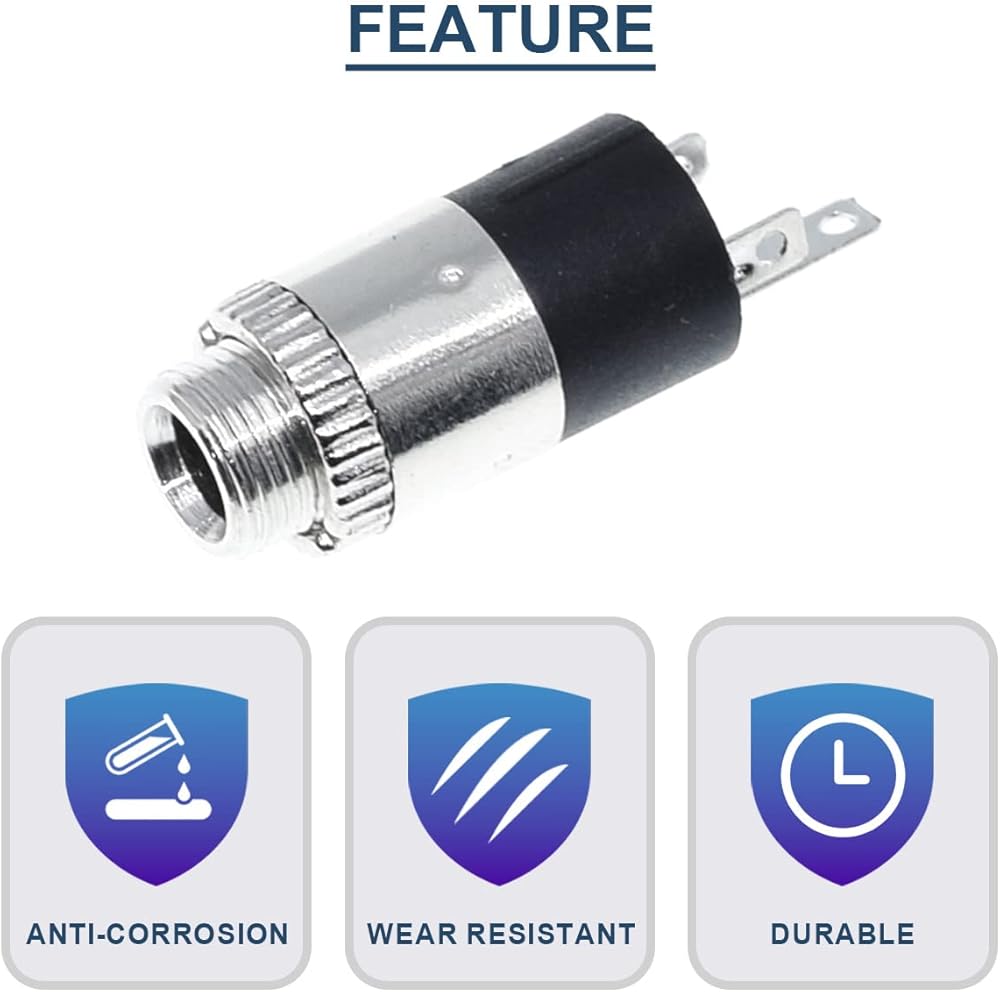

Material: Made of high quality plastic and gold plated metal, anti-corrosion and wear resistant, more durable for use.

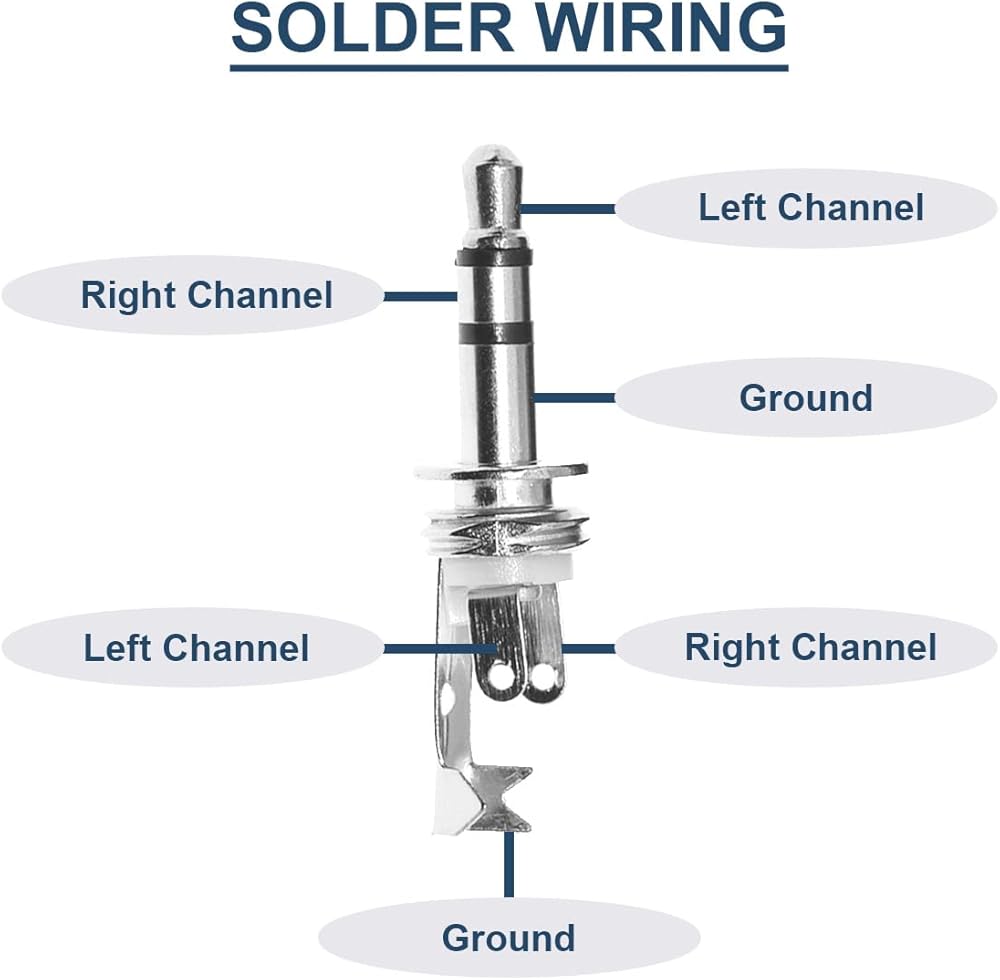

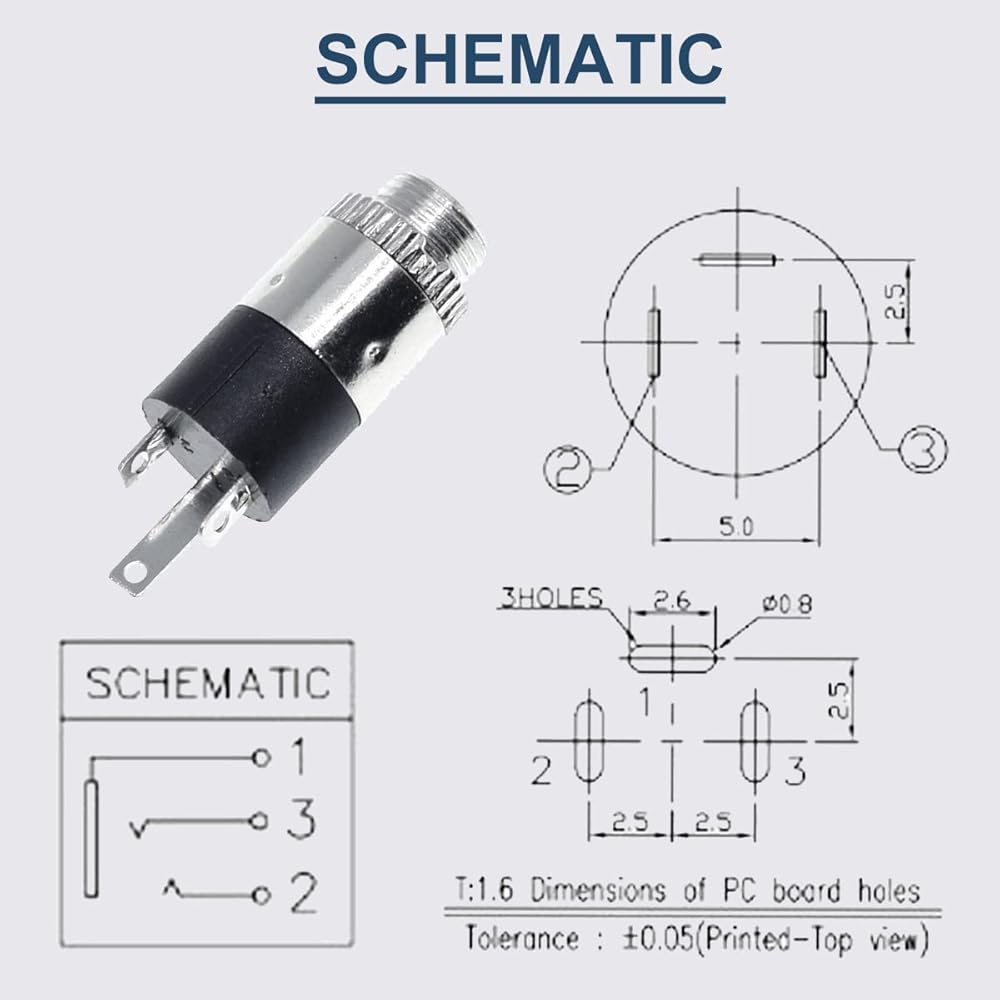

Pin Definition: PIN 1- Ground; PIN2- Right Audio Channel; PIN3- Left Audio Channel
Application: Widely use for headphone, MP3/MP4 Player, audio, speaker and etc.

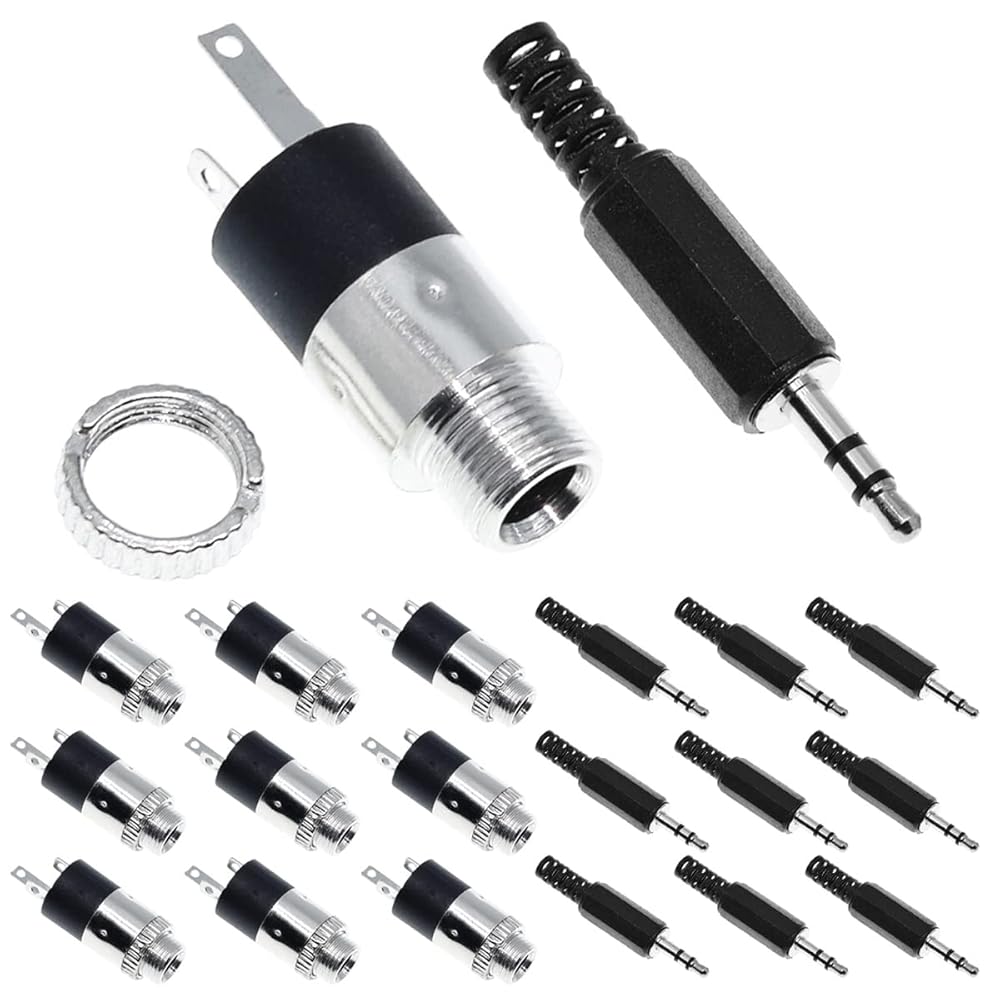

Package Content: The package comes with 10 x 3.5mm Stereo Jack Panel Mount, 10 x 3.5mm TRS Male Plug

وصف

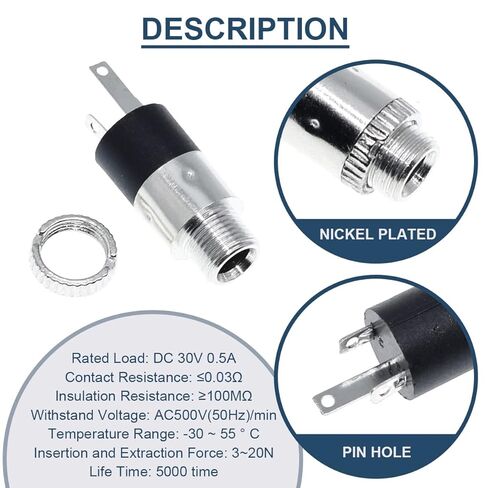

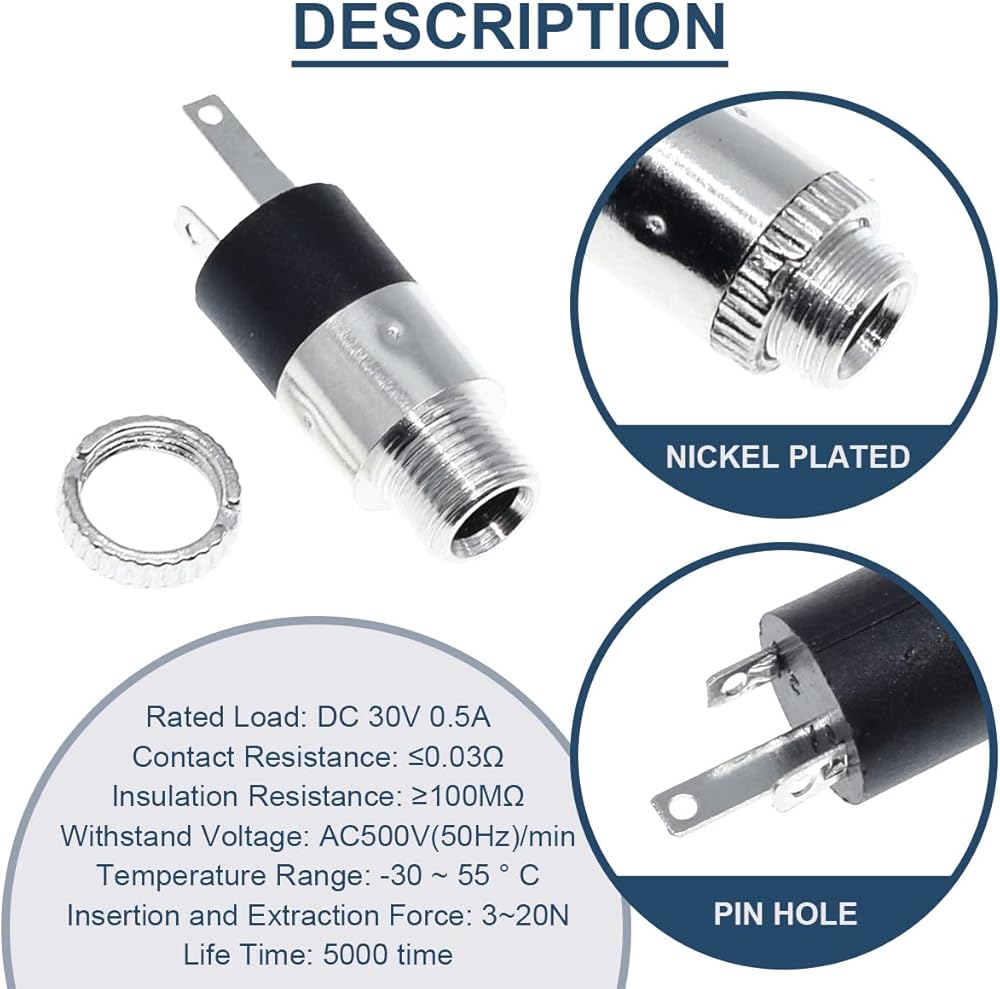

Description:
Rated Load: DC 30V 0.5A
Contact Resistance: ≤0.03 ohm
Insulation Resistance: ≥100M ohm
Withstand Voltage: AC500V(50Hz)/min
Temperature Range: to 30 ~ 55 Celsius
Insertion and Extraction Force: 3~20N
Life Time: 5000 time

Package Included:
10 x 3.5mm Stereo Jack Panel Mount
10 x 3.5mm TRS Male Plug
