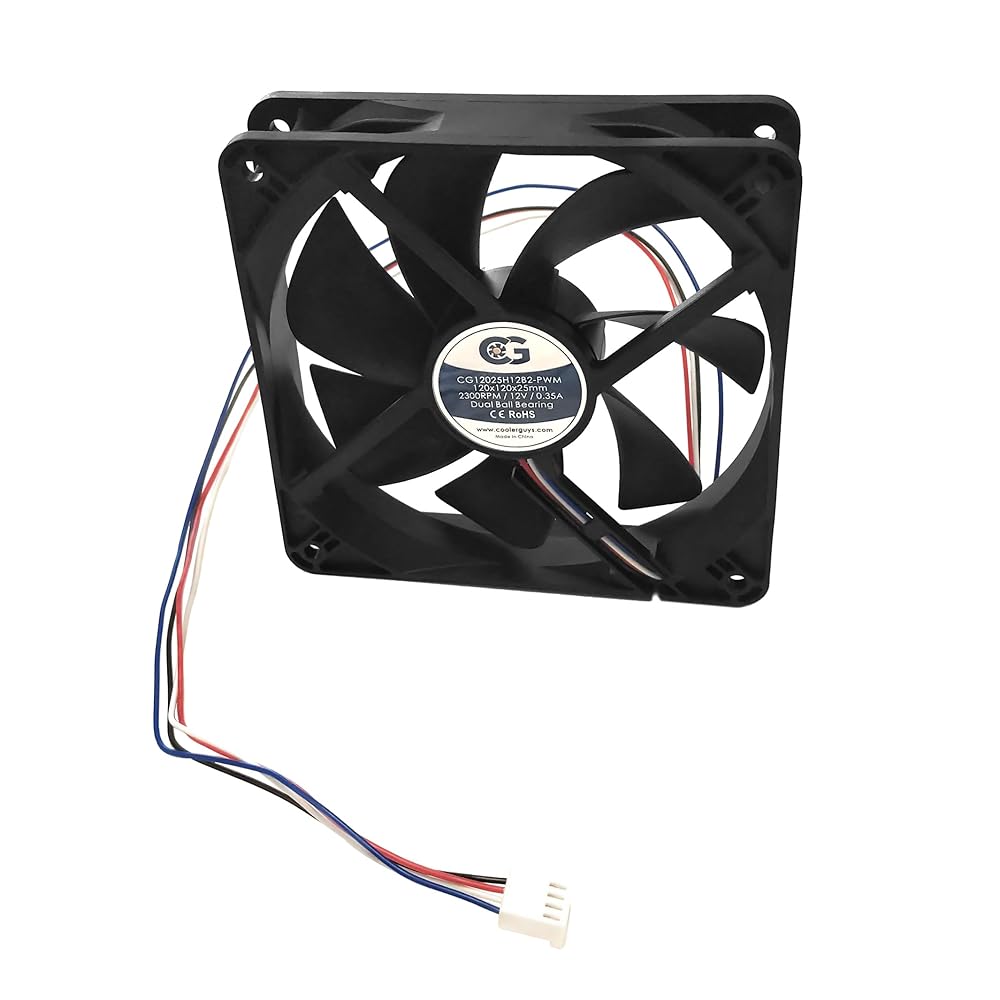

Coolerguys 120mm(120x120x25MM) 12 VDC PWM Variable Speed Fan CG12025H12B2-PWM

KWD 7
Brand
coolerguys
Category
Fans & Cooling
– 1 +

Special Features

  • Efficient Cooling: The 120mm (120x120x25mm) fan provides excellent airflow, ranging from 12.06 to 107 CFM, ensuring efficient cooling for your system.
  • Variable Speed Control: The PWM (Pulse Width Modulation) feature allows for variable speed control of the fan, allowing you to adjust the fan speed according to your cooling needs.
  • Quiet Operation: With a noise level ranging from 15.1dBA to 31.5dBA, this fan operates quietly, ensuring a peaceful environment while still providing effective cooling.
  • Dual Ball Bearing: The fan is equipped with a dual ball bearing, which offers enhanced durability and longevity compared to other bearing types.
  • Wide Temperature Range: Designed to operate in temperatures ranging from -10℃ to +70℃, this fan is suitable for various environments and can handle demanding conditions.
  • Reliable Performance: The fan has a rated voltage of 12V DC and is built with current limit, impedance, and polarity protection, ensuring reliable performance and protecting against potential damage.
  • Long Fan Life: With a fan life of 67,000 hours at 25℃, this fan is built to last, providing consistent and reliable cooling over an extended period.

Description

Coolerguys 120mm (120x120x25mm) 12 VDC PWM Variable Speed Fan CG12025H12B2-PWM
840556073635
PRODUCT SPECIFICATIONS:

Fan Size:120x120x25mm
Bearing Type: Dual Ball Bearing
Wire Option: 4 Wire Lead-Tachometer(White), PWM(Blue), Length- 457.2mm(18in)
Connector: 4-Pin 2510 MOLEX (Female Housing/Male Pin)
Fan speed: 300 - 2300 ±10%RPM
Rated Voltage:12V DC
Rated Current: 0.01A - 0.35A Ramping Startup
Power: 0.12W - 4.2W
Noise Level:15.1dBA - 31.5 dBA
Airflow:12.06 - 107 CFM
Fan Air Pressure: 0.24 - 3.52 mmH2O
Operation Temperature: -10℃ to +70℃
Protection: Current Limit/ Impedance/Polarity Protection
Fan Life: 67,000 Hours at 25℃
Frequency:25Hz
Corners: Open
NOTE: PWM Fans are not variable speed control fans on their own. An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
