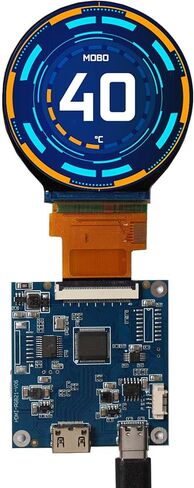

2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port in Kuwait 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port in Kuwait 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port in Kuwait 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port in Kuwait 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port in Kuwait

2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and 40 pins Controller Board,Micro USB Power Port

KWD 18
Brand
FanyiTek
Category
Monitors
Weight
250 g
Size2.1 inch
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Round MIPI screen】2.1" 480x480 VS21001C40 circle display,IPS full viewing angle,outline size:56.18x59.71x2.3(W×H×D)mm,display area:53.28x 53.28(W×H)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
  • 【Controller board】Video input :mini HDMI port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
  • 【Input Power】5Vdc More than 1A,Pls prepare it seperately .
  • 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
  • 【Packing lists】1× Mini HD LCD Board for 40Pin VS-TURBOR-04 ,1× 2.1inch VS21001C40 480x480 LCD Screen

Description

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Video Input: Micro HD-MI
HD-MI: Support HD-MI 1.4
Board Size: 50mm x 35mm x 5mm

2.1inch VS21001C40 480X480 LCD Screen :
Display Mode IPS MVA, Normally Black, Transmissive
Resolution 480(RGB)x480
Outline Size 56.18x59.71x2.3(W×H×D)
Display Area 53.28x 53.28(W×H)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins ,
Backlight WLED
Input Voltage 2.8V (Typ.)

Packing list:
1× Micro HD LCD Board for 40Pin VS-TURBOR-04
1× 2.1inch VS21001C40 480x480 LCD Screen
