Parameters: Input Voltage Range: The input voltage range of the DC motor driver is DC 6.5V-27V. It can input DC 12V or 24V. The rated output current of each port is 7A, and the total output power is 160W.

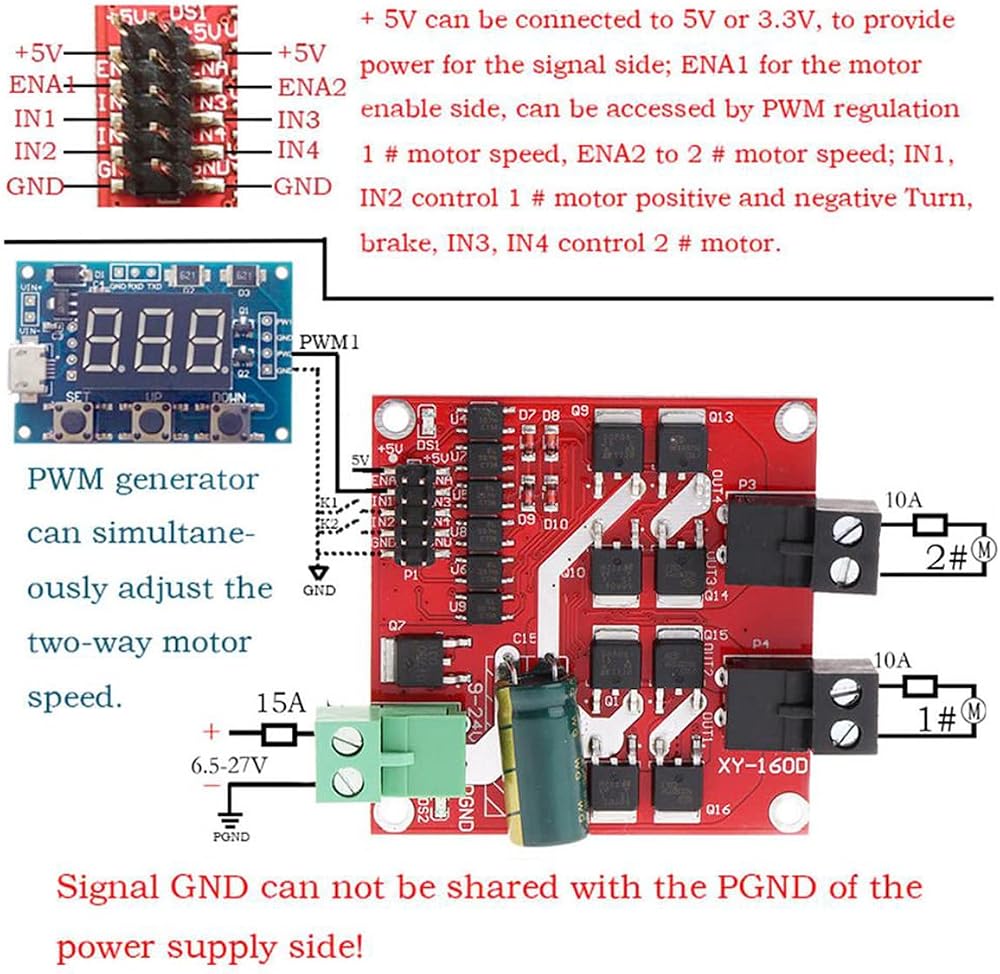

Forward & Reverse Rotation:IN1, IN2/IN3, IN4 ports can control the forward or reverse rotation of the motor.
PWM Speed Control:Enable the signal terminal (ENA) input PWM to adjust the speed, PWM frequency range 0-10KHZ.
Strong drive: The motor controller board adopts dual H bridge, can drive two DC motors at the same time.

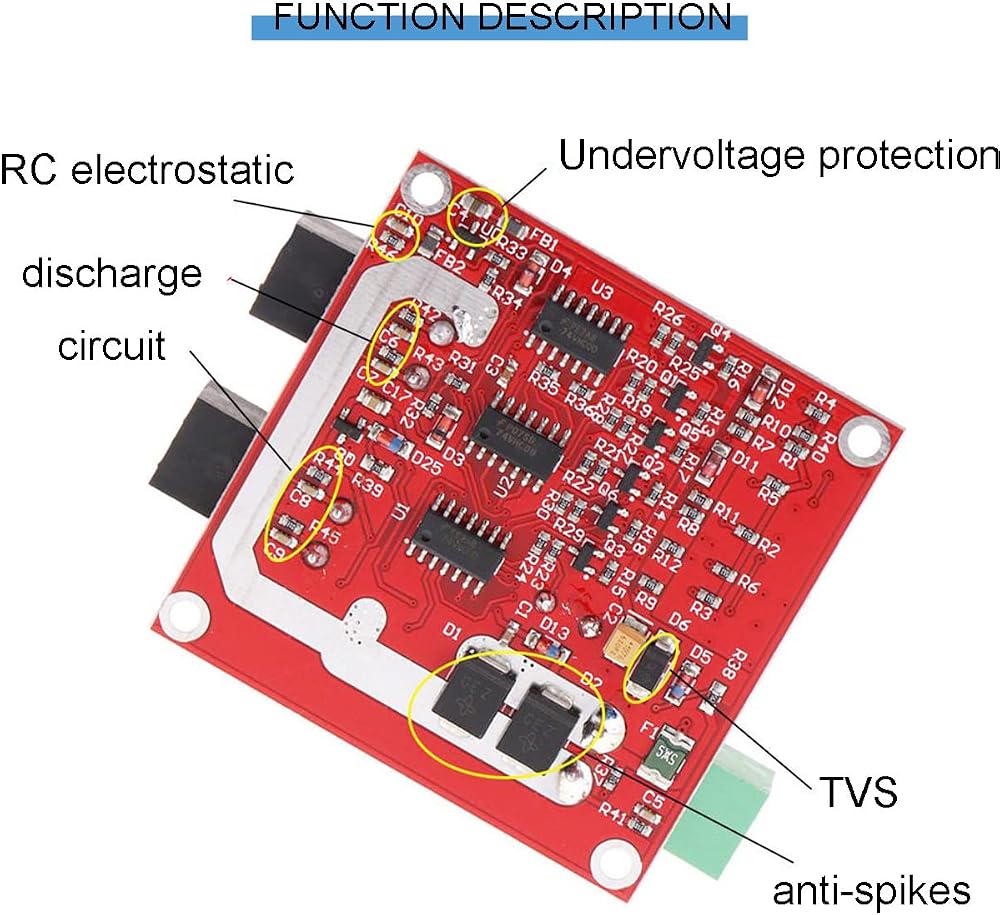

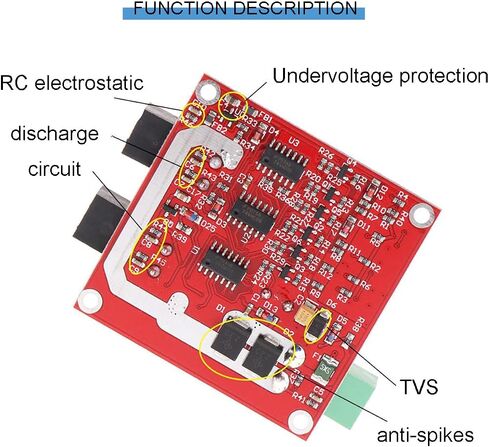

Under voltage protection: The motor driver module is with under voltage protection to prevent instantaneous large current from damaging the module.

وصف

Product Description
Specification:
Name: Drive control board
Weight: about 20g

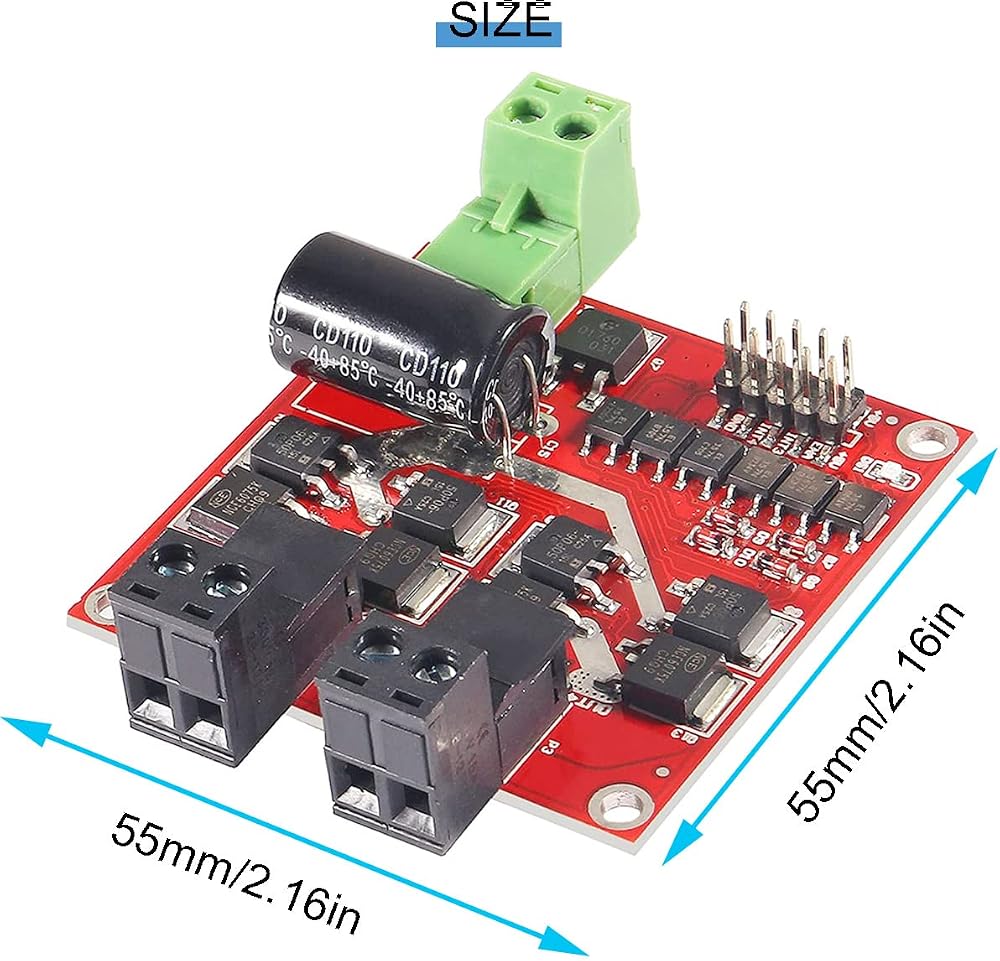

Size: about 55 x 55 x 16mm/2.17*2.17*0.63in
Mounting hole diameter: about 3mm/0.12in

Features:

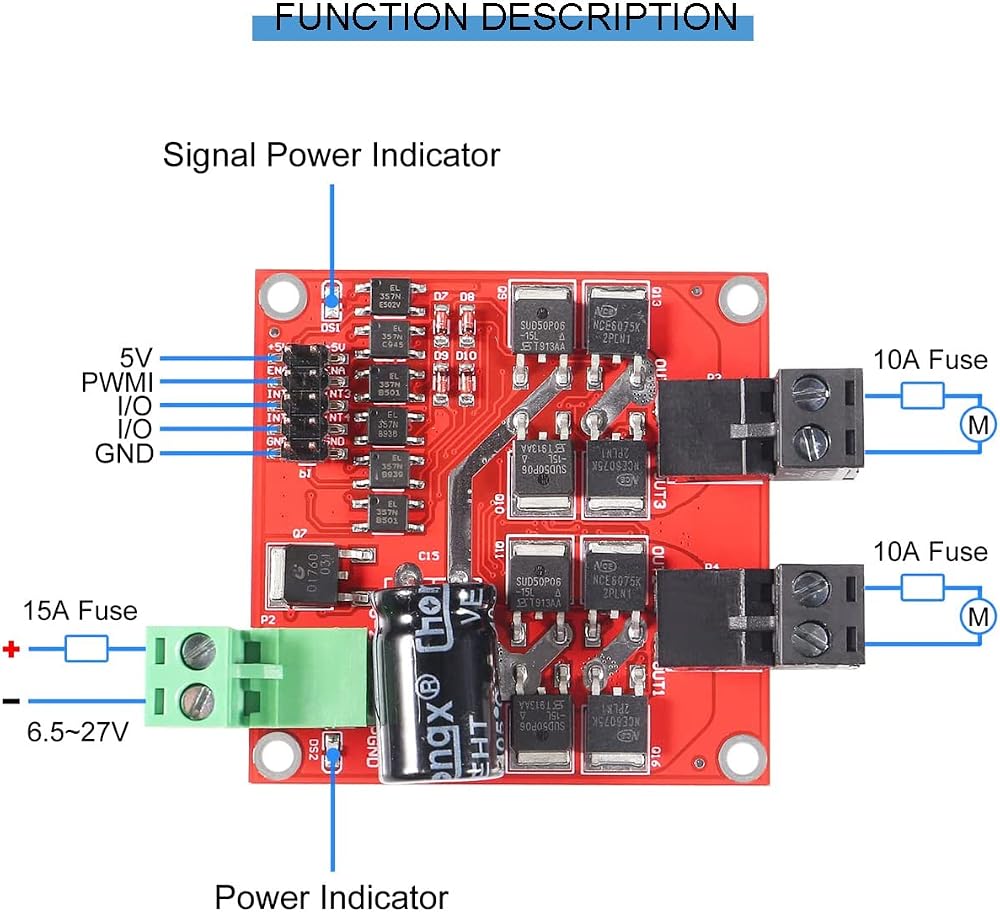

1. The power supply voltage is 6.5V-27V, and the power supply cannot exceed 27V, otherwise the module will be burned. It is recommended to connect a 15A fuse in series with the current input terminal.
2. Dual motor interfaces, each with a rated output current of 7A and a peak current of 50A. The motor interface cannot be short-circuited. It is recommended to connect a 15A fuse in series.
3. A motor with a rated voltage of 24V, a motor with a rated power of 115W or less, and a motor with a rated current of 7A can work for a long time.
4. The activation signal and the forward and reverse control signals control the voltage at 3-6.5V.
5. Enable signal terminal (ENA) input PWM to adjust the speed. The PWM frequency range is 0-10KHZ, and the minimum PWM pulse width is 10us.

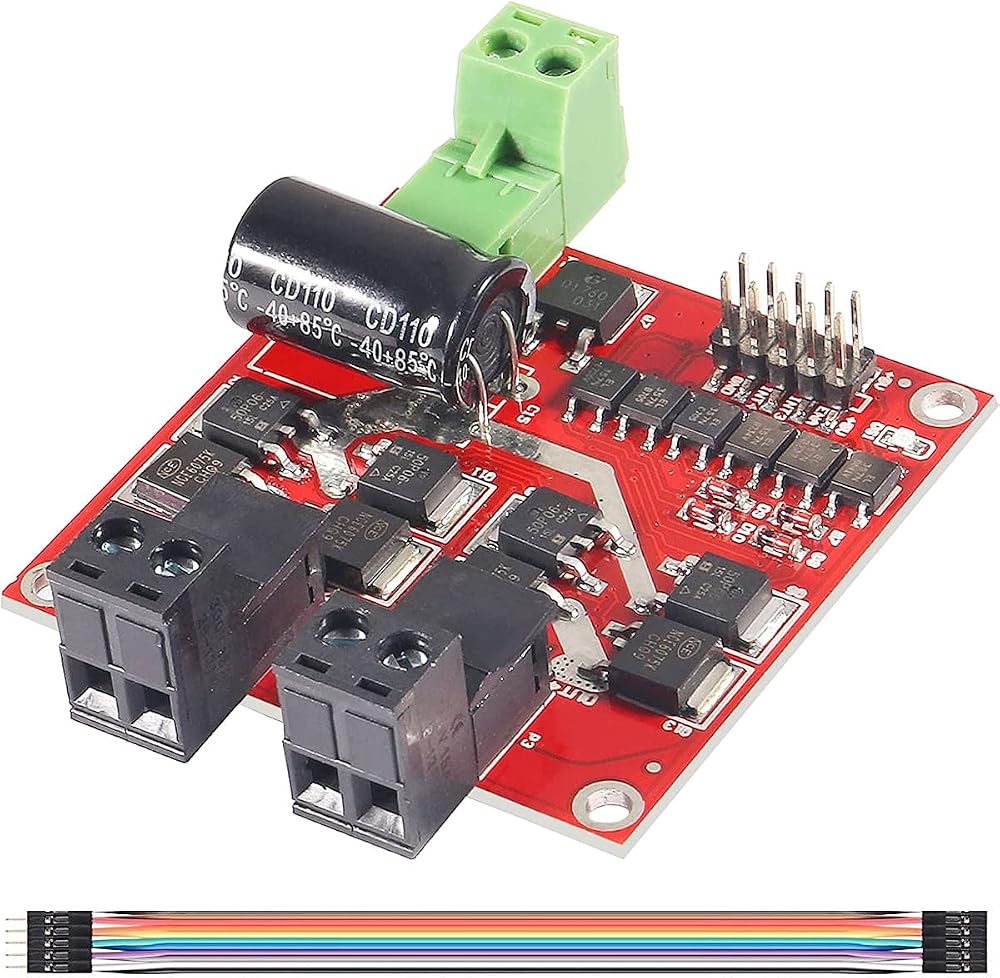

Package includes:
1 x DC Motor Driver
1 x 10-pin Male and female DuPont cable
