Specification Parameters:
Input voltage: 8V-32V 12V or 24V
Output voltage: 5V
Output current: 3A
Maximum output: 15W
Operating temperature: -20-65°
Conversion efficiency: 95%
Waterproof rating: IP68 1 meter, 12 hours, no dew
Heat dissipation mode: Natural heat dissipation from the shell
Connection Mode:
Input: Red+ Black-
Output: Yellow+ Black-
Input transient high voltage protection, output overcurrent protection, chip overtemperature protection
Security Protection:
Short circuit protection: Yes
Overtemperature protection: Yes
Overcurrent protection: Yes

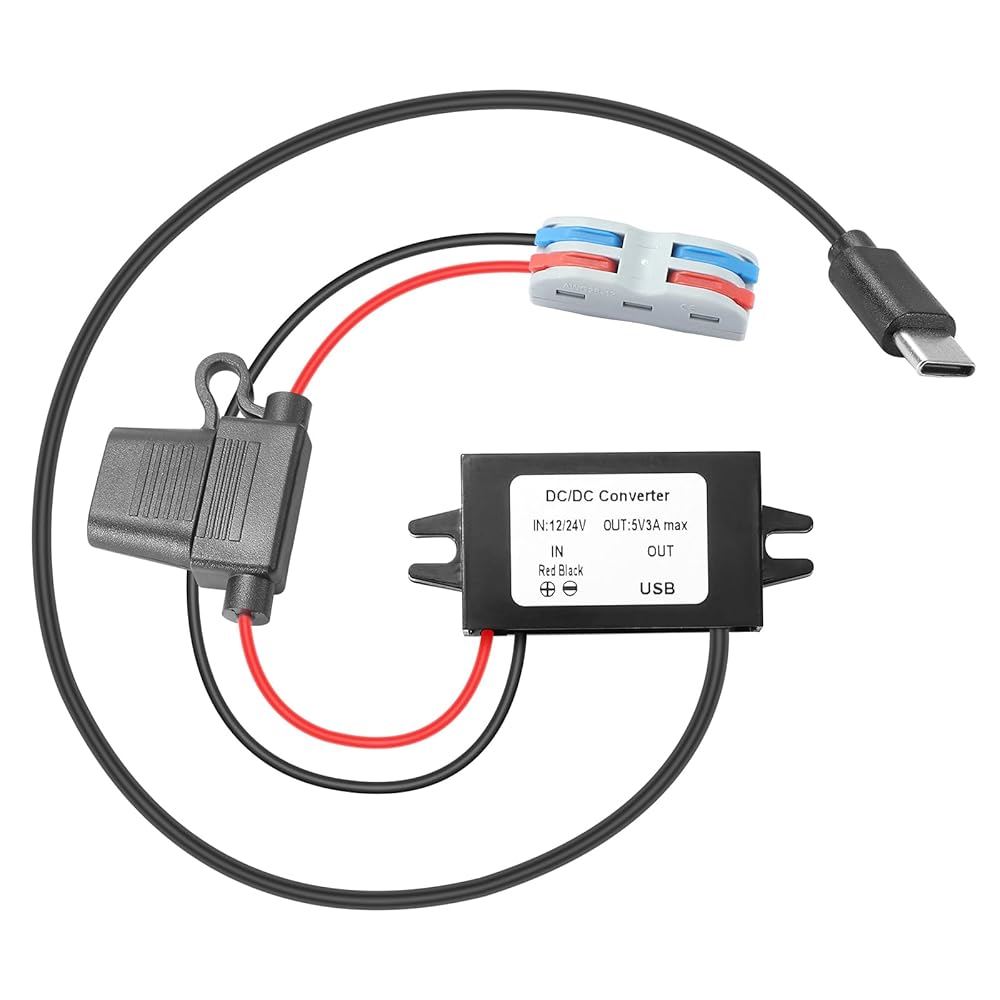

What's included: 8V-32V 12V or 24V to 5V3A step-down power converters x 1

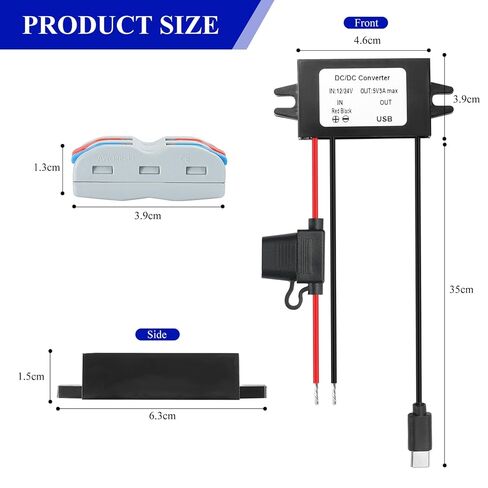

Package size: 5.9 x 4.72 x 0.78 inches
Weight: 60g
NOTE:
1. Do not use near heat sources, such as fire or heater
2. Do not connect the input cable to the household power supply 220V
3. Do not put the product in the fire or heat it
4. Do not use wires or other metal objects to short-circuit the positive and negative poles of the product
5. Non professional personnel are prohibited from disassembling and repairing themselves
Note: Manual measurement, please allow a slight error in size
Note: This product is stored in a dry and cool place, the temperature range is -40℃~ 80℃, avoid contact with corrosive substances, away from fire and heat sources
