Feature:

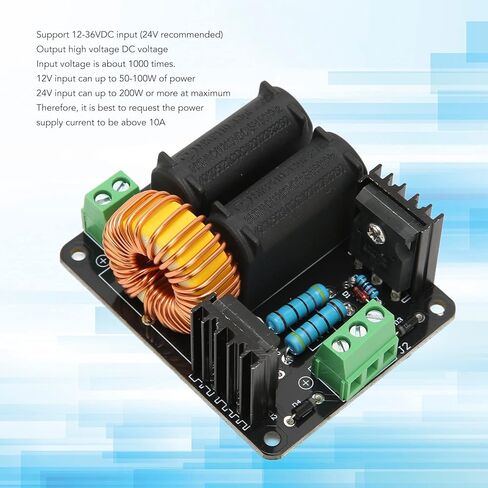

1. [Input And Output Voltage] The high voltage module supports 12‑36V DC input (24V is recommended) and outputs high voltage DC voltage with an input voltage of about 1000 times.
2. [Input Power] High voltage coil module 12V input can up to 50‑100W power, 24V input can up to 200W or more, so it is better to request the power supply current 10A.
3. [Professional] ZVS high voltage power module, using flyback drive circuit, used to drive the ignition coil, also referred to as ZVS circuit by the majority of enthusiasts.

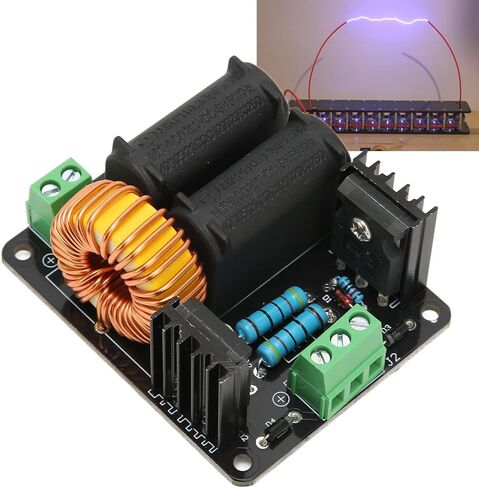

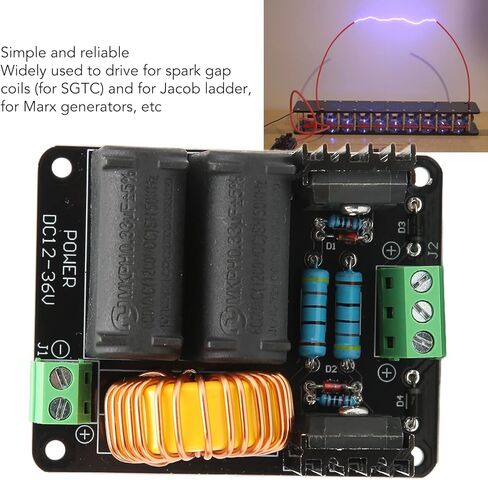

4. [Application] ZVS module with high power, low heat generation, simple and reliable, widely used to drive for spark gap coils (for SGTC) and for Jacob ladder, for Marx generators, etc.

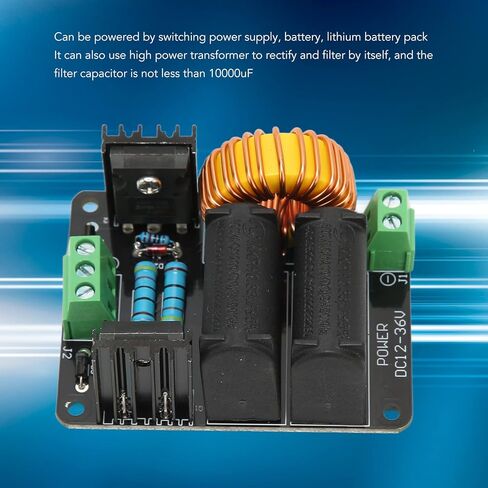

5. [Use Current Requirements] Heating power supply module uses 12‑24V DC input and requires a power supply current of not less than 4A at 12V and not less than 8A at 24V.

How to Use:
Use after installation.

Specification:

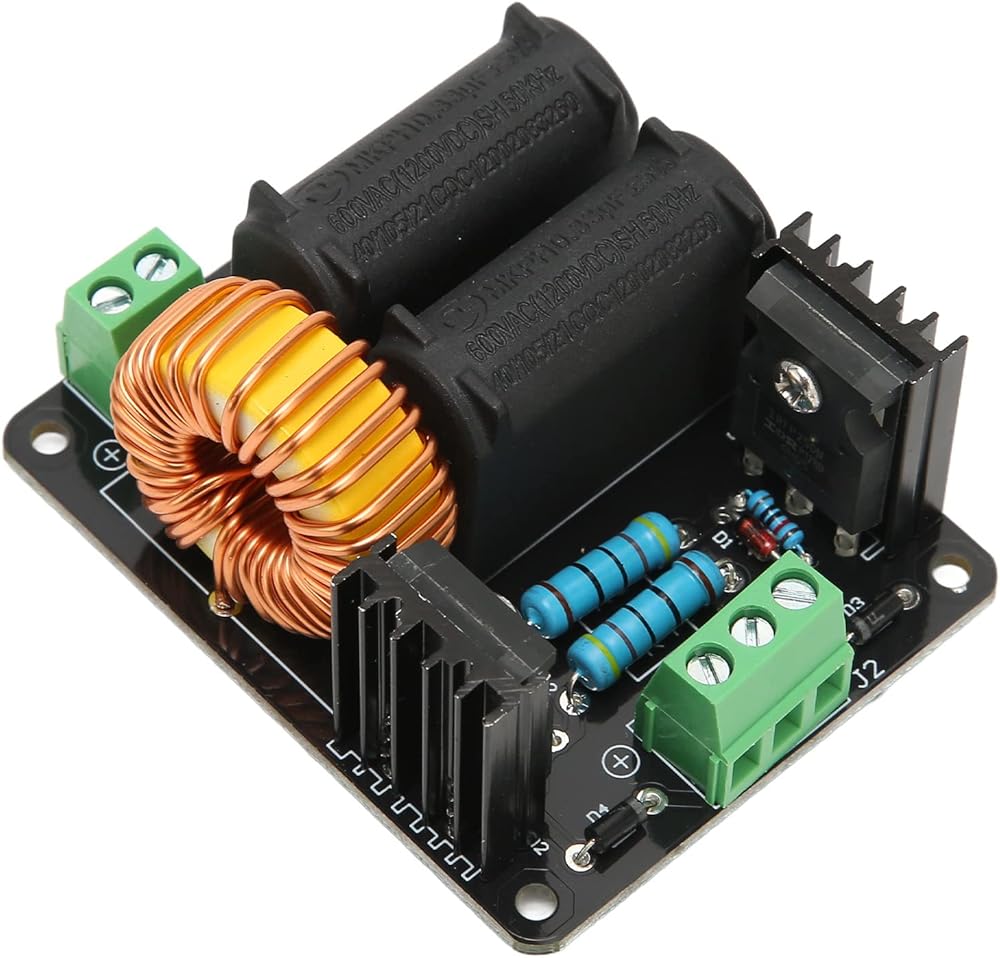

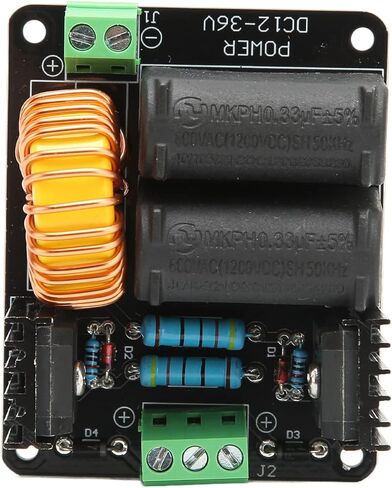

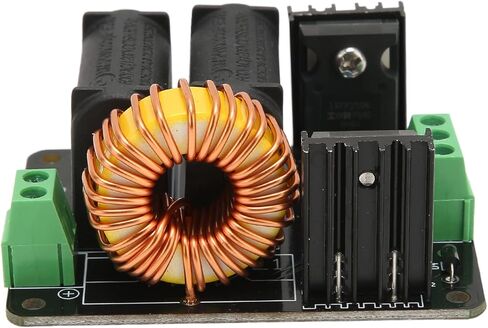

Item Type: ZVS Module
Material: PCB
When Input Voltage 12V
Output Voltage: 10000V
Maximum Power: 100W
When Input Voltage 24V
Output Voltage: 20000V
Maximum Power: 200W

Package List:
1 x ZVS Module
