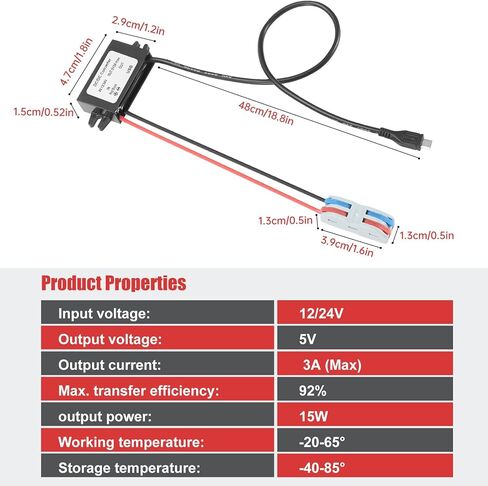

Specification Parameters

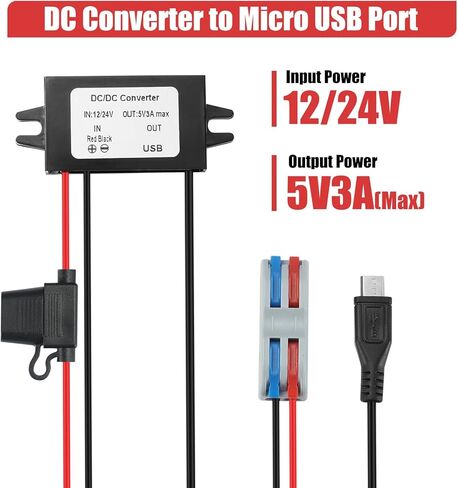

Nominal input voltage: 12V or 24V

Transfer efficiency: 95%

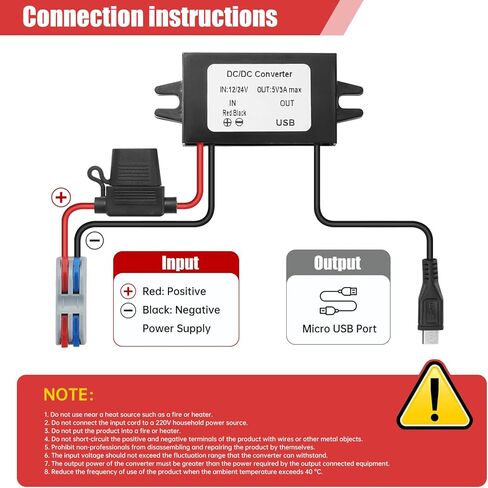

Input line: 15-16 CM, R+ B-

Output voltage: 5V

Output: 3A MAX

Maximum output: 15W MAX

No load adjustment rate: 1%

Load adjustment: 2%

Idle dissipation: ≤10 MA

Ripple wave: 200 mVP-P

Output line: 47 to 48 CM, MICRO USB

Working temperature: -20 to 65°

Storage temperature: -40 to 85°

Working humidity: 10% to 90% RH

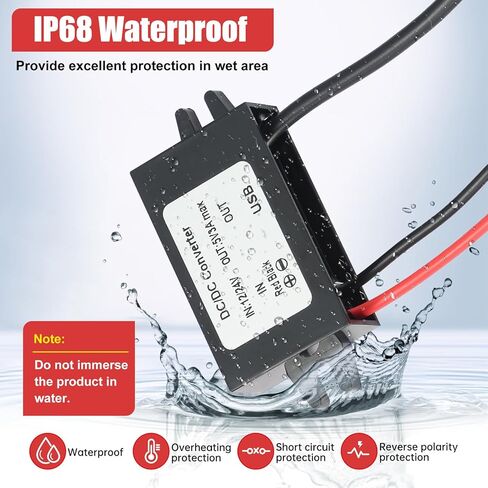

Short circuit protection: YES

Overtemperature protection: YES

Overcurrent protection: YES

Anti connection protection: YES

Heat dissipation method: Natural heat dissipation

Attention

1.The products are stored in a dry and cool place with a temperature between 40℃ and 80℃, avoiding contact with corrosive substances and staying away from flames and heat sources

2.Do not use the device near a heat source, such as a fire or heater

3.Do not connect the input line to 220V electricity

4.Do not put the product in fire or heat it

5.Do not short the positive or negative poles of the product with wires or other metal objects

6.It is forbidden for non professional personnel to disassemble and repair the product by themselves
