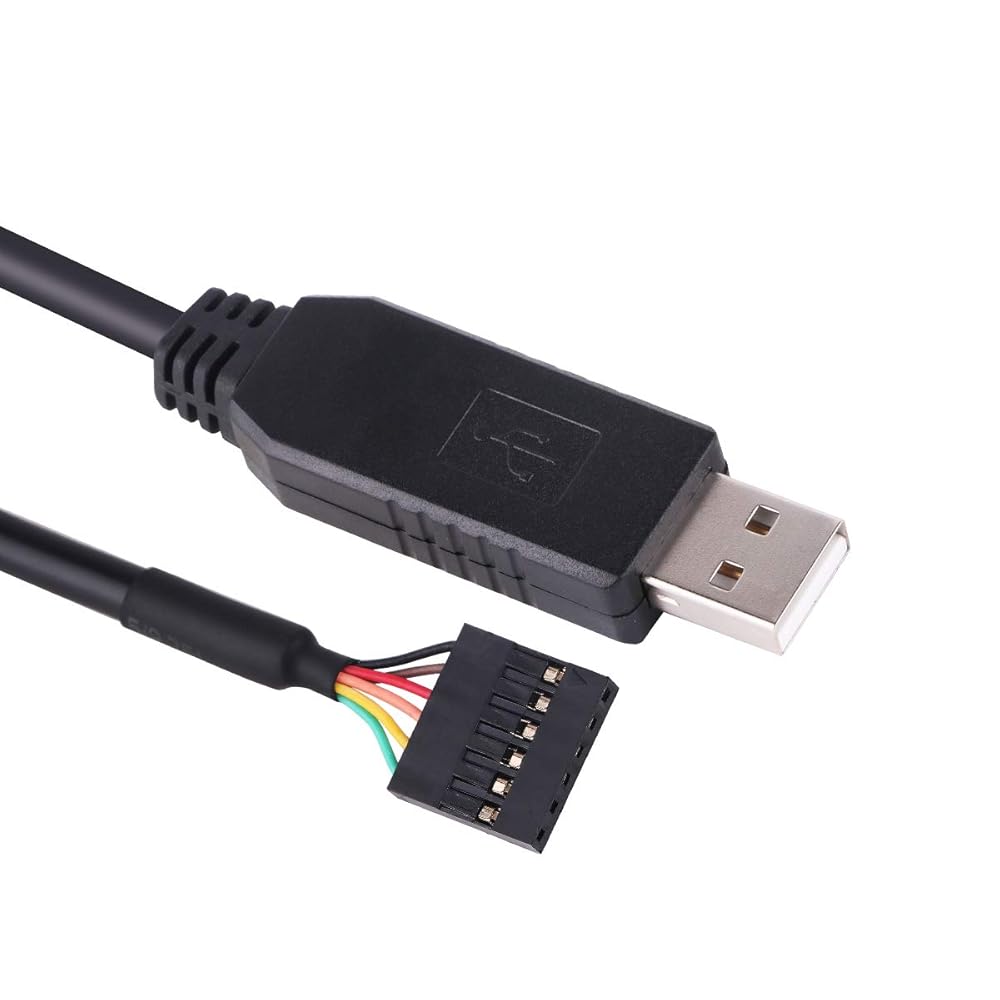

USB to TTL 3v3 6 Pin 1'' Terminal Block UART Serial Cable FT232RL Chip for Windows Linux and Mac OS (3.3V, 6P_2.54 Header)

KWD 7.500
Brand
Green-utech
Weight
71 g
– 1 +

Special Features

  • USB to TTL 3v3 6 Pin 1'' Terminal Block serial cable is connect directly to a microcontroller UART or I/O pins.
  • The internal EEPROM descriptors can be programmed in circuit, over USB without any additional voltage requirement. It can be programmed using the FT232RL utility software called FT_PROG, which can be downloaded from FT232RL Utilities on the FT232RL website
  • The FT232RL has a low 15mA operating supply current and a very low USB suspend current of approximately 70μA. (Note that during suspend mode, the current drawn by application should not exceed 2.5mA to remain USB compliant)
  • Compatible with windows, linux and Mac OS. Windows8 / 10, Mac OS does not need to install the driver manually When your laptop/PC is connected to the Internet , plug and play.The drivers listed above are all available to download for free from FT232RL Official website
  • The TTL cables are capable of operating over an extended temperature range of -40º to +85º C thus allowing them to be used in automotive or industrial applications.

Description

6ft USB to TTL 3v3 6 Pin 1'' Terminal Block UART Serial Cable FT232RL Chip for Windows Linux and Mac OS (3.3V, 6P_2.54 Header)
Connector A: USB 2.0 A Male
Connector B: 6 Pin 2.54mm Terminal Block
Original FT232RL Import from UK . Support EEPROM FT-Prog Software . Support for Win7/8/10/11/XP/Android/Mac os/Linux/Vista/Wince/ and son on
Package:1 x FT232RL USB to 6Pin 2.54mm Terminal Block 3.3v TTL UART Level Programming Cable 1.Typical Applications

· USB to Serial TTL Level Converter

· Upgrading Legacy Peripherals to USB

· Interface Microcontroller UART or I/O to USB

· Interface FPGA / PLD to USB

· Interface to FT232RL VDRIVE2 or VMUSIC2 modules.

· Replace MAX232 type level shifters allowing for direct connection of products to PC via USB

· USB Instrumentation PC interface

· USB Industrial Control

2. Driver Support

· Windows 10 32,64-bit

· Windows 8/8.1 32,64-bit

· Windows 7 32,64-bit

· Windows Vista and Vista 64-bit

· Windows XP and XP 64-bit

· Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2

· Windows XP Embedded

· Windows CE 4.2, 5.0 and 6.0

· Mac OS 8/9, OS-X

· Linux 2.4 and greater
