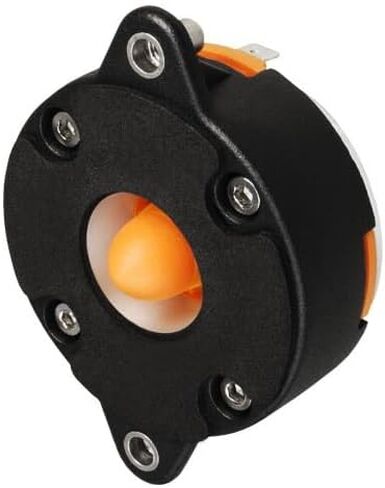

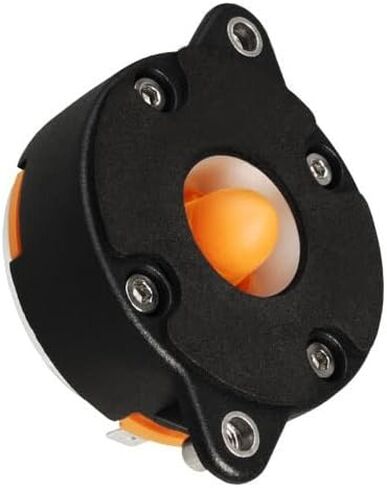

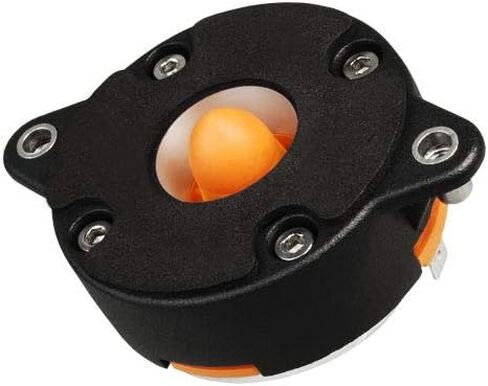

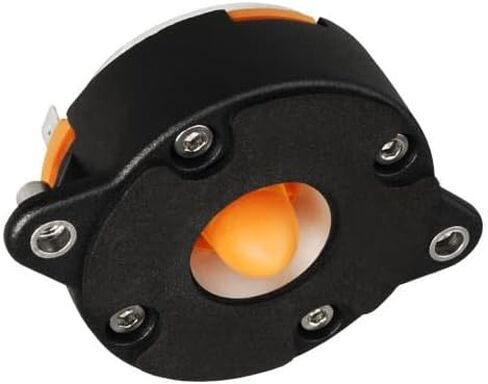

FAITAL PRO HF102-8 1-inch 30-Watt 8-Ohms HF Drivers Bolt On High-Frequency Compression Driver Professional Audio Applications 30 Watts Rms 60 Watts Max || The FAITAL PRO HF102-8 is a high-frequency compression driver designed for professional audio applications. This driver is known for its high sensitivity and wide frequency range, making it suitable for high-quality professional audio systems where clarity and detail in the high-frequency range are crucial || NOMINAL SPECIFICATIONS || Throat Diameter : 25.4 mm (1 in) || Overall Diameter : 91 mm (3.58 in) || 180° Mounting Holes Diameter (2xM6) : 76 mm (2.99 in) || Depth : 43 mm (1.69 in) || Net Weight : 300 g (0.7 lb) || Shipping Box (Single carton box) : 98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in) || Shipping Weight : 330 g (0.72 lb) || || TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.6 Ohm || AES Power Handling (1) : 30 W || Maximum Power Handling (2) : 60 W || Minimum Crossover Frequency (3) : 2.6 kHz || Sensitivity (1W/1m) (4) : 107 dB || Frequency Range : 1.8÷20 kHz || Voice Coil Diameter : 25 mm (0.98 in) || Winding Material : Al || Former Material : Kapton || Diaphragm Material : Ketone Polymer || Diaphragm Shape : Dome || Winding Depth : 1.7 mm (0.07 in) || Magnetic Gap Depth : 2 mm (0.08 in) || Flux Density : 1.3 T || Magnet : Neodymium Ring || Re : 6 Ohm || Phase Plug Design : Radial || Exit Angle (5) : 9° Conical || NET Air Volume filled by HF Driver : 0.1 dm^3 (0.004 ft^3) || || Brand : FAITAL PRO || Model Number : HF102-8 | HF102 || UPC : 810130951451 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version : 00253937 || The FAITAL PRO HF102-8 is a high-frequency compression driver designed for professional audio applications. This driver is known for its high sensitivity and wide frequency range, making it suitable for high-quality professional audio systems where clarity and detail in the high-frequency range are crucial || || NOTES || Driver mounted on a 1"" 50° x 40° Horn || Ferrofluid added in air gap || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) 12 dB/oct or higher slope high-pass filter || (4) Averaged within the frequency range || (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn
