Mini pneumatic chamfering machine: This air chamfer tool adopts lightweight design, small and exquisite, smooth cutting, low vibration during cutting, and fast cutting of right angles and rounded corners. You can easily operate it with one hand. The chamfering machine kit is equipped with easily replaceable angle blades, which is easy and quick to use without complicated operation steps. The safety switch is used to prevent accidental touch and protect the user's safety at all times.
Multi-function: Multi-function chamfering, round holes, irregular edges, arcs, straight edges can be chamfered. Suitable for steel, aluminum, copper, acrylic, woodworking edge banding, etc. The C angle is angular when it is chamfered, and C angle is mostly used for metal chamfering; R angle is rounded when it is chamfered, and R angle is mostly used for woodworking chamfering. Note: stone, titanium alloy, glass material or hard materials after heat treatment and welding cannot be chamfered.
Adjustable speed and angle mini pneumatic chamfering machine: 5-speed button freely adjusts the air intake volume, precise processing saves gas, and can freely adjust the gear speed you need. Rotate the disc to adjust the chamfer size.
Stable operation, prevent blockage: This 45 degree pneumatic mini chamfering machine pneumatic tool has stable operation, waterproof and dustproof, stable performance and long service life. Designed with 1/4” air inlet with metal filter to prevent foreign matter from entering and clogging.
Specifications of 45° arc corner beveling trimming deburring machine: 1/4 inch metal filter, idling speed: 30000 RPM, air consumption 0.4/min. Idling speed 30000 RPM, air consumption 0.4/min, air inlet: 1/4 inch PT. Trimming ability: chamfer: C0.1-C1.5, arc angle: R0.1-R1.5, adjustable depth: 0.1mm-0.9mm. (See pictures for details)

وصف

Description:
Product name: Mini Pneumatic Chamfering Machin

Specifications:
Material:
Mainly made of plastic steel material

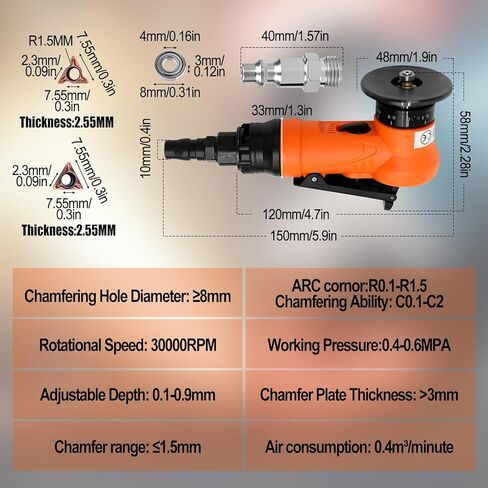

Parameters:
Chamfering Hole Diameter≥8mm
Chamfering Ability: C0.1-C2 (C angle)/ARC cormor:R0.1-R1.5 (R angle)
Rotational Speed: 30000RPM
Working Pressure:0.4-0.6MPA
Adjustable Depth: 0.1-0.9mm
Chamfer Plate Thickness: >3mm
Chamfer range: ≤1.5mm
Air consumption: 0.4m³/minute

Available range:
Minimum aperture≥8mm, minimum aperture greater than or equal to 8mm
Minimum radius≥4mm, minimum radius greater than or equal to 4mm
Minimum depth≥5mm, minimum depth greater than or equal to 5mm
Thinnest thickness≥3mm, thinnest thickness greater than or equal to 3mm

Package includes:

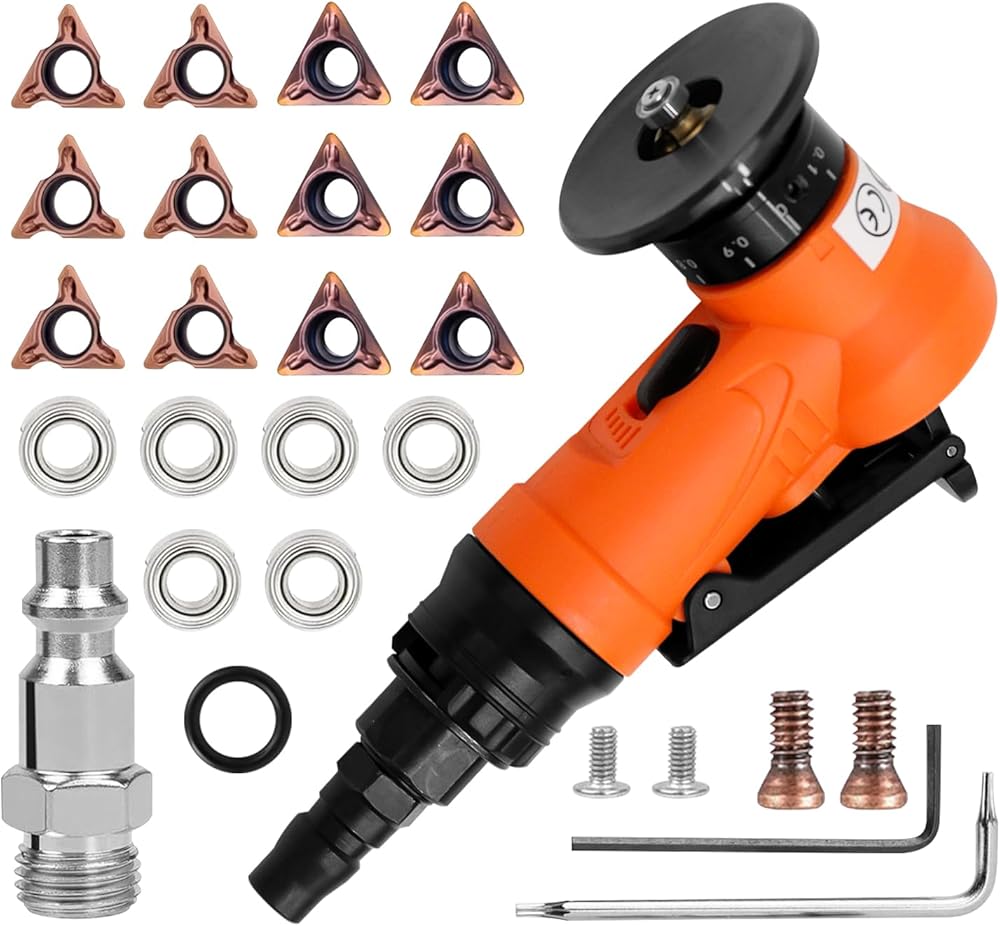

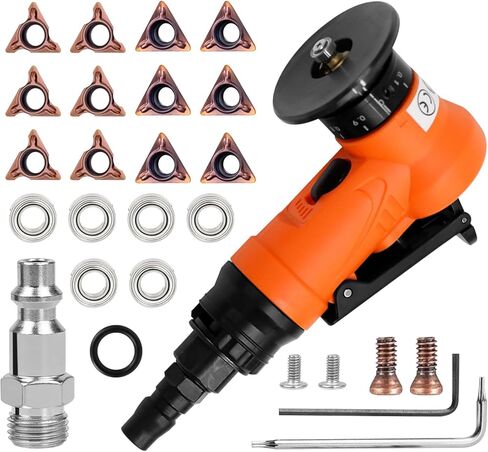

1* mini orange chamfering machine, 6* C angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* R angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* Rangle angle blades, 6* C angle blades, 6* bearings, 1*connector

Notice:
Drop 3.4 drops of pneumatic tool oil before each use to clean the movement and lubricate, making the machine life longer
Blind spot size = radius of the guide wheel
R diameter greater than the radius of the guide wheel can be chamfered
R diameter greater than the radius of the guide wheel can be chamfered
lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm.
R-diameter less than the radius of the guide wheel is a blind spot
lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm
