Features:
Visual input (Preview)
NDI|HX streams output, HDMI video out, or USB output for recording
H.264/H.265 Encode & Decode, up to 1920x1080P_H.265@60fps Encode. And H.265 Main Profile, Level 4.1 Decode
HDMI-embedded & Line-in Audio input
AAC, MP3, MP2, PCMA audio encoding
MP4/TS/FLV/MKV/MOV format recording
Bitrate is adjustable 500kbit/s ~ 20Mbit/s
Support NDI|HX2 based on NDI 5.x
Support inserting Logo, Text, Mosaics and Time Display to the video
Support output displayed video resolution and frame rate setting (max 1920x1080P@60hz)
Specification:
Video Input: 1x HDMI 1.4, NDI|HX2 streams, 1x USB2.0 from UVC Camera
Audio Input: HDMI-embedded, Line-in (Jack 3.5mm)

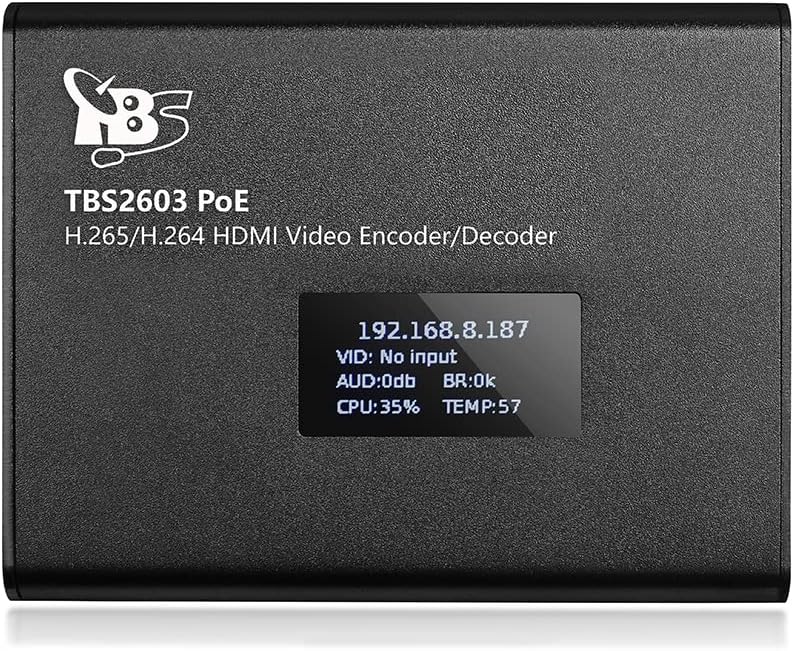

OLED display: IP, input video resolution, CPU utilization, Core temperature
Encode
Video Input Resolution: 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576;640x480, and etc.
Video Output Resolution: 1920x1080P@60fps; 1680x1050; 1280x720; 1024x576; 850x480; 720x576; 720x480; 640x480; 480x360; 360x240; auto; customized and etc.
Video Encode: H264 base line, H264 Main, H264 High, H265 Main
Video Bit Rate: 0.5Mbps-20Mbps
Bit Rate Control: CBR, VBR, AVBR, FIXQP
Protocol: NDI|HX2 HTTP, HLS(M3U8), RTSP, SRT, RTP/ UDP Unicast/ Multicast, RTMP(RTMPS)
Audio Encode: AAC, MP3, MPEG2, PCMA
Audio Sampling rate: 16K, 32K, 44.1K, 48K
Audio Sampling precision: 16 bit
Audio Bit Rate: 32Kb/s ~ 256Kb/s
Network Stream IN
Video: H264 Baseline, Main, High Level 4.2; H265 Main, Level 4.1
Audio: MPEG2, MP3, AAC
Protocol: NDI|HX stream, HTTP, RTSP, RTP/UDP, SRT, RTMP (pull)
Decode
Video code: H.265 Main Profile, Level 4.1；H.264 Baseline/Main/High Profile Level 4.2
Audio code: Mpeg2, MP3, AAC
Source: HDMI in decode; Network stream decode, NDI decode
Record
USB record: To USB flash disk or USB hard disk
Format: *.MP4; *.TS, *.FLV, *.MKV, *.MOV
