SEQURE M10-25Q GPS Module NEMA & UBLOX Dual Protocol with QMC5883L Compass For FPV Racing Drones Fixed Wing UAV

Specification:
Model: M10-25Q GPS
Chip: M10
Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Power supply: 5V
Size: 25*25*8mm
Weight: 12.2g
Interface: SH1.0-6P connector, PCB pad
Antenna: Ceramic Antenna
Receiving channels: 72 search channels
Baud rate: 115200
Output protocol: NMEA, UBLOX dual protocol, I2C(Mag)
Compass: QMC5883L
Output frequency: 1Hz-10Hz, default 10Hz
Speed accuracy: 0.05m/s
Horizontal positioning accuracy: 2D ACC1.5m（Outdoor）
Receive sensitivity: Trace-162dBm, capture-160dBm
Working temperature: -40℃ ～ + 85℃
Storage temperature: -40℃ ～ + 105℃

Features:
M10-25Q GPS is recommended for INAV firmware.
Adopts 10th generation chip, NMEA & UBLOX dual output protocol, and max 10Hz output frequency, lower power consumption, and fast positioning.

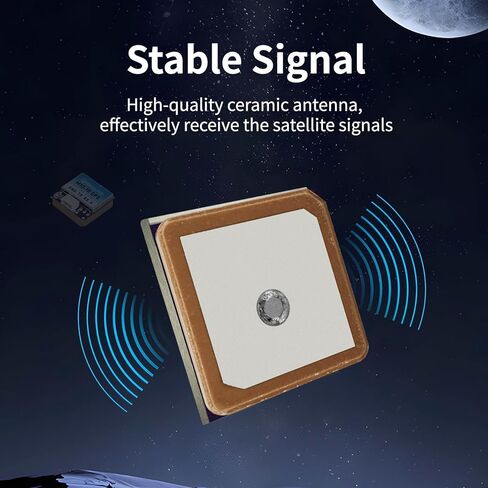

High-quality ceramic antenna with strong performance and effective reception of satellite signals.
Miniaturized and multi-specification design, easy to install, suitable for drones of various sizes.

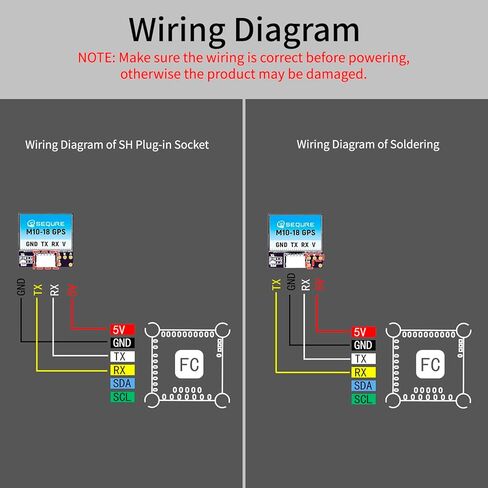

2 connection methods: direct plug-in and soldering pad, with strong compatibility.
