Features:

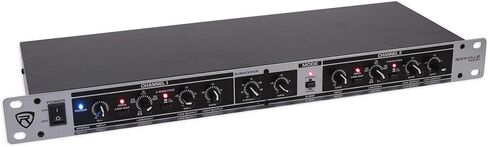

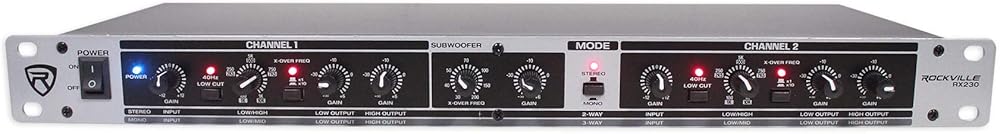

Rockville RX230 2-way Stereo / 3-way Mono rack mountable crossover

Ability to mix 2 channels output

24dB/Octave filters

Mute switches

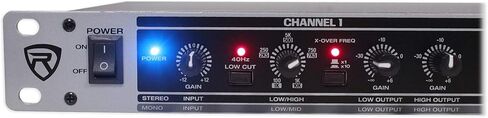

Channel Gain Control: 0 to +12 dB

Low Frequency Level Control: -∞ to +6 dB

High Frequency Level Control: -∞ to +6 dB

Low Frequency to High Frequency crossover: 100Hz to 1 Khz x10 range: Changes

Low Frequency to Mid Frequency from (100 Hz to 1 kHz) to (1kHz to 10 kHz)

Switchable 2-way stereo or 3-way mono operation

Subwoofer out

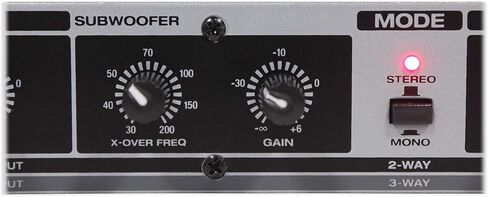

Subwoofer X-Over Freq ( 30Hz – 200Hz ) adjustable

Subwoofer Gain -6 to +6 dB
Specifications:
Each output is -3 dB at the selected crossover frequency value. Outputs are
essentially flat within their relative passbands.

Distortion: Less than 0.02% THD @ +4 dBu,@ 1 kHz

Hum and Noise: Crossover controls set @ 1 kHz, all level controls set at 0 dB;
22 Hz to 22 kHz, unweighted gain @ 0dB(ref +4dBu) - 90dB

Low Frequency Output: -86 dBu below 80 dB

High Frequency Output: -84 dBu below -78 dB

Maximum Input Level: +14 dBu, (channel gain @ 0 dB input level controls set at 0
dB) +22 dBu

Maximum Output Level: +22 dBu, unbalanced +28 dBu, balanced

Input Impedance: 10k ohms unbalanced

Dimensions: 19 x 4.85 x 1.8 inches

Gross weight: 4.18 Lbs

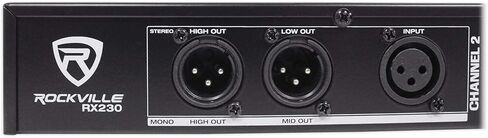

Connectors:

Inputs: XLR Balanced

Outputs: XLR Balanced

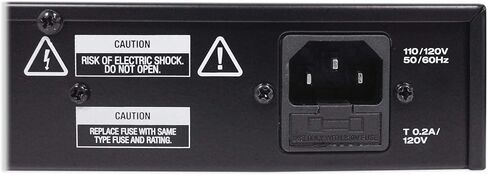

Power Requirements: 120V AC, 50/60 Hz, 20 watts

110-120V voltage
