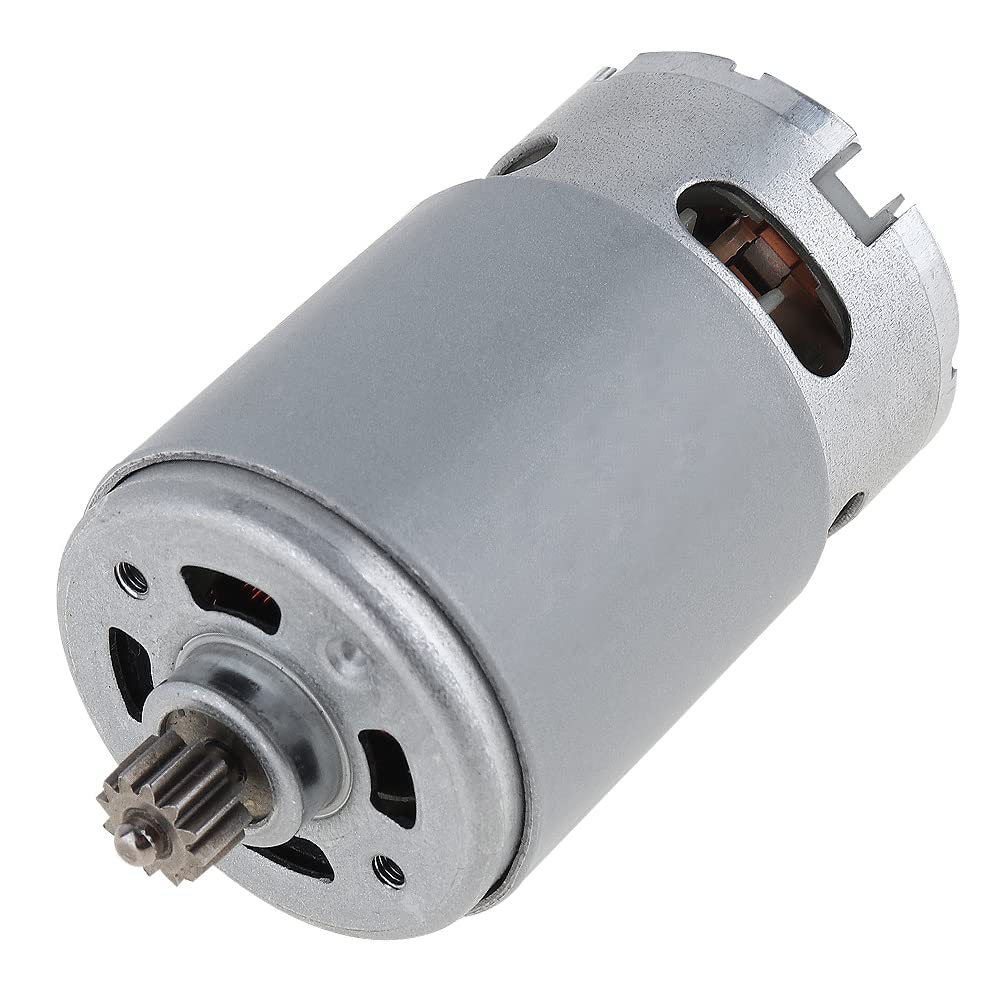

RS550 21V 19500 RPM DC Motor with Two-Speed 12 Teeth and High Torque Gear Box for Electric Drill/Screwdriver

Special Features

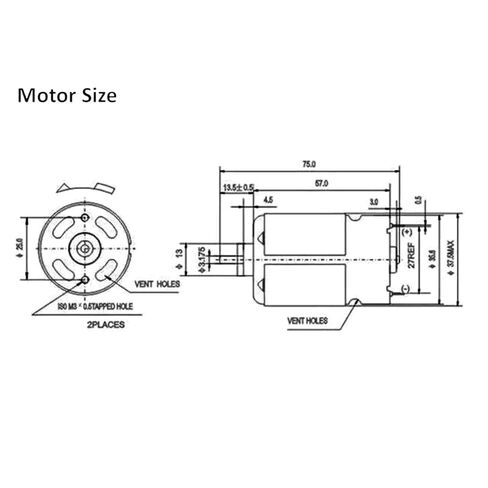

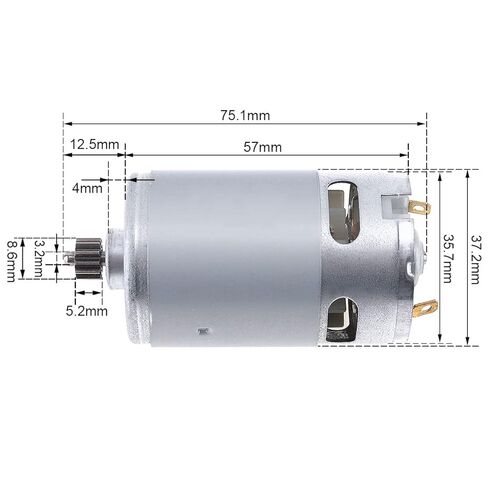

Motor length: 75.1mm; Motor diameter: 37.2mm; Motor shaft length: 12mm; Motor shaft diameter: 3.2mm; Motor gear diameter: 8.6mm; Motor gear thickness: 5.2mm; Motor installation hole distance: 25mm
Voltage: 21V; No load Speed: 400 - 19500 rpm; Torque: 1 N.m; Output Power: 90W

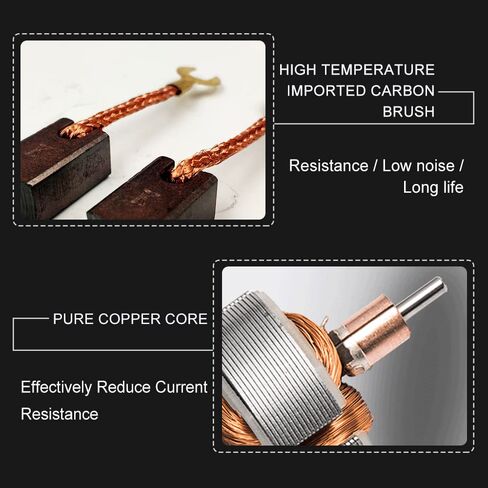

Front and rear double ball bearings；High power, low noise; Long life
The front can be fixed with 2 M4 screws.
High-speed high torque DC motor, electric drill machine tools.

Description

Model Number: RS550
Voltage: 21V
No load Speed: 400 - 19500 rpm
Torque: 1 N.m
Output Power: 90W
Type: Micro Motor
Usage: Home Appliance
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion proof
Motor Length: 75.1mm
Motor Diameter: 37.2mm
Motor Shaft Length: 12mm
Motor Shaft Diameter: 3.2mm
Motor Gear Diameter: 8.6mm
Motor Gear Thickness: 5.2mm
Motor Installation Hole Distance: 25mm
Place of Application: Electric Drill / Screwdriver
Product Weight : 228 G / 8.04 Ounces
Product Dimensions (L*W*H) : 70*36*36 MM / 2.76*1.42*1.42 Inches

Package Include:

1 x 21V Two-speed 12 Teeth DC Motor
