مميزات خاصة

✔ LONG SERVICE LIFE -- Long life, can withstand 100,000 full load on and off under AC-7a load category. Suitable for most building electrical control areas to create a super quiet environment
✔ ULTRA-QUIET WORKING -- Ultra-quiet, eliminates the obvious impact of the traditional contactor at the moment of pick-up, and eliminates the low-frequency hum in the contactor operation
✔ HOUSEHOLD CONTACTOR -- Mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V, rated working current to 100A, control low load of household appliances and similar applications
✔ ULTRA-ENERGY-SAVING -- In the working state, the contactor needs to maintain a long-term energization to keep the coils in , which consumes a lot of electric energy in the process
✔ MOTOR CONTACTORS -- The contactor optimizes the electromagnetic system, greatly reducing the power of the contactor. It can be used to control the load of the household motor, and the control power should be

وصف

Specification:
Item Type: Household AC Contactor
Rated Current: In(A) 25A（AC-7a), 9A（AC-7b）
Conventional Heating Current: Ith(A) 25A
Rated Insulation Voltage: Ui(V) 500VAC
Rated Operating Voltage: Ue(V) 250VAC
Electrical Life (times): 1x100000
Mechanical Life (times): 1x1000000
Maximum Number of Switching Operations: /1h 30
Rated Control Power Supply Voltage: Us(V) AC24V
Optional : 2NO, 2NC, 1NO1NC

Rated Working System:
a) Eight-hour work system
This working system is the agreed air heating current Ith of the basic working system contactor.
b) Intermittent cycle work
The rated operating frequency of the contactor under this working system is 30 times/h, and the load factor is 40%.

Action (operation) conditions:
When the ambient air temperature is in the range of -5℃ to +60℃, the contactor is attracted to the rated control power supply voltage Us, so that the contactor should be in the range of (85% ~ 110%) Us. It can be reliably closed under any voltage; its release voltage is (20%~75%) Us.

Package List:
1 x Household AC Contactor

مرحبًا،

بحث

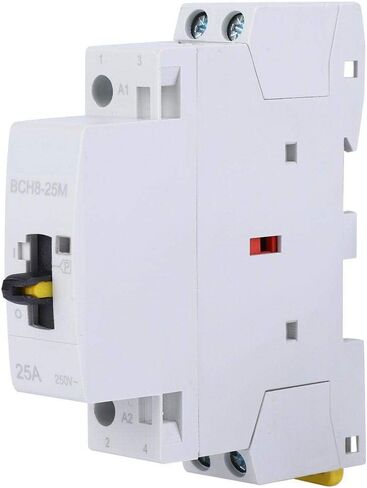

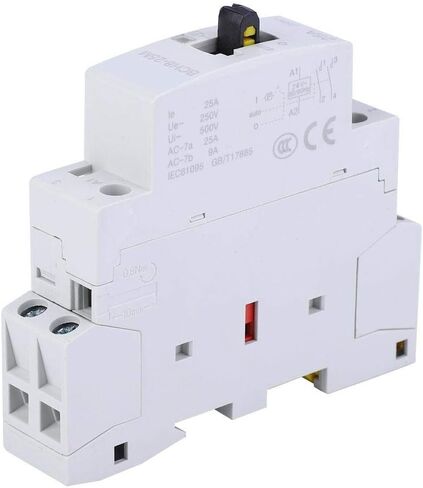

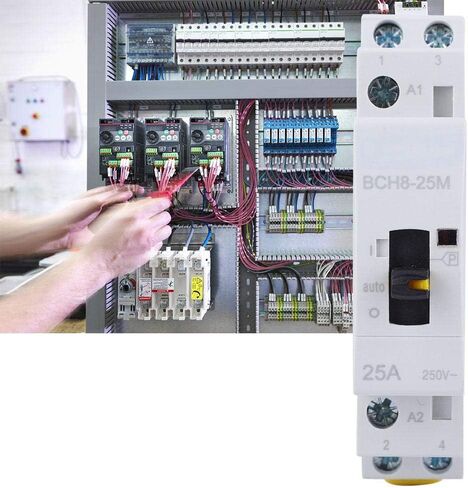

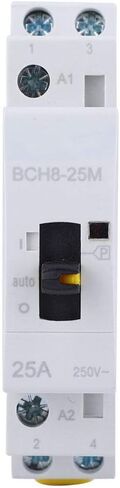

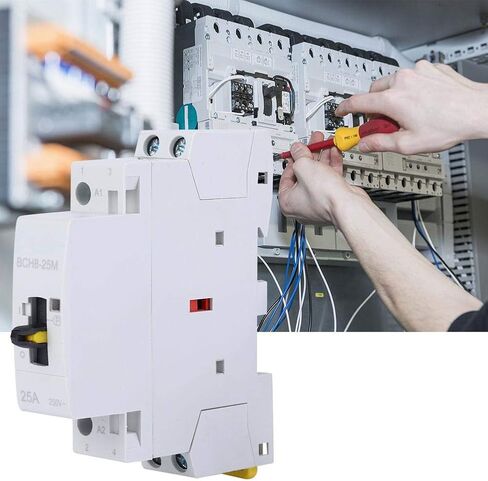

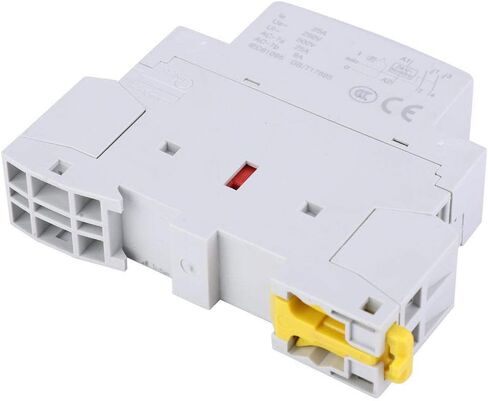

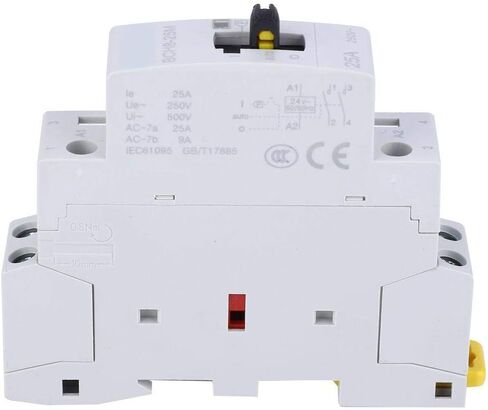

قواطع تيار متردد منزلية BCH8-25M 2P25A 24V قواطع محرك عالمية مع وظيفة يدوية (2NO)
